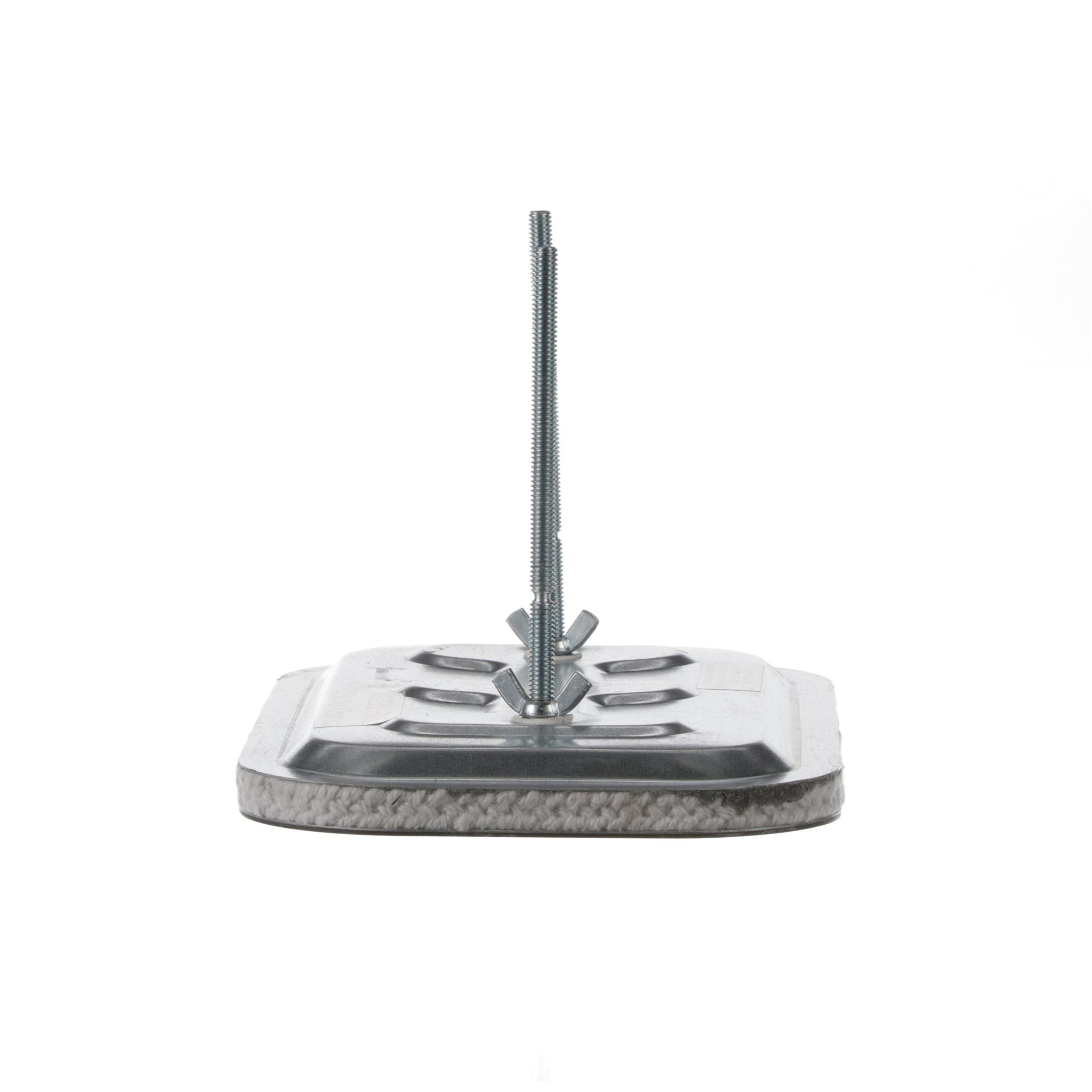

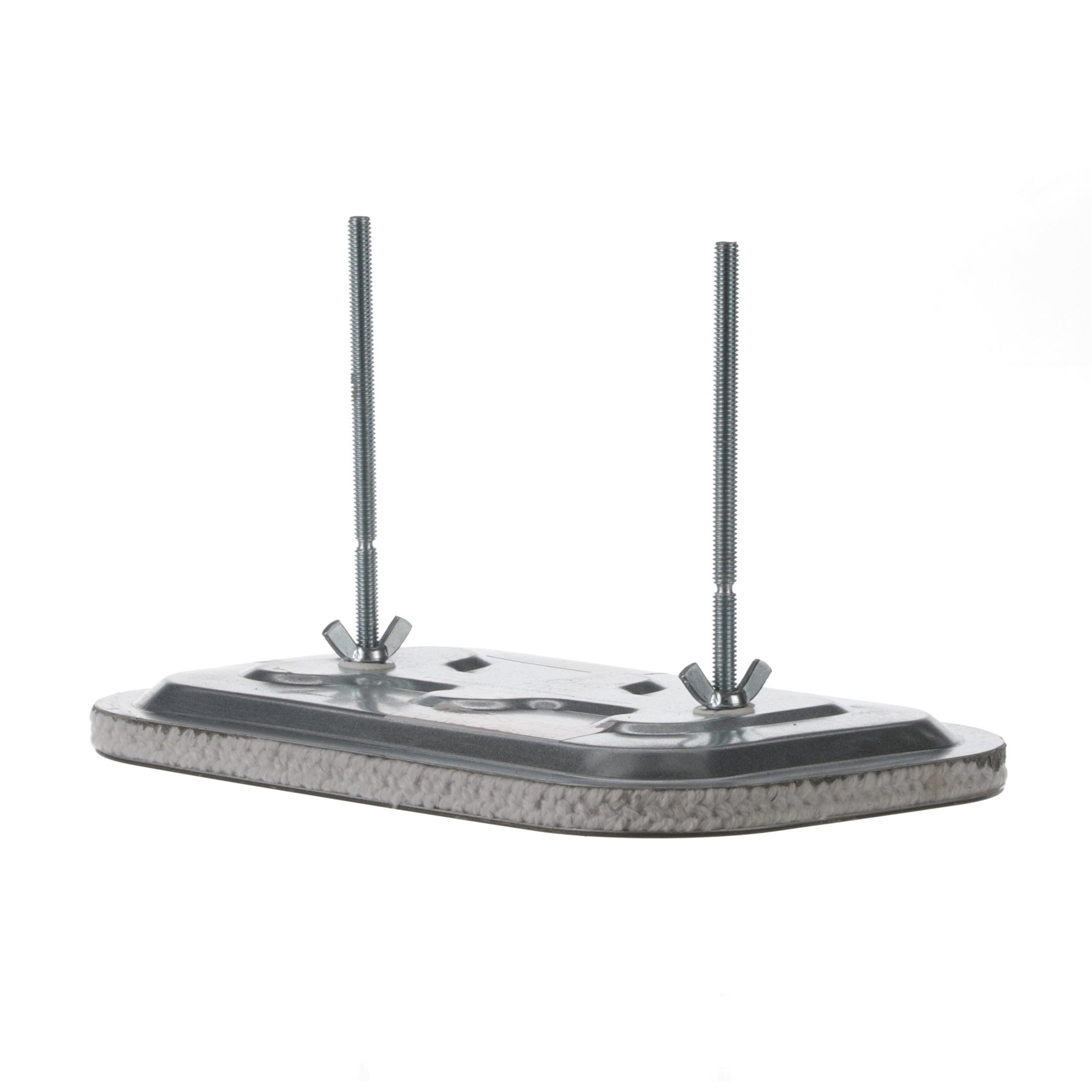

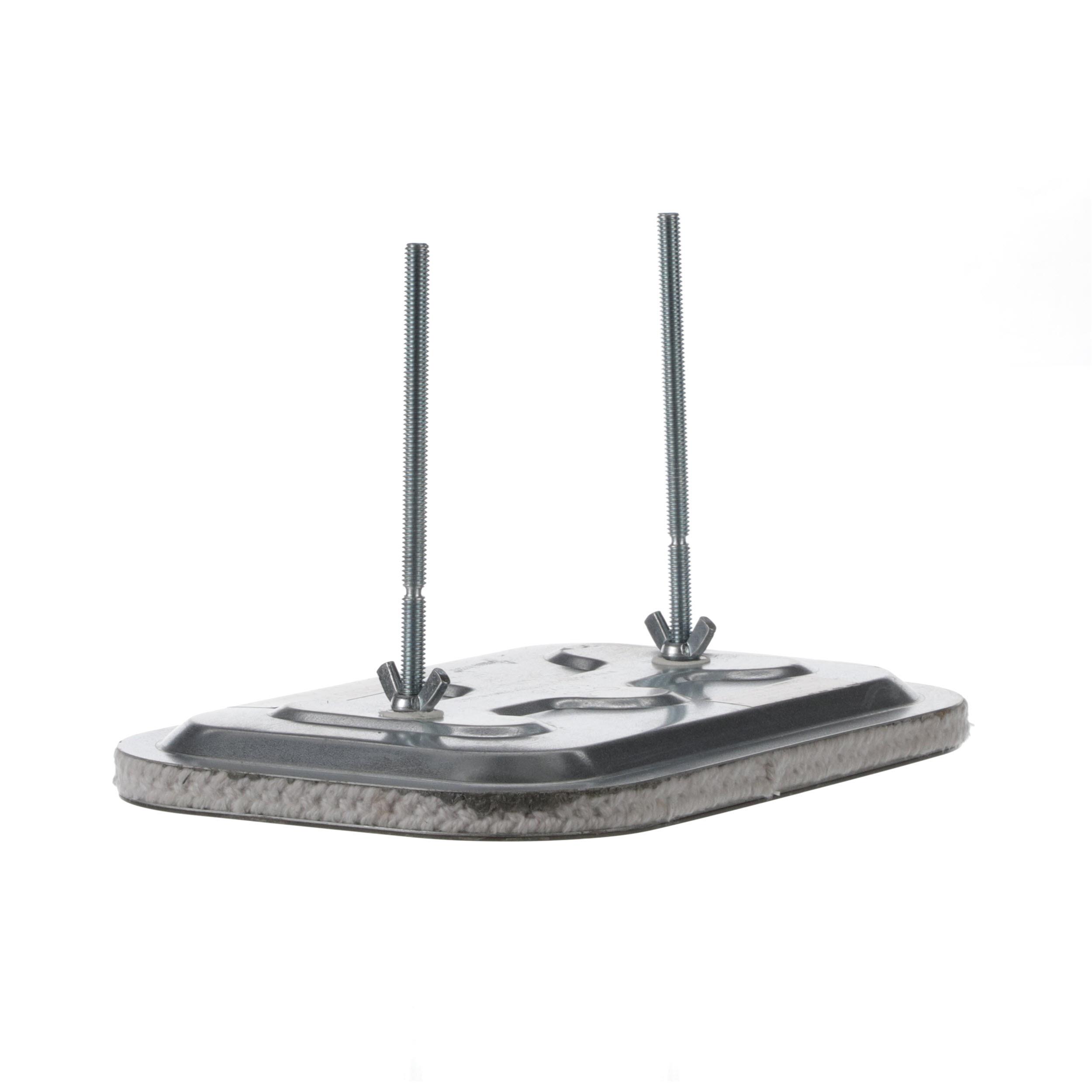

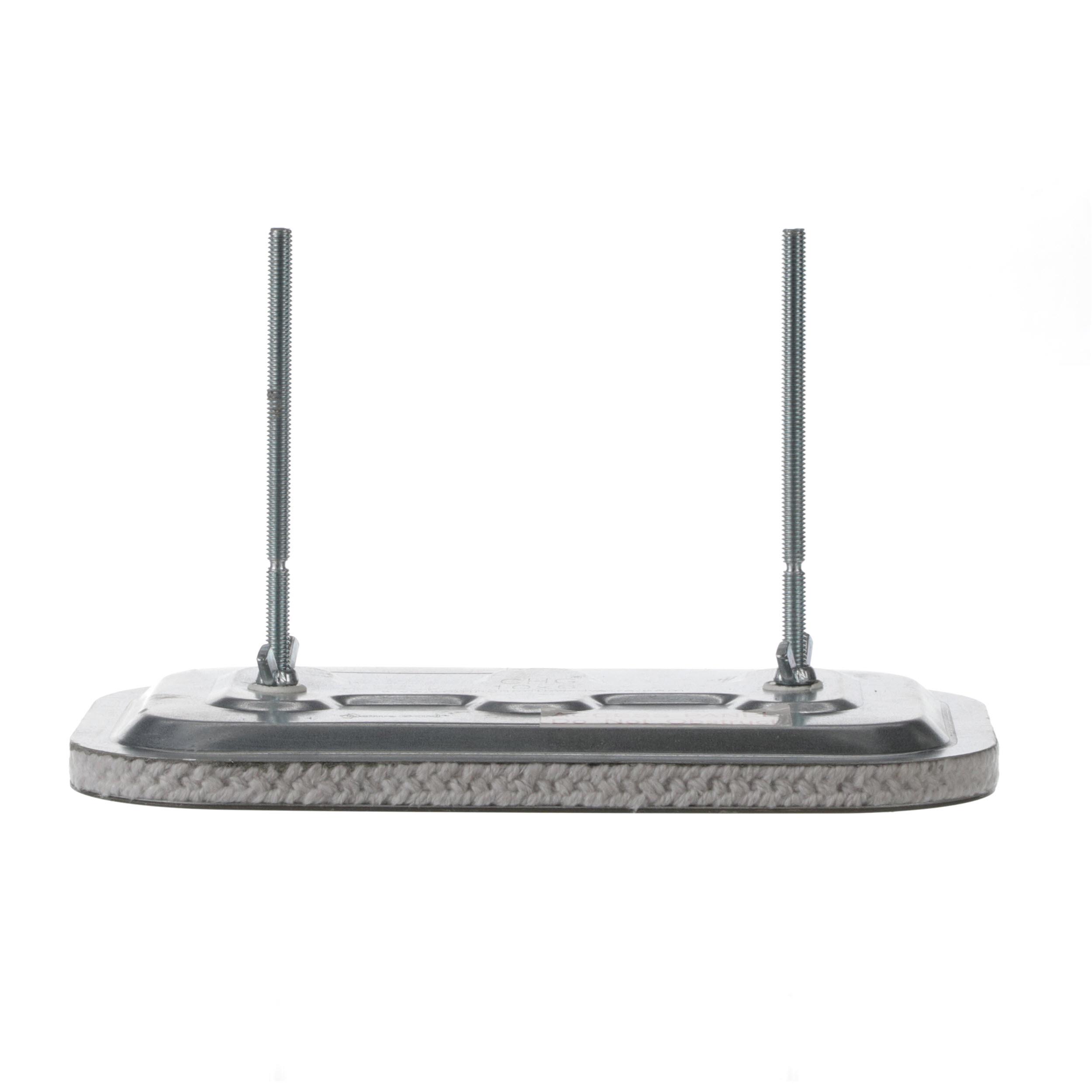

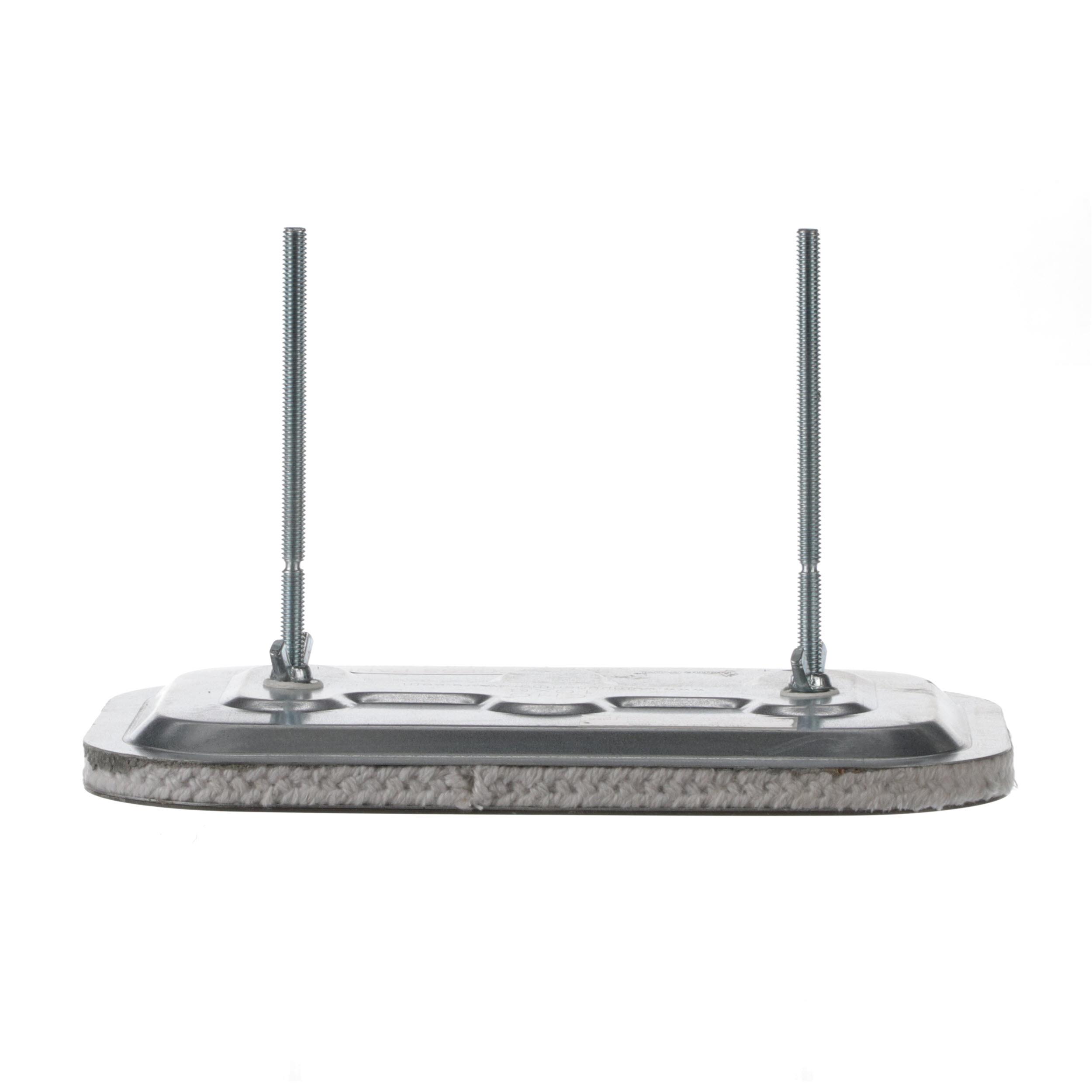

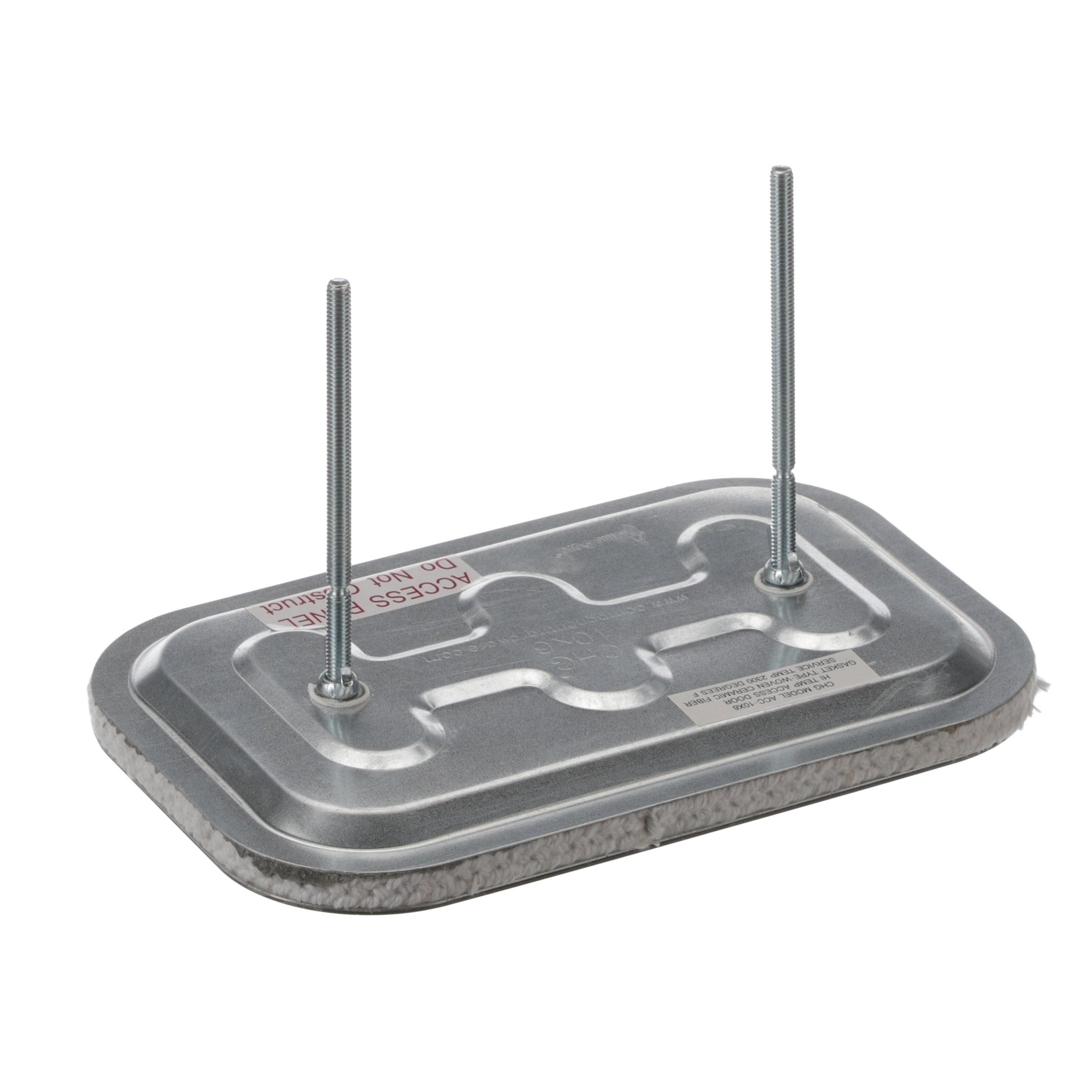

10" x 6" High Temperature Access Door

Brand: Flame Gard

10" x 6" High Temperature Access Door Leak resistant and consists of two layers of stamped, hot dipped galvanized steel and one 16 g. black iron backing plate for ultimate safety and durability Hi-Temperature Ceramic Fiber Gasket (2300°F, 1260°C max) is permanently bonded to the outside panel of the access door to eliminate leakage Zinc plated conical springs are installed, between inner and outer plates, to facilitate opening Zinc coated wing nuts are easily turned by hand No measuring needed - self-adhesive mounting template provided Easy to install 6" (152mm) break-away mounting studs permit installations with fire wrap insulation. Studs may be broken at 2" (102mm) for standard installations. Meets NFPA #96 Standards

Model No: ACC-10X6

Item No.: 1001944
