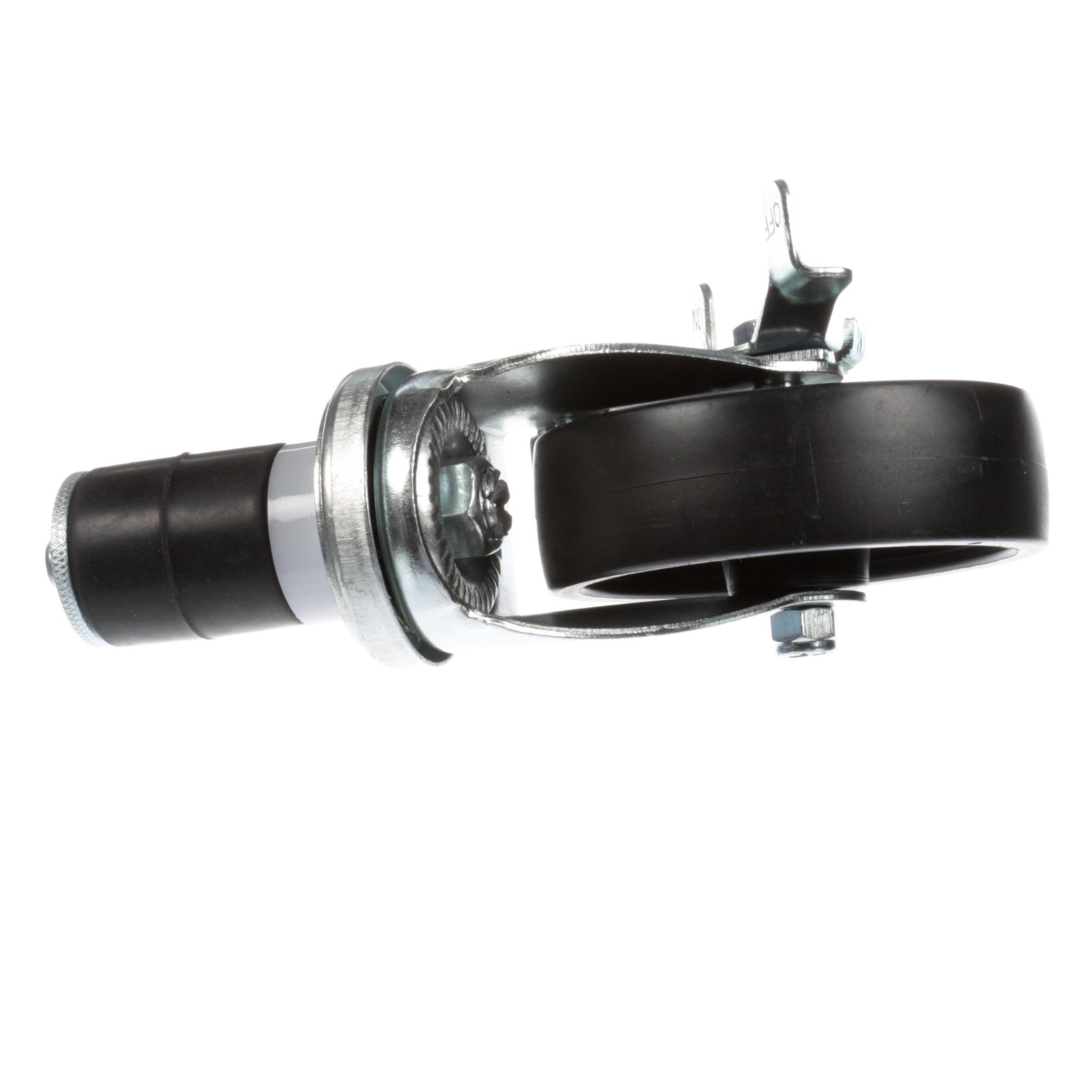

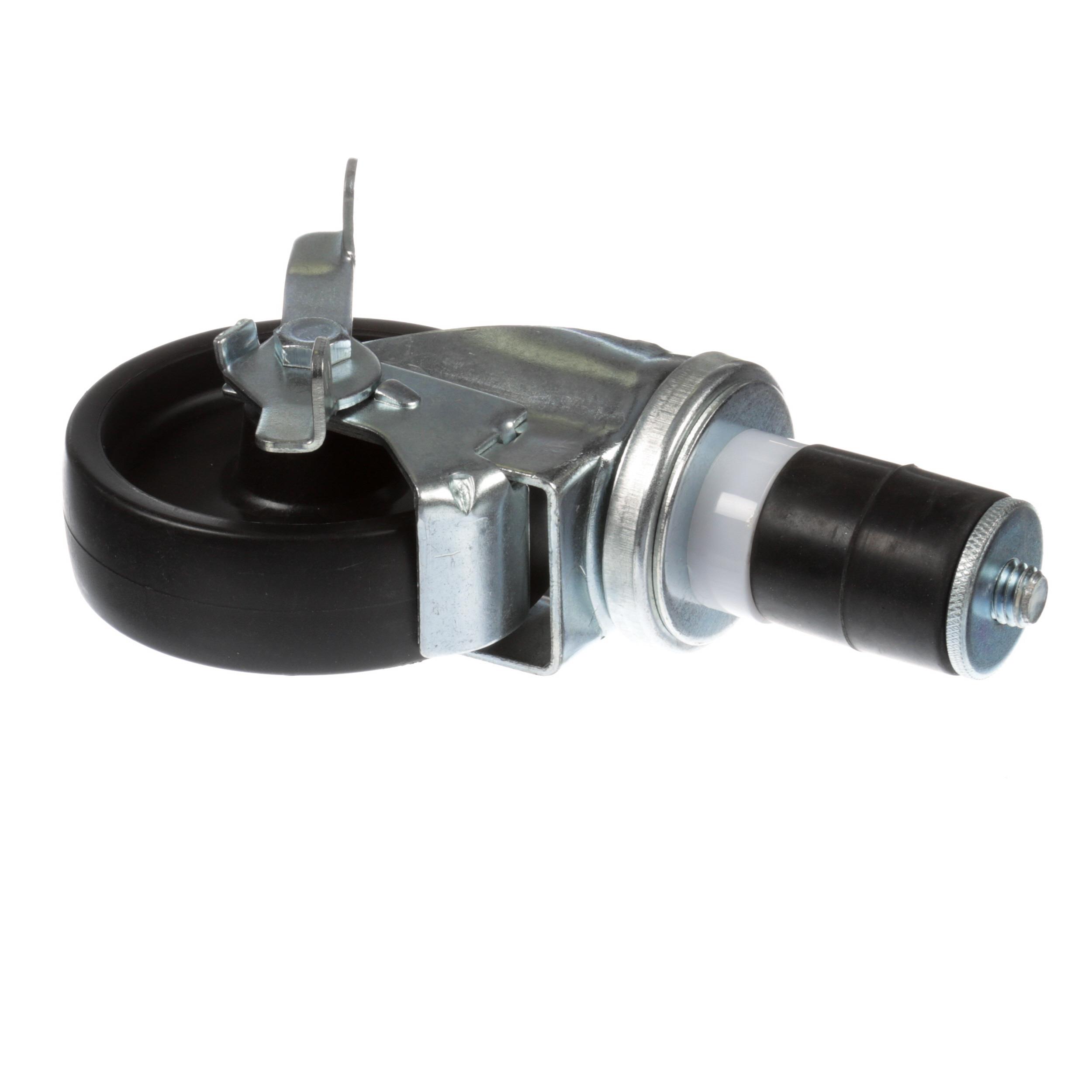

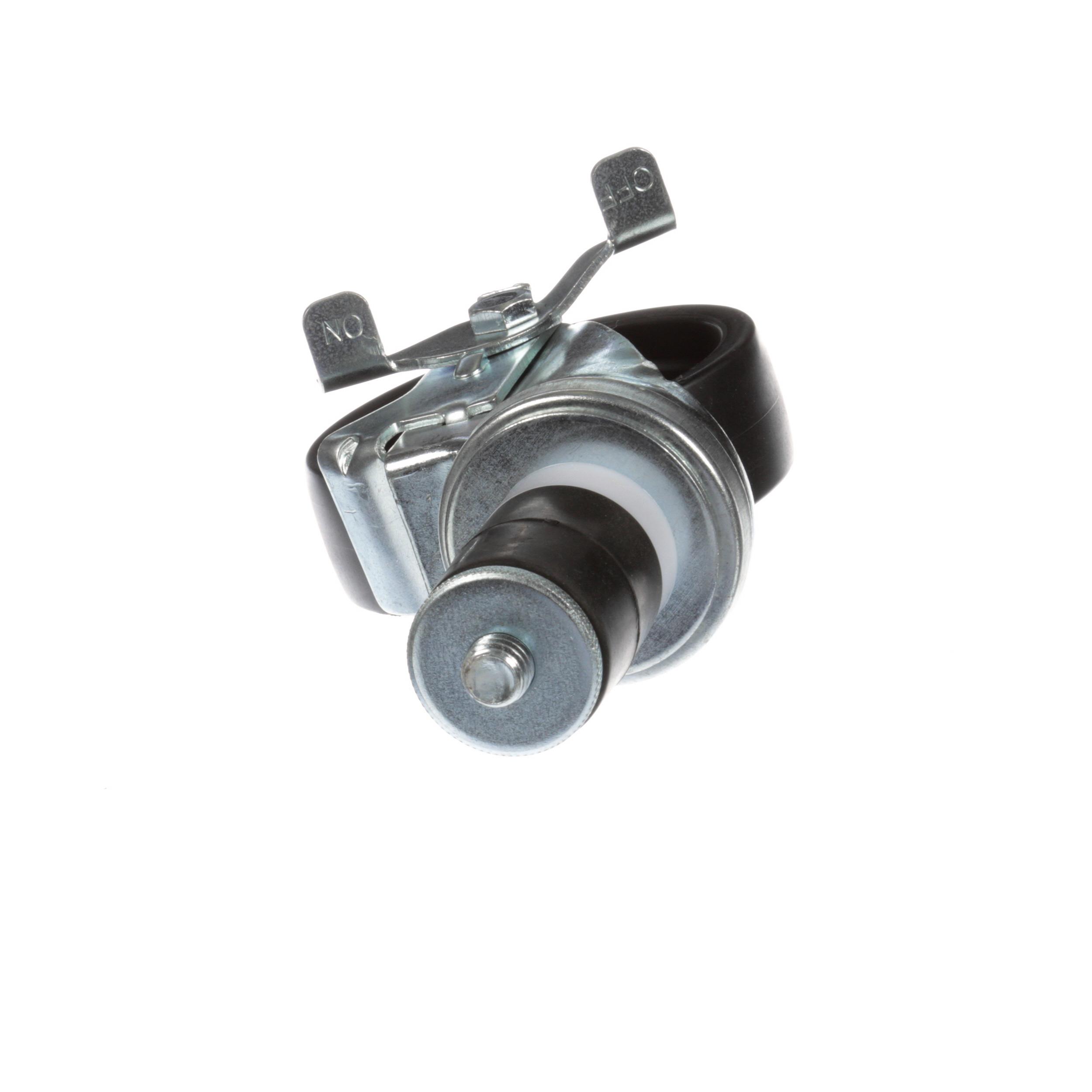

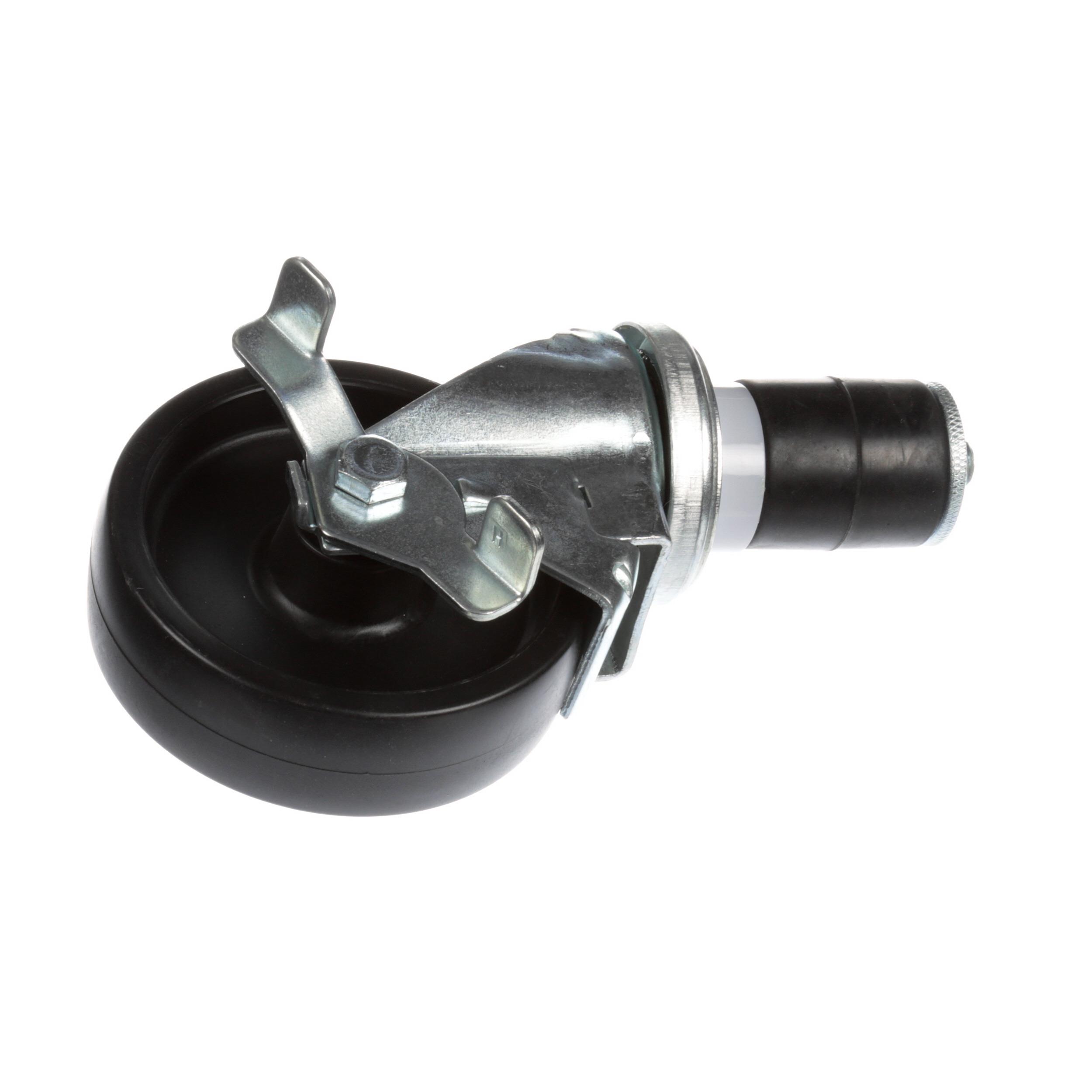

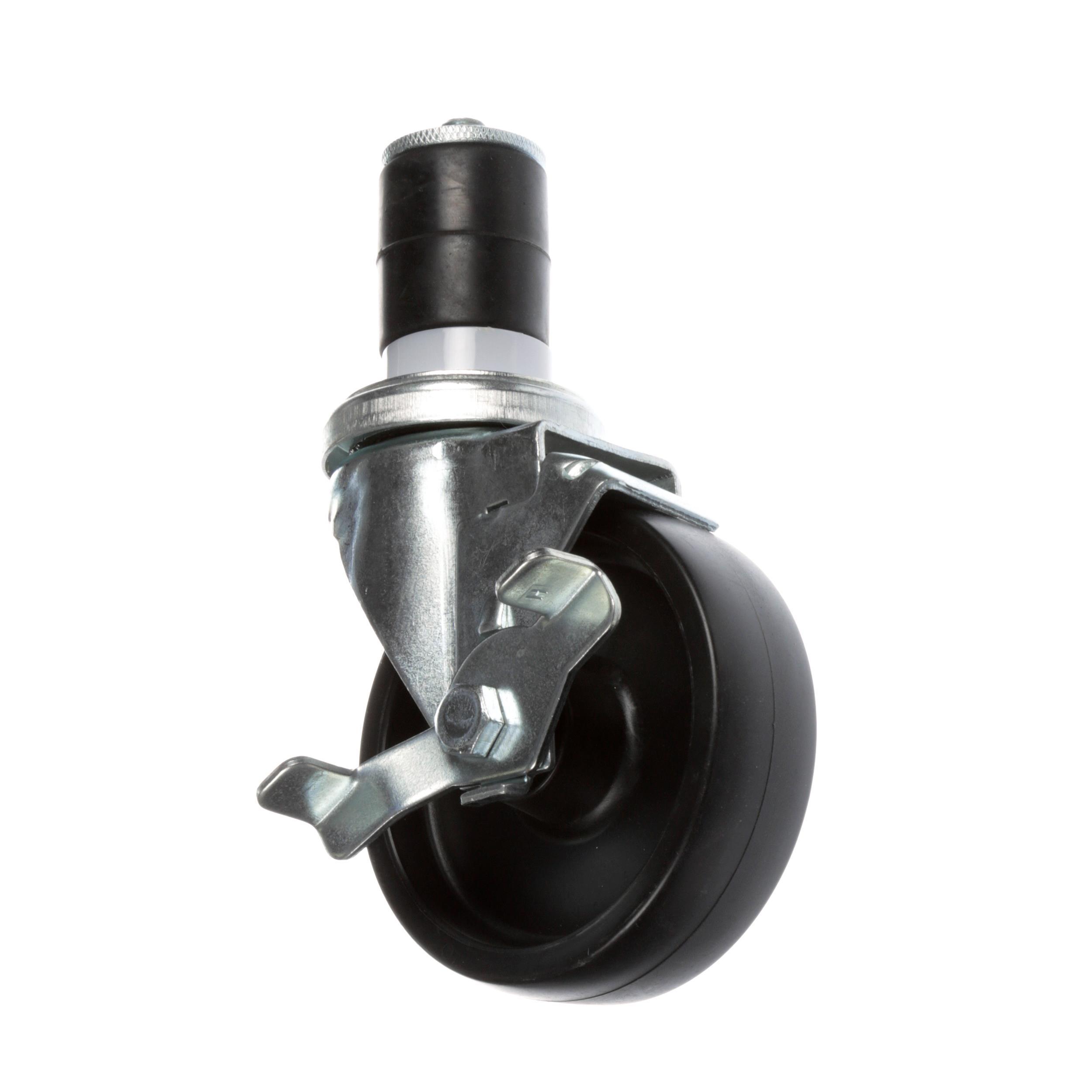

    Medium Duty 1-5/8" Expanding Stem Caster With 3" Black Polyolefin Wheel With Brake

    • Medium Duty 1-5/8" Expanding Stem Caster With 3" Black Polyolefin Wheel With Brake
    • Zinc plated steel yoke construction
    • 1-1/4" (32mm) tread width
    • 3" (76mm) OD black polyolefin wheel
    • Furnished with Side Brake
    • Load capacity 250 lbs. (110kg) per wheel
    • 4" (102mm) load height
    • 2-7/8" (73mm) swivel radius
    • Rubber expanding swivel stem for 1-5/8" (40mm) OD round or square tubing
    Model No: CMS4-3BBN
    Item No.: 1002934

    $0.00
    i h
    Products specifications
    LOAD RATING 250 LBS
    CASTER DUTY MEDIUM
    FINISH / COLOR ZINC PLATED
    MOUNTING TYPE EXPANDING STEM
    THREAD / PLATE / STEM SIZE 001.625
    WHEEL DIAMETER 3 INCHES
    WHEEL MATERIAL BLACK POLYOLEFIN
    BRAKE TYPE SIDE
    BEARING TYPE NONE
    DIAMETER 3 INCHES
    MEASUREMENT TYPE IMPERIAL
    PRIMARY MATERIAL STEEL
    SECONDARY MATERIAL POLYOLEFIN
