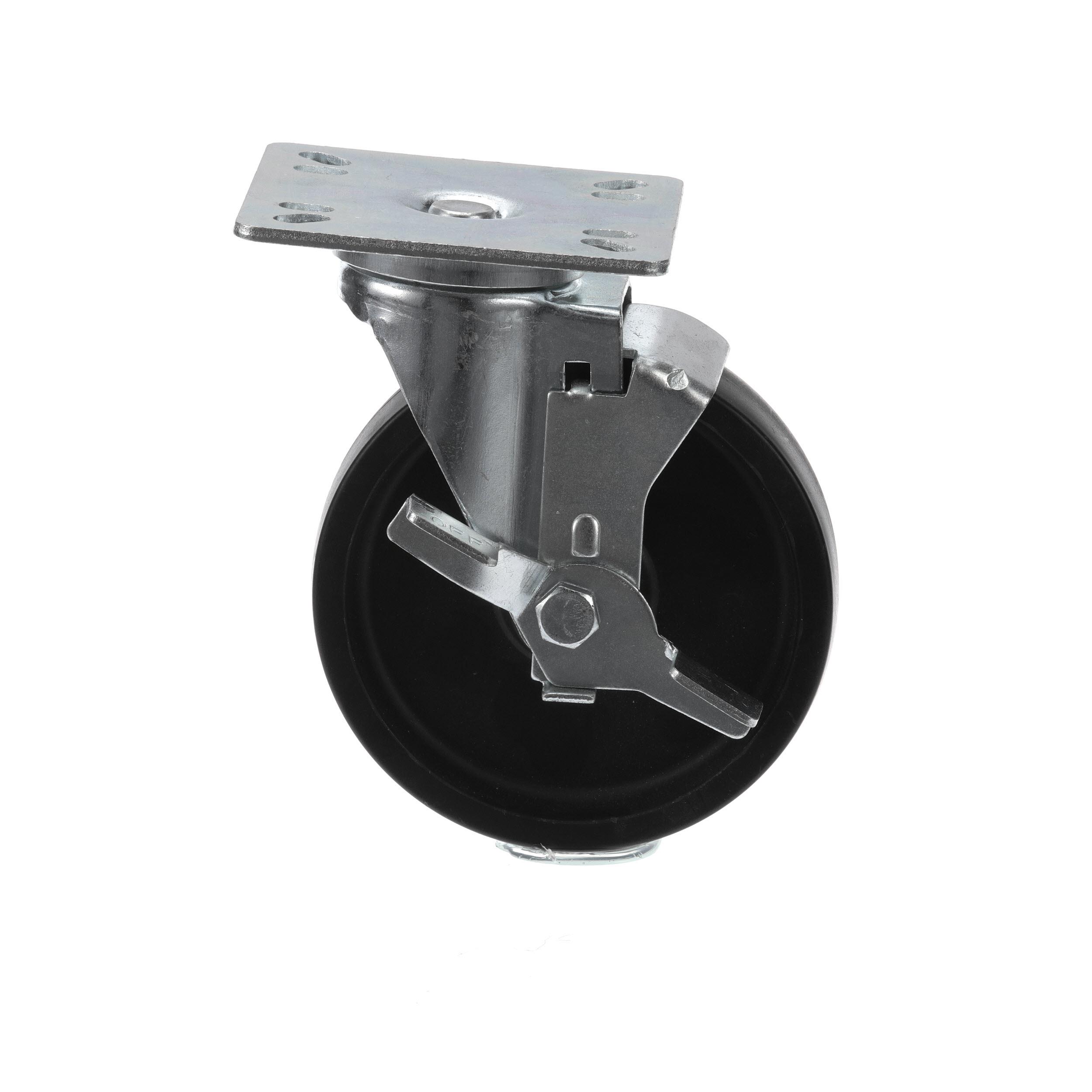

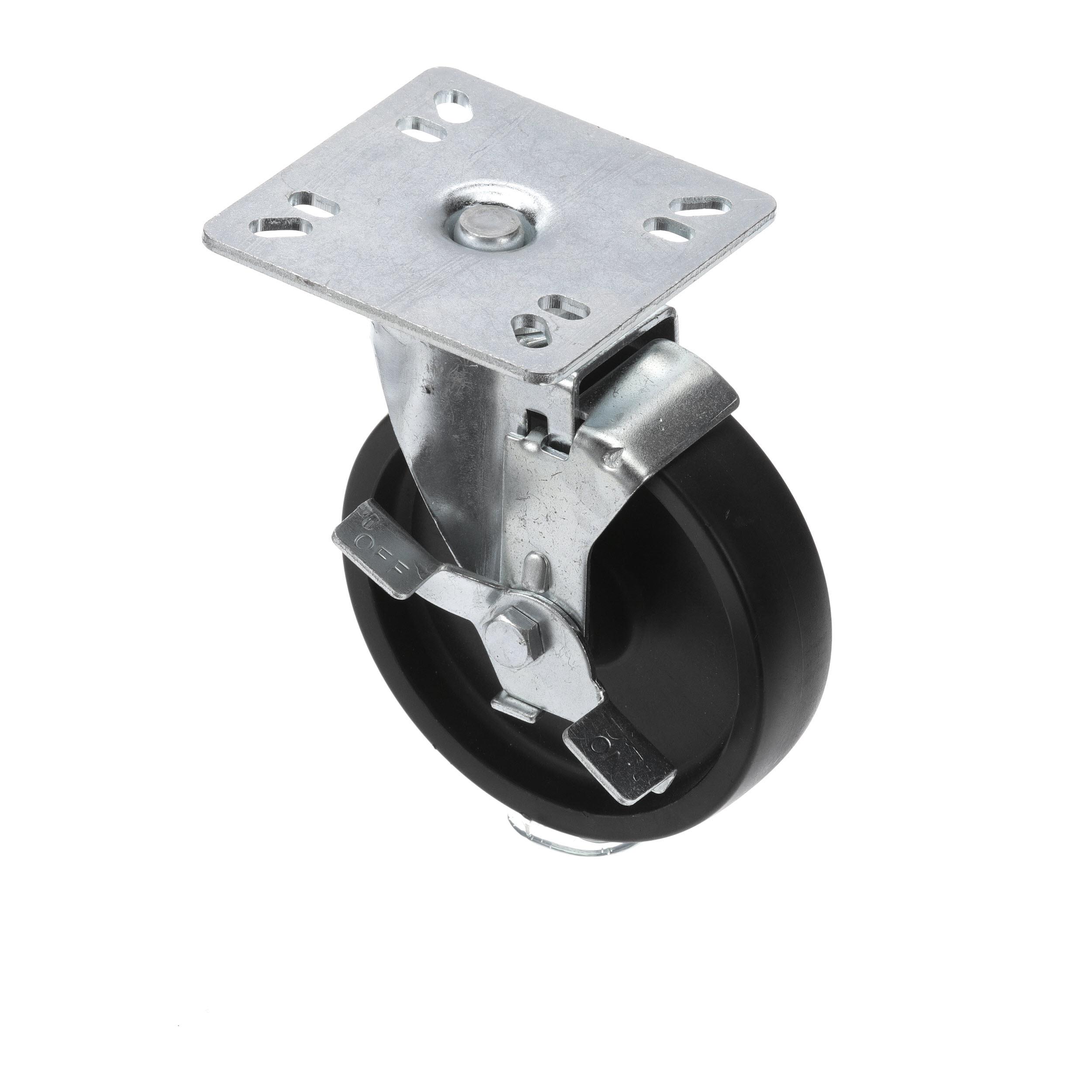

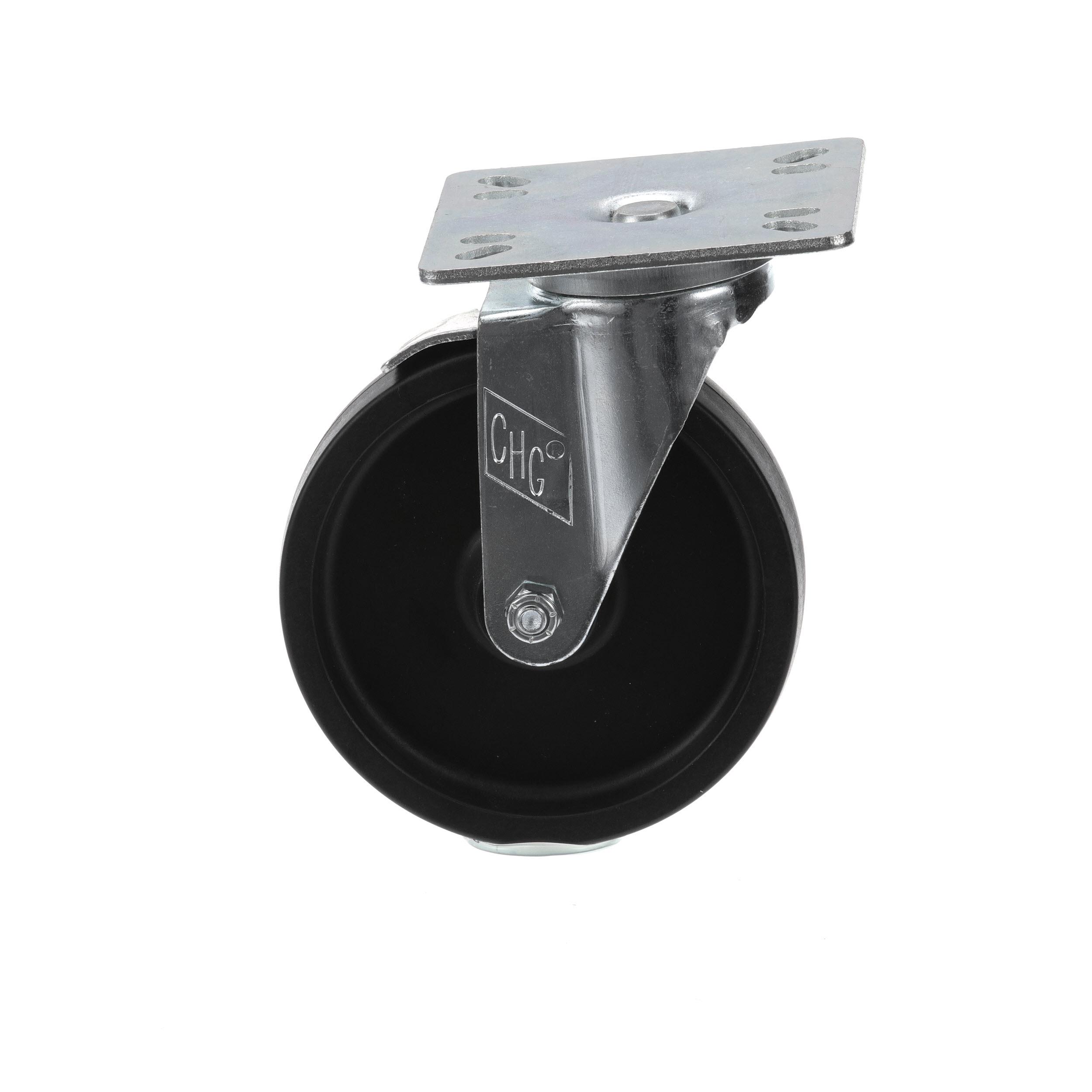

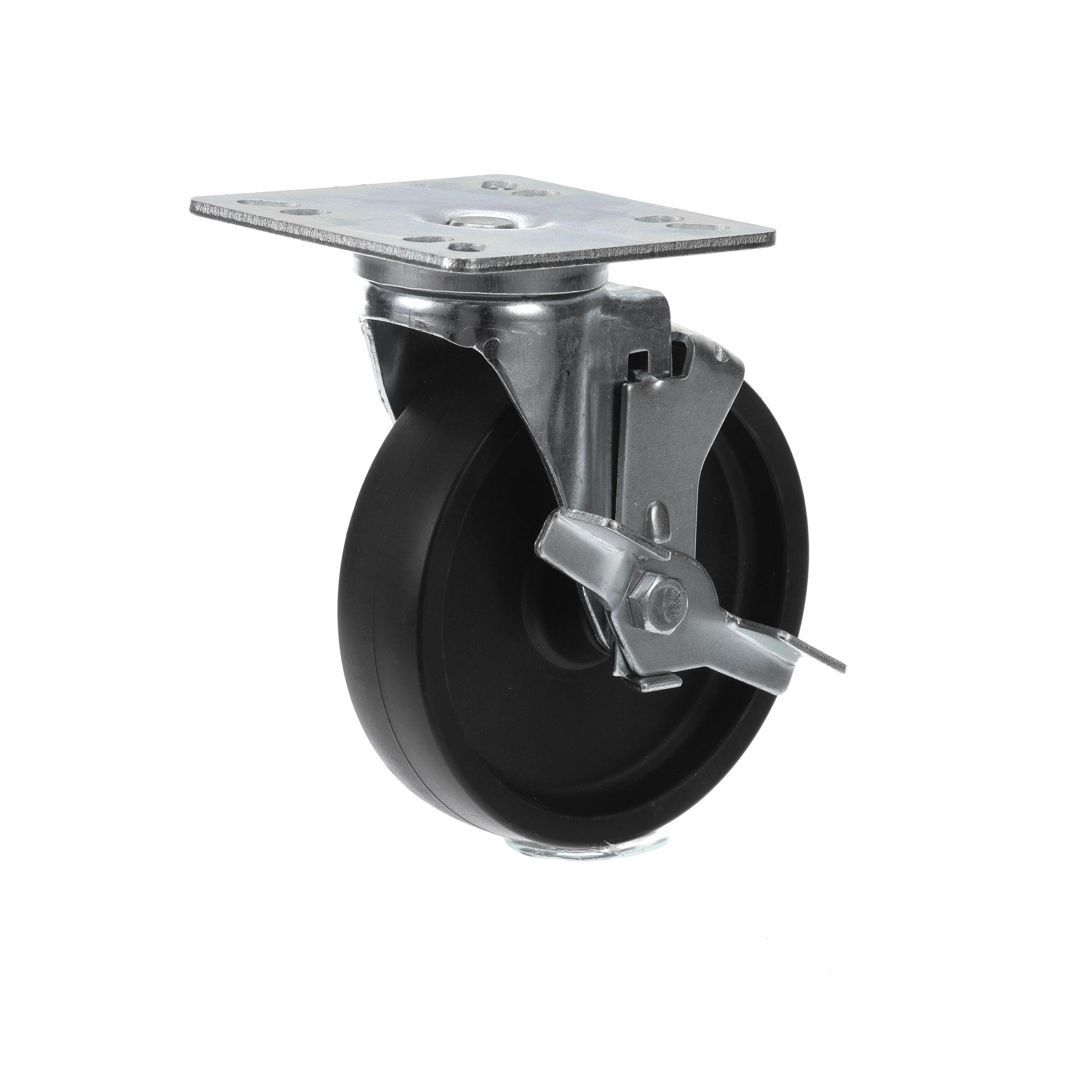

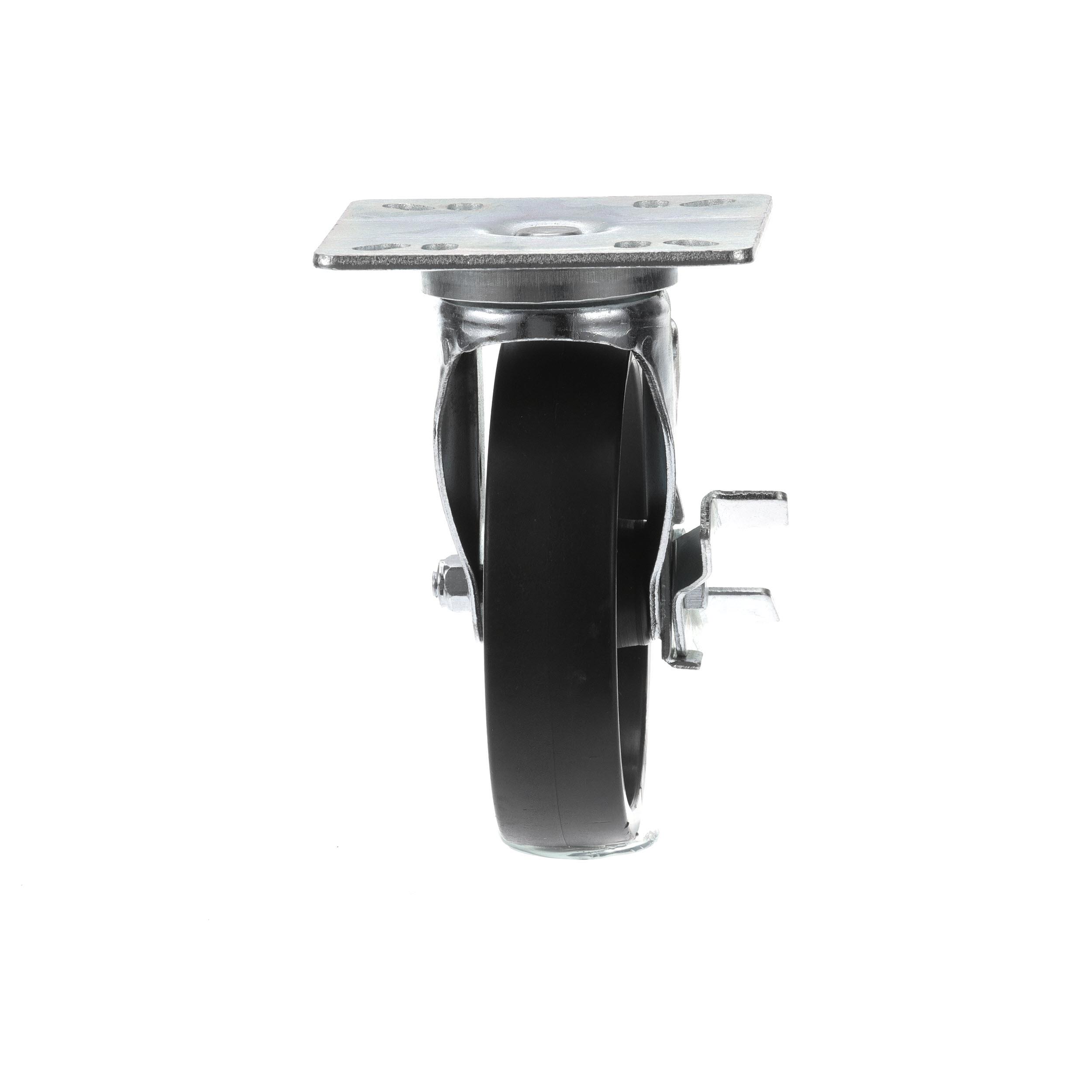

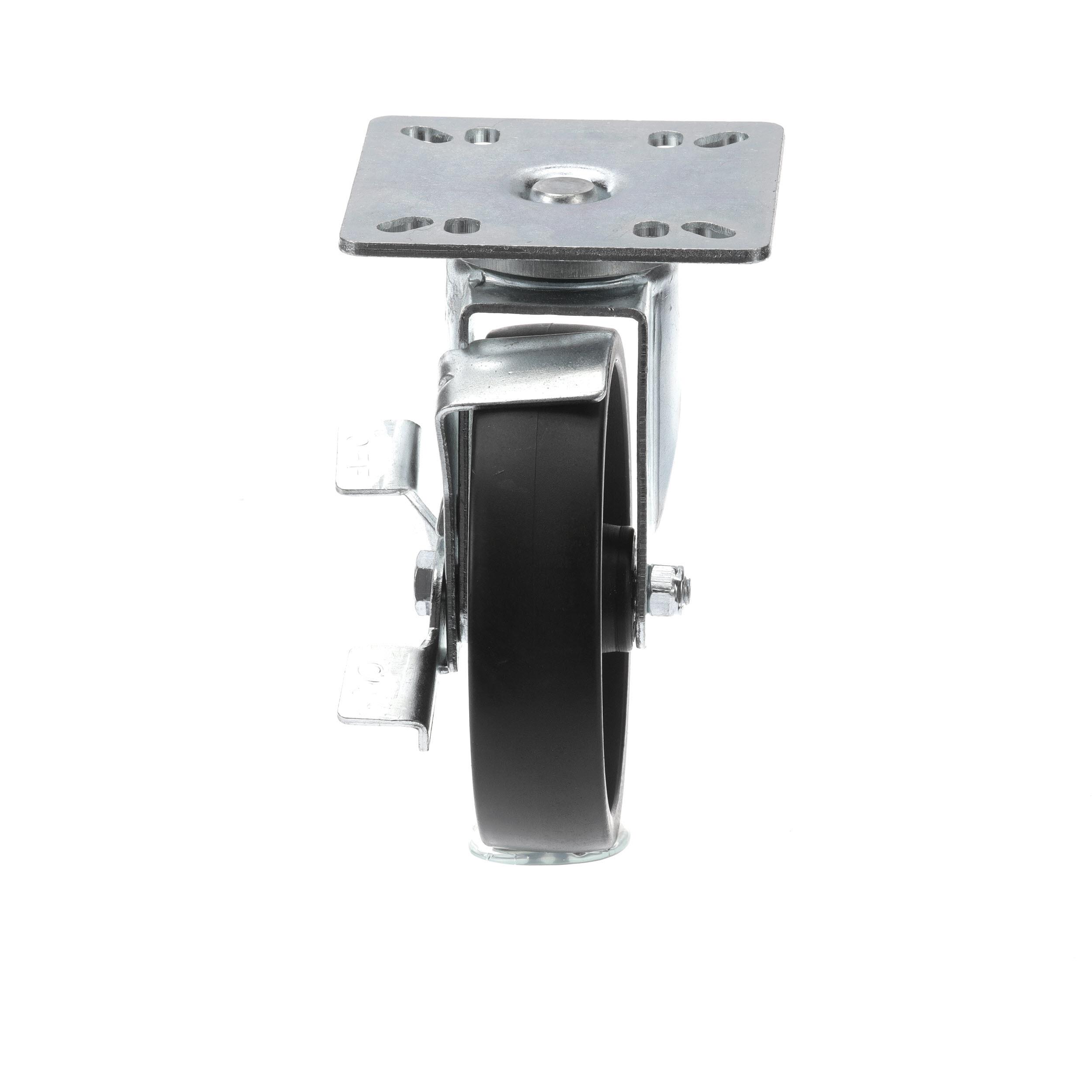

    Medium Duty 4" x 4" Universal Plate Caster With 5" Black Polyolefin Wheel With Brake

    • Medium Duty 4" x 4" Universal Plate Caster With 5" Black Polyolefin Wheel With Brake
    • Zinc plated steel yoke construction
    • 1-1/4" (32mm) tread width
    • 5" (127mm) OD black polyolefin wheel
    • Furnished with Side Brake
    • Load capacity 250 lbs. (110kg) per wheel
    • 6" (152mm) load height
    • 4" (101mm) swivel radius

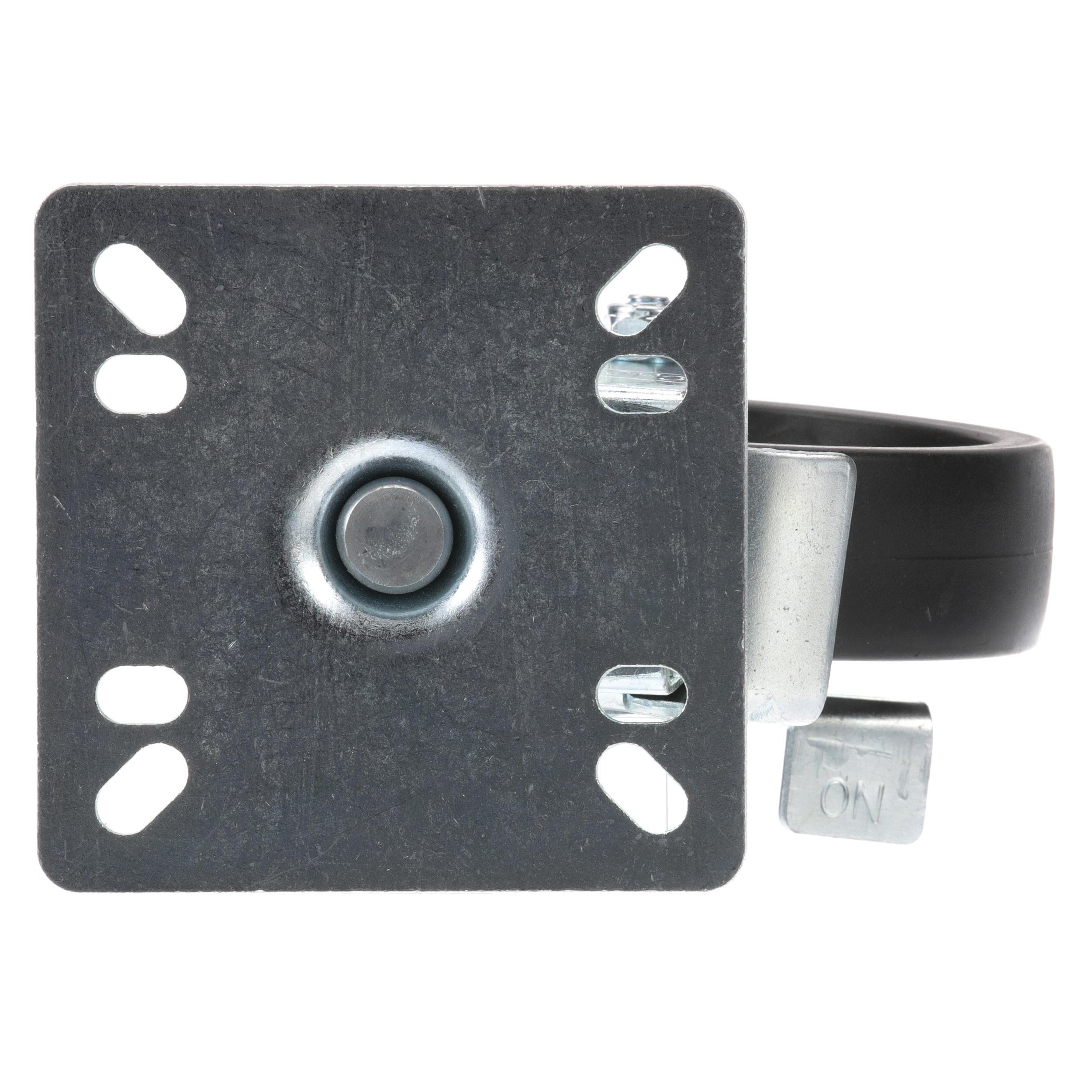

    • 4" x 4" (101mm x 101mm) universal swivel mounting plate with slotted holes for easy interchangeability between equipment legs and casters
    • Mounting holes accept 5/16" diameter bolts/screws
    Model No: CMPU-5BBN
    Item No.: 1002849

    Related Resources


    SPC-CMPU-5BxN.pdf
    $0.00
    i h
    Products specifications
    LOAD RATING 250
    CASTER DUTY MEDIUM
    FINISH / COLOR ZINC PLATED
    MOUNTING TYPE UNIVERSAL PLATE
    THREAD / PLATE / STEM SIZE 004.000 X 004.000
    WHEEL DIAMETER 5
    WHEEL MATERIAL BLACK POLYOLEFIN
    BRAKE TYPE SIDE
    BEARING TYPE NONE
    DIAMETER 5
    MEASUREMENT TYPE IMPERIAL
    PRIMARY MATERIAL STEEL
    SECONDARY MATERIAL POLYOLEFIN
