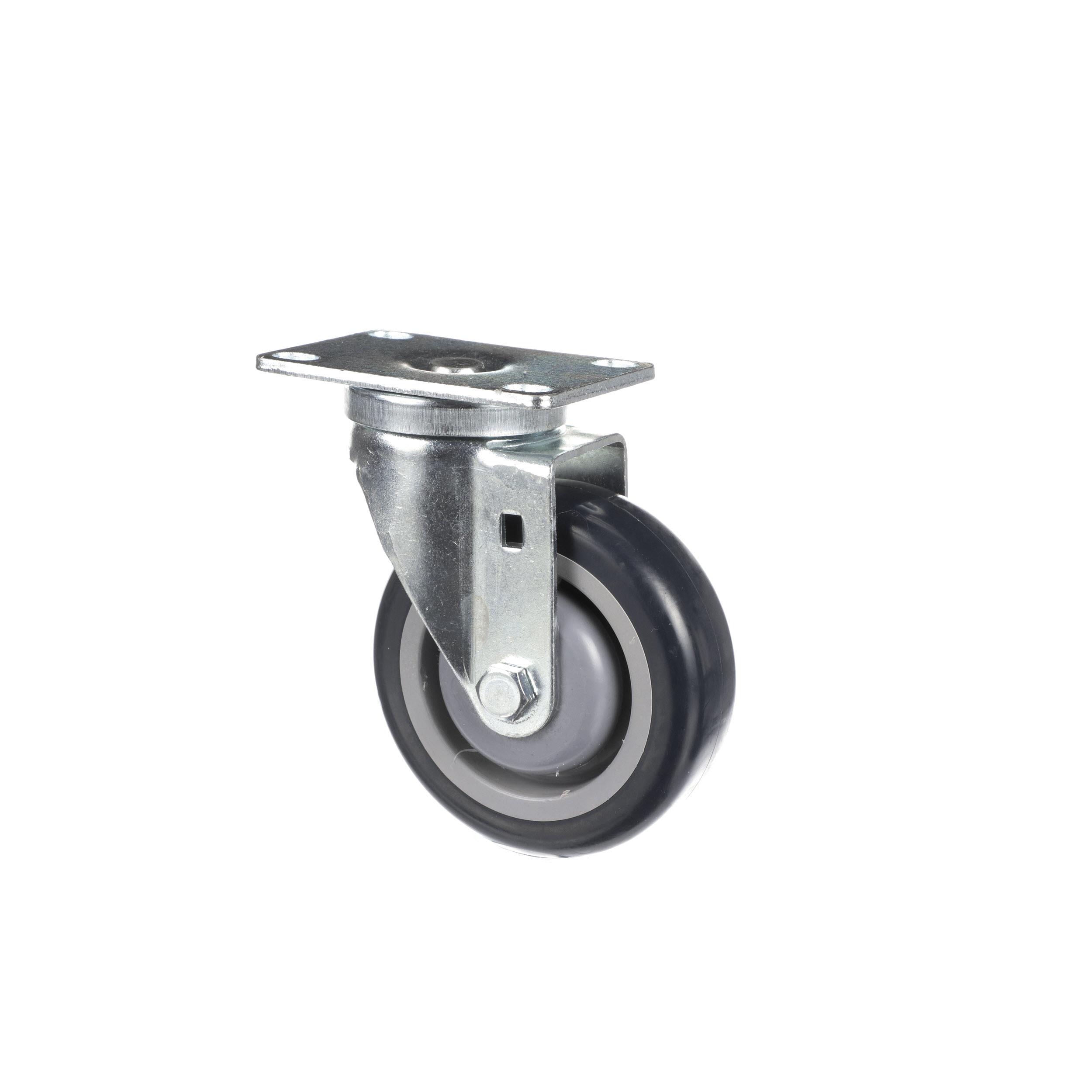

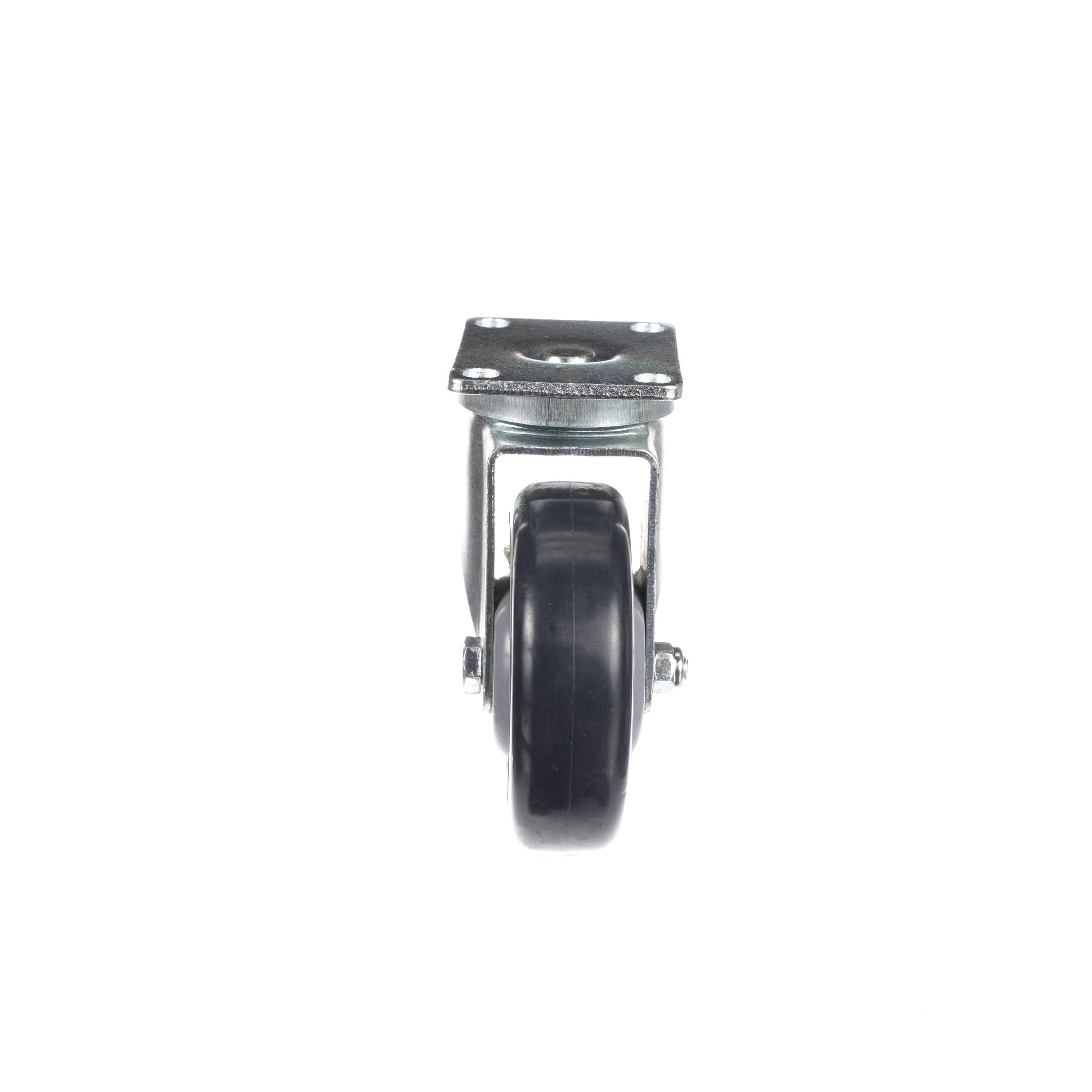

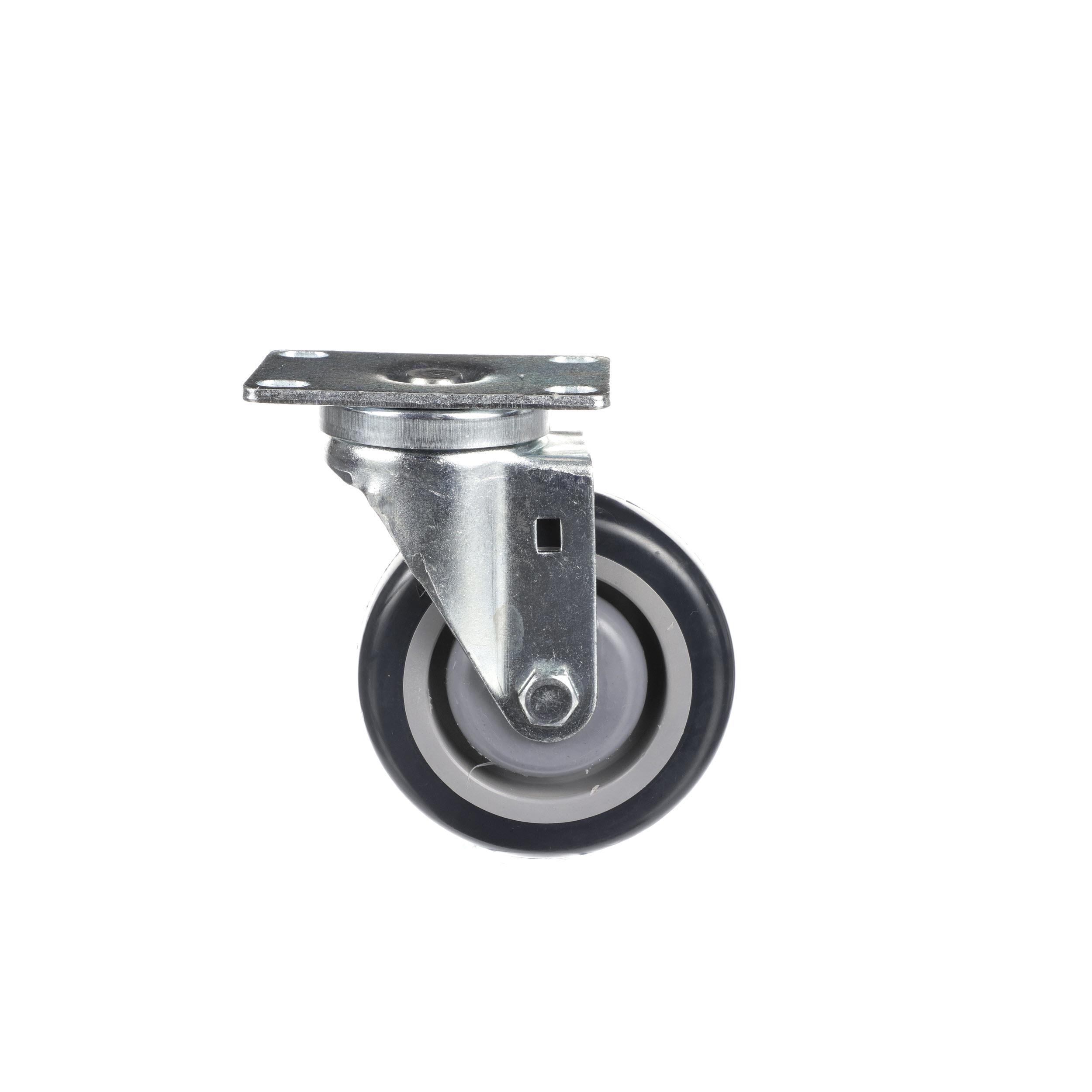

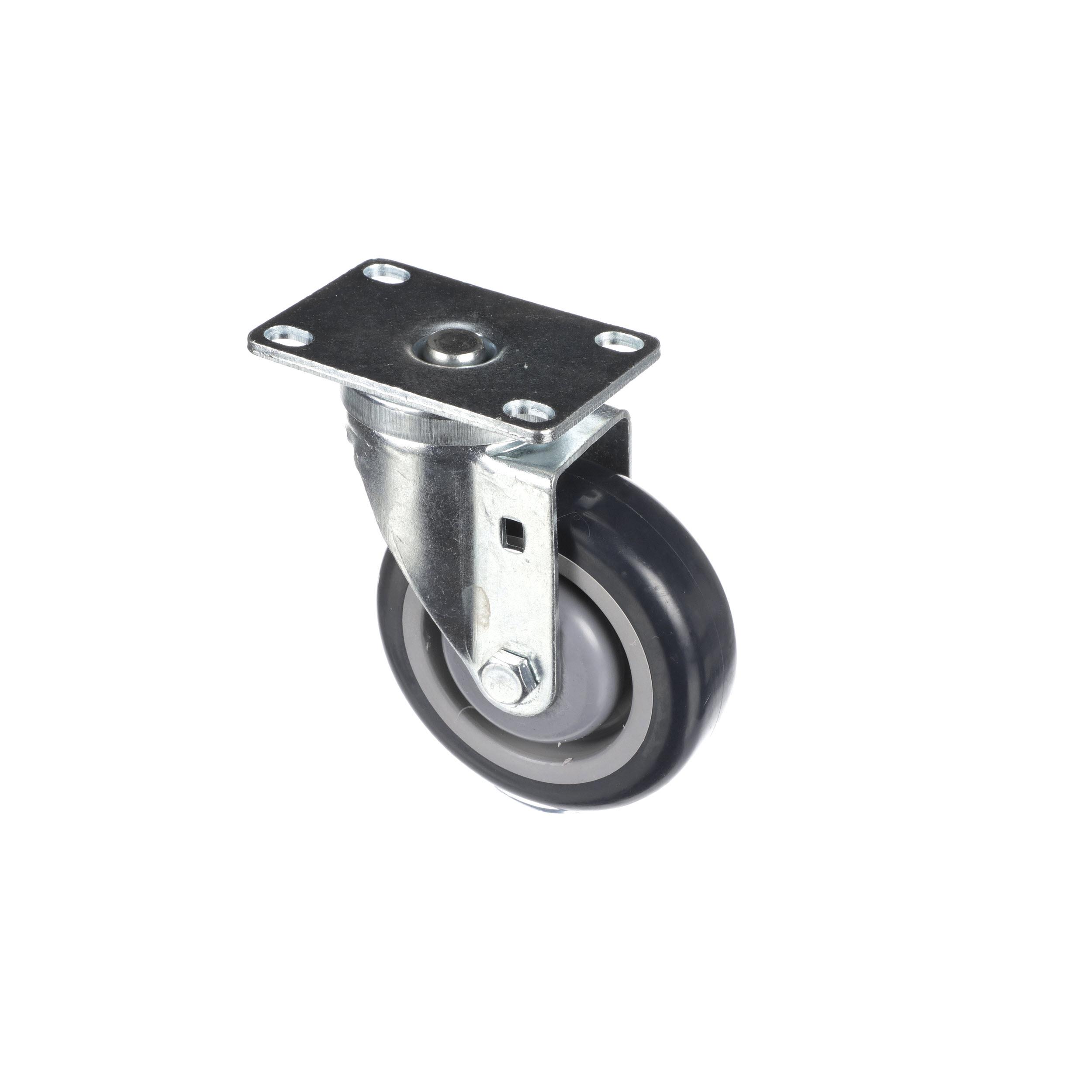

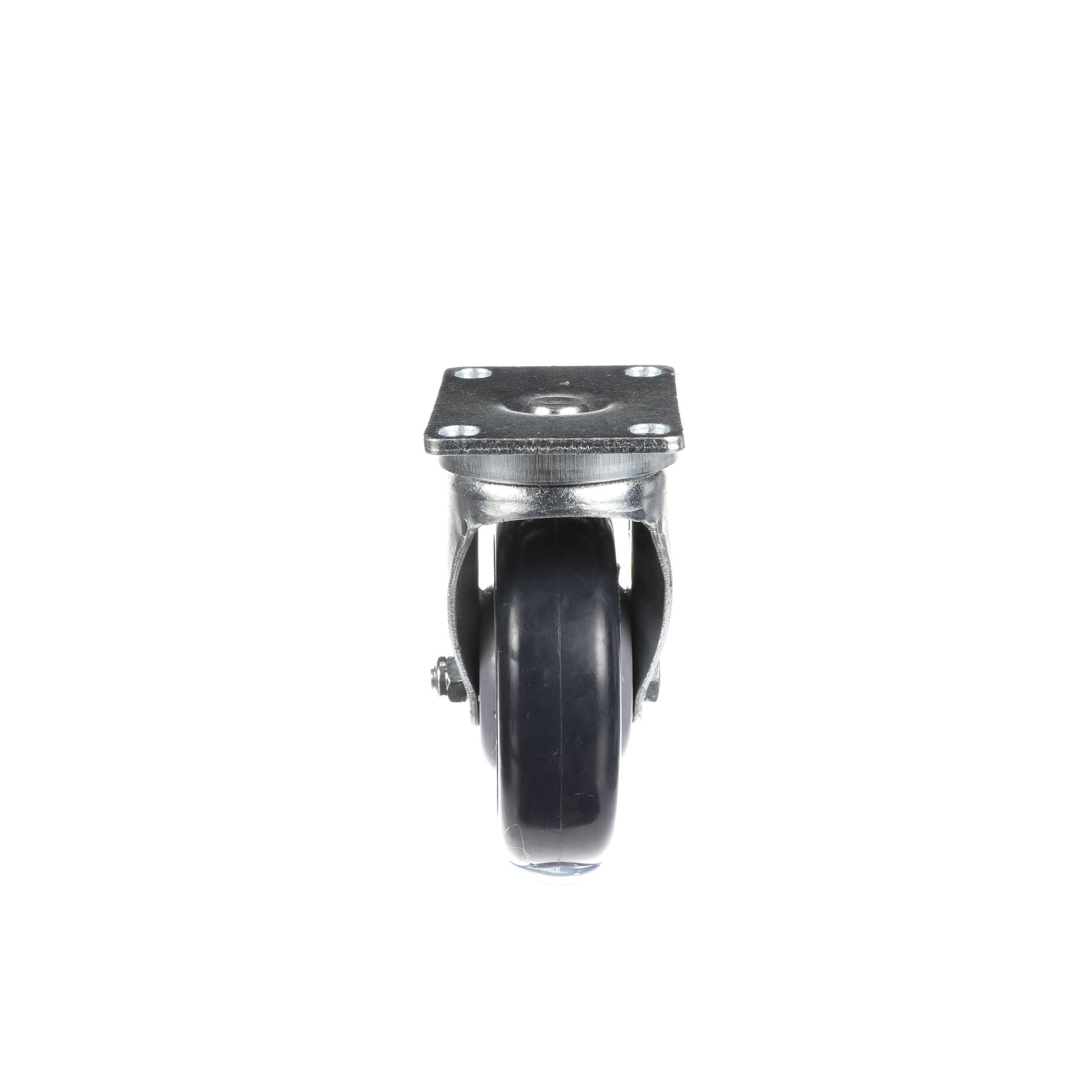

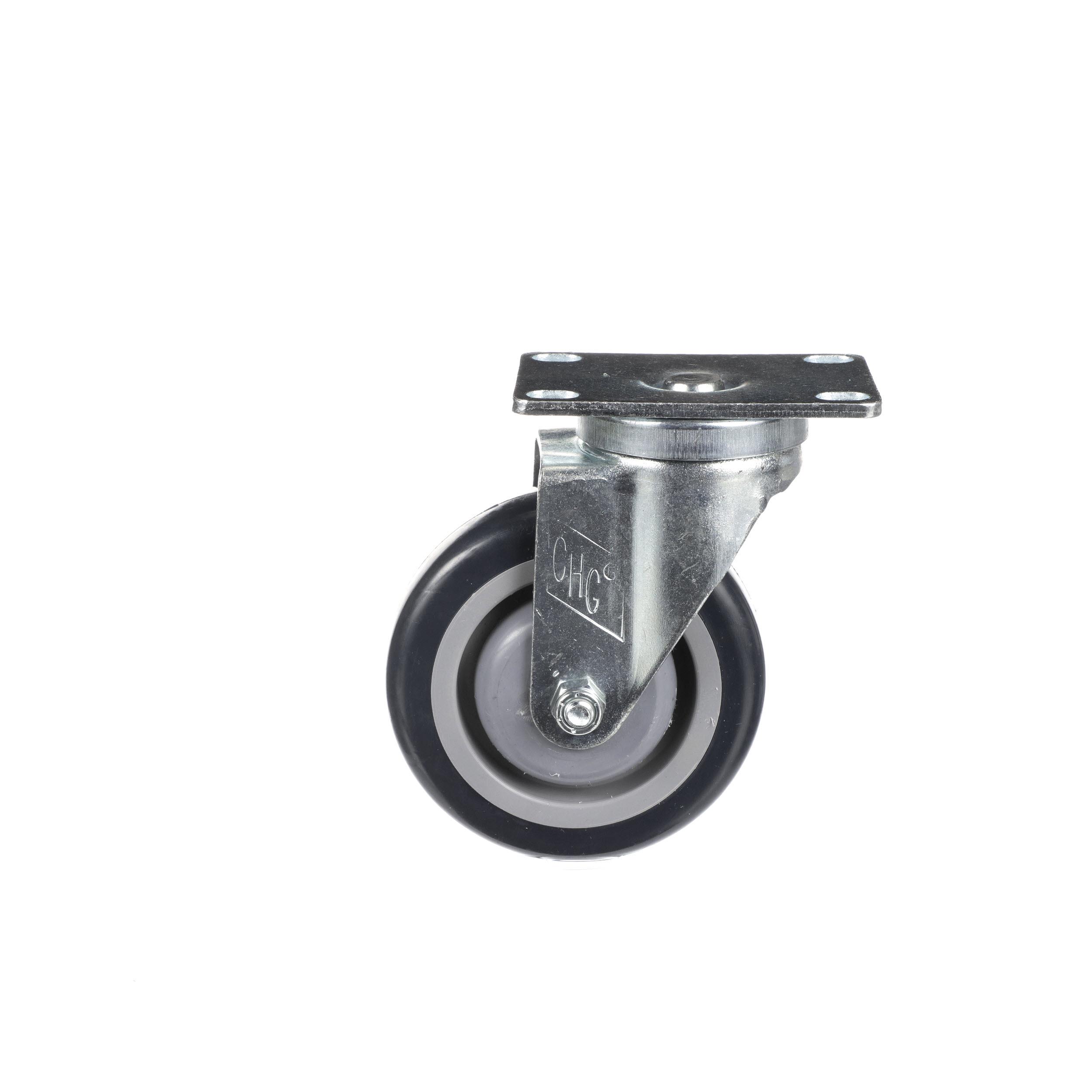

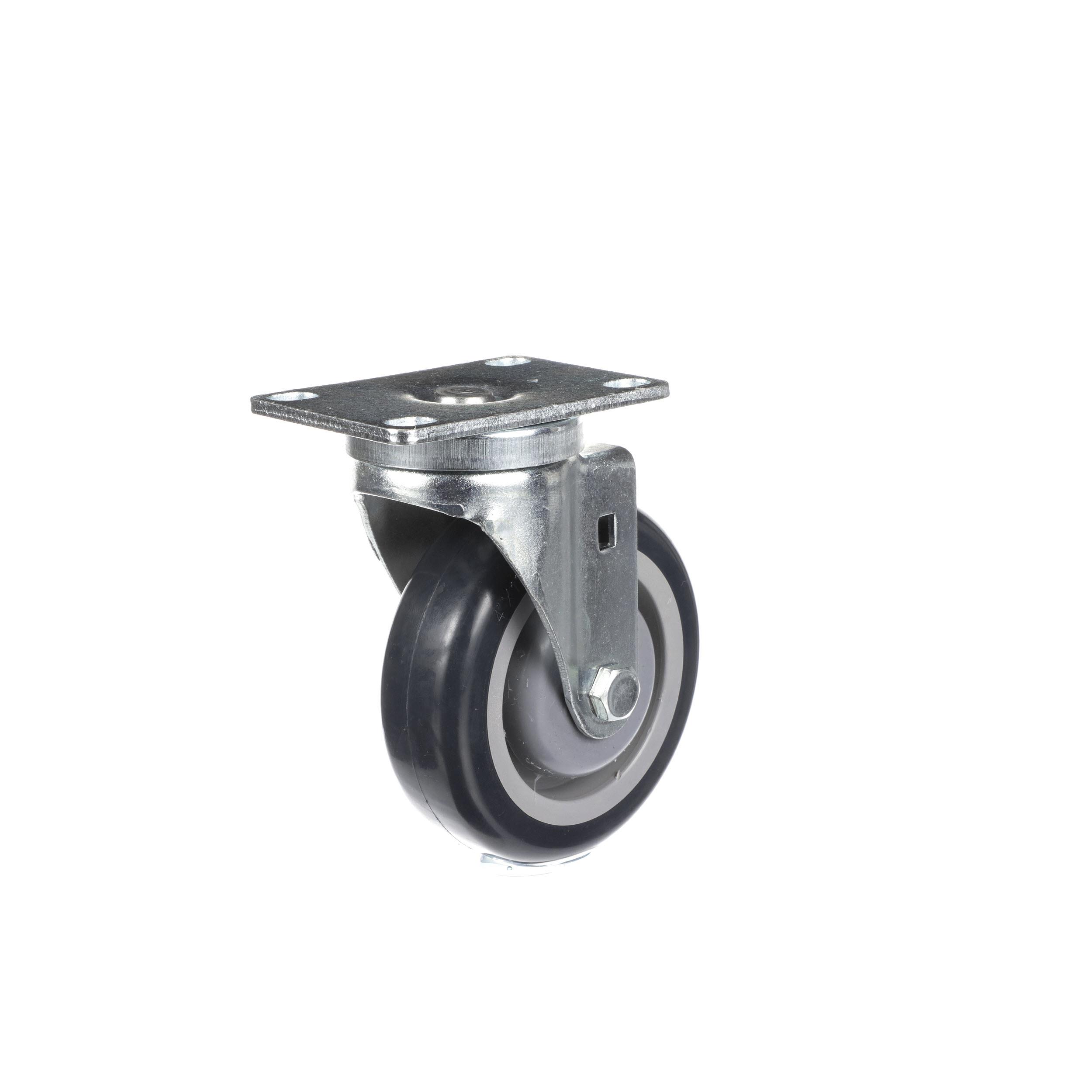

Medium Duty 2-3/8" x 3-5/8" Plate Caster With 3" Blue Polyurethane Wheel

Brand: Component Hardware

Medium Duty 2-3/8" x 3-5/8" Plate Caster With 3" Blue Polyurethane Wheel
Zinc plated steel yoke construction
1-1/4" (32mm) tread width
3" (76mm) OD blue polyurethane wheel
Load capacity 250 lbs. (110kg) per wheel
4" (102mm) load height
2-7/8" (73mm) swivel radius
2-3/8" x 3-5/8" (60mm x 90mm) swivel plate with slotted mounting holes spaced on 1-3/4" x 2-7/8" (45mm x 73mm) centers
Mounting holes accept 1/4" diameter bolts/screws

Model No: CMP1-3PPB

Item No.: 1002825

$0.00

Qty:

i h

Products specifications
