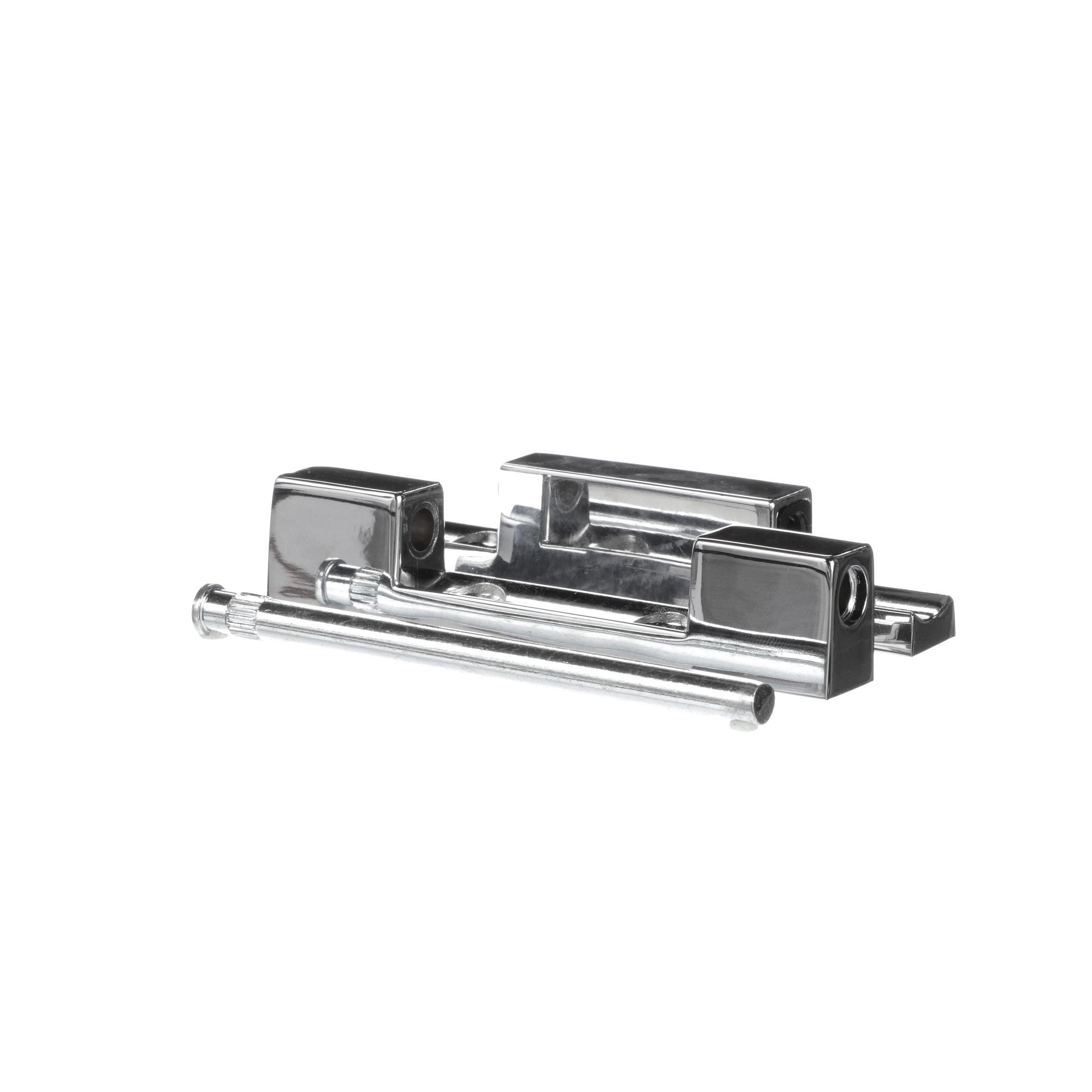

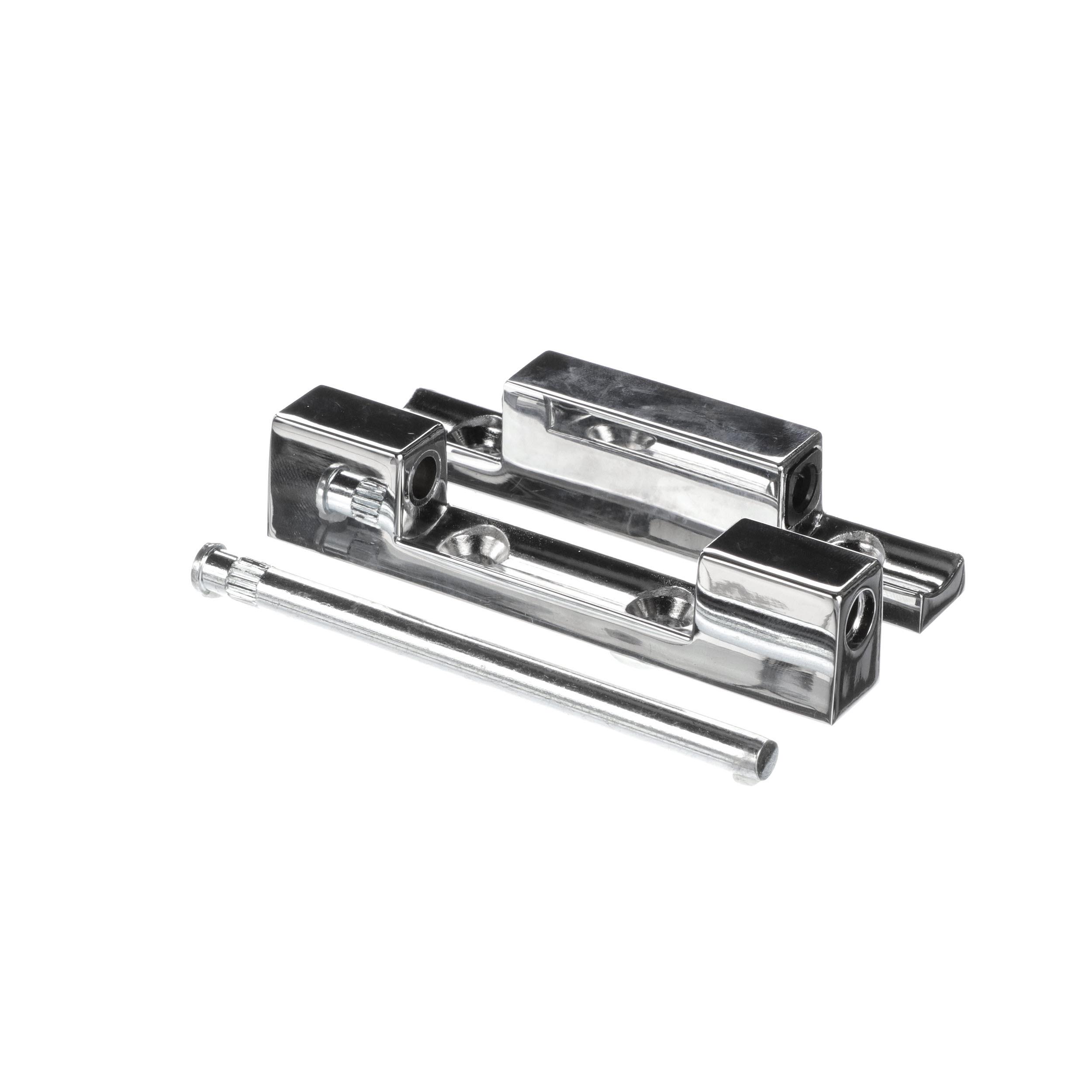

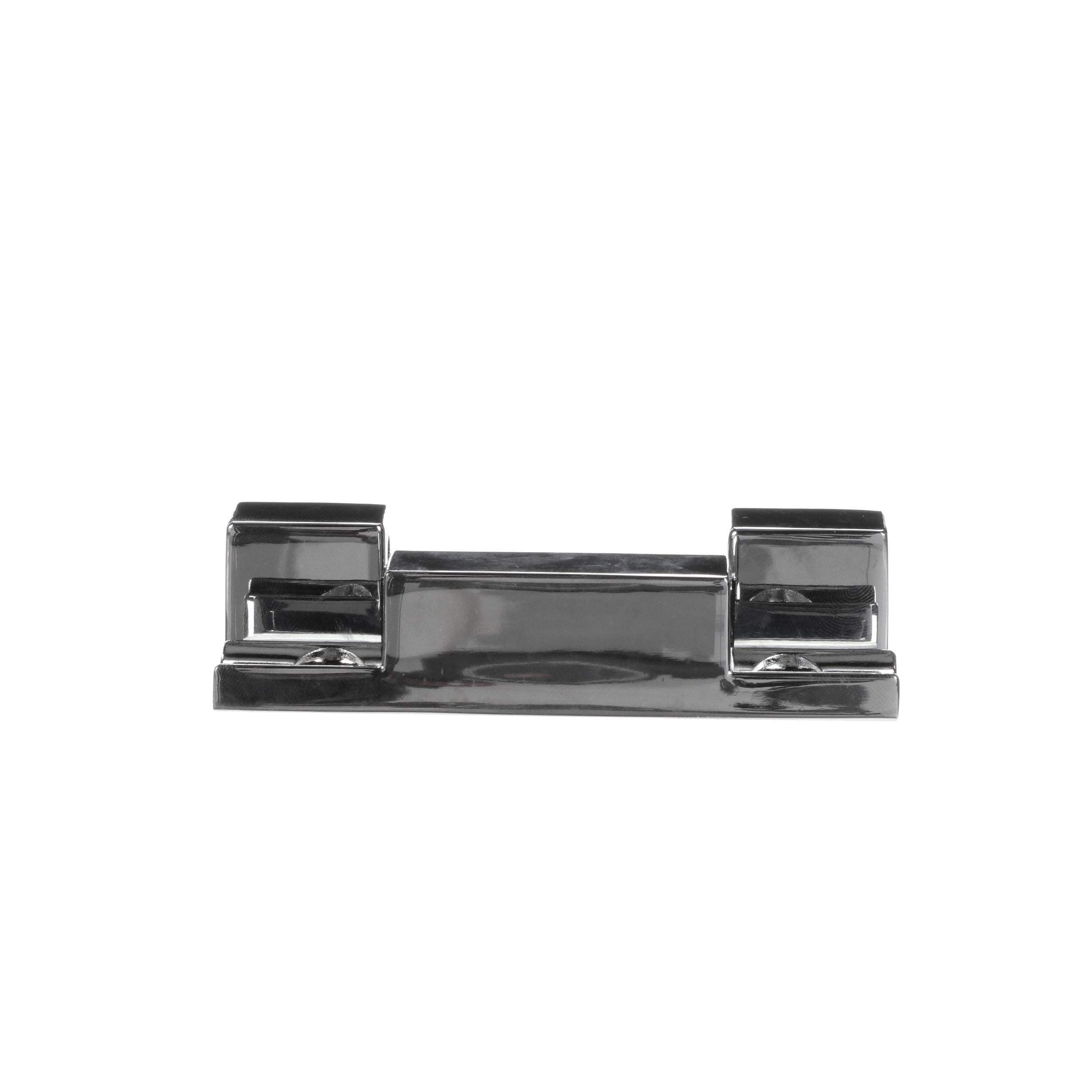

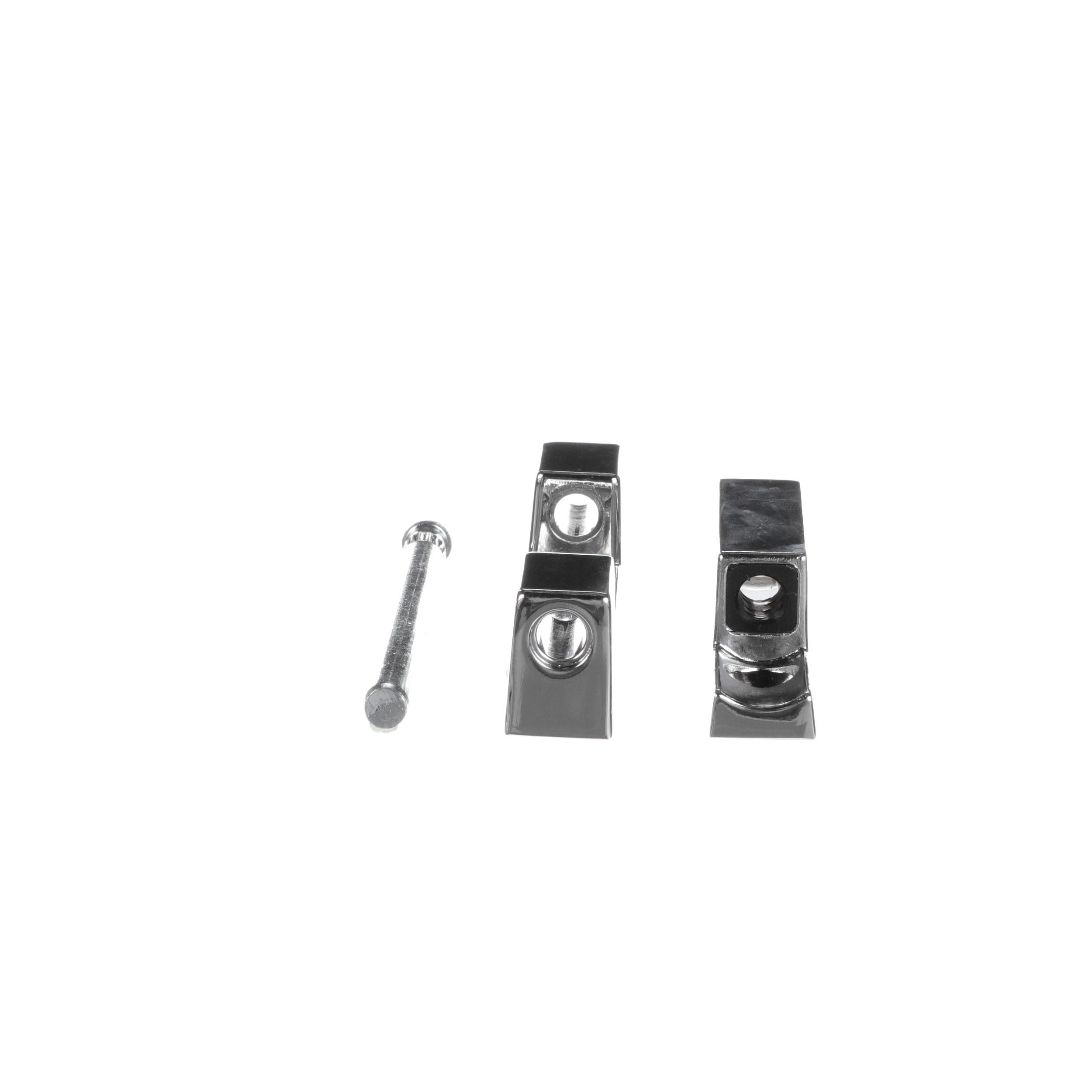

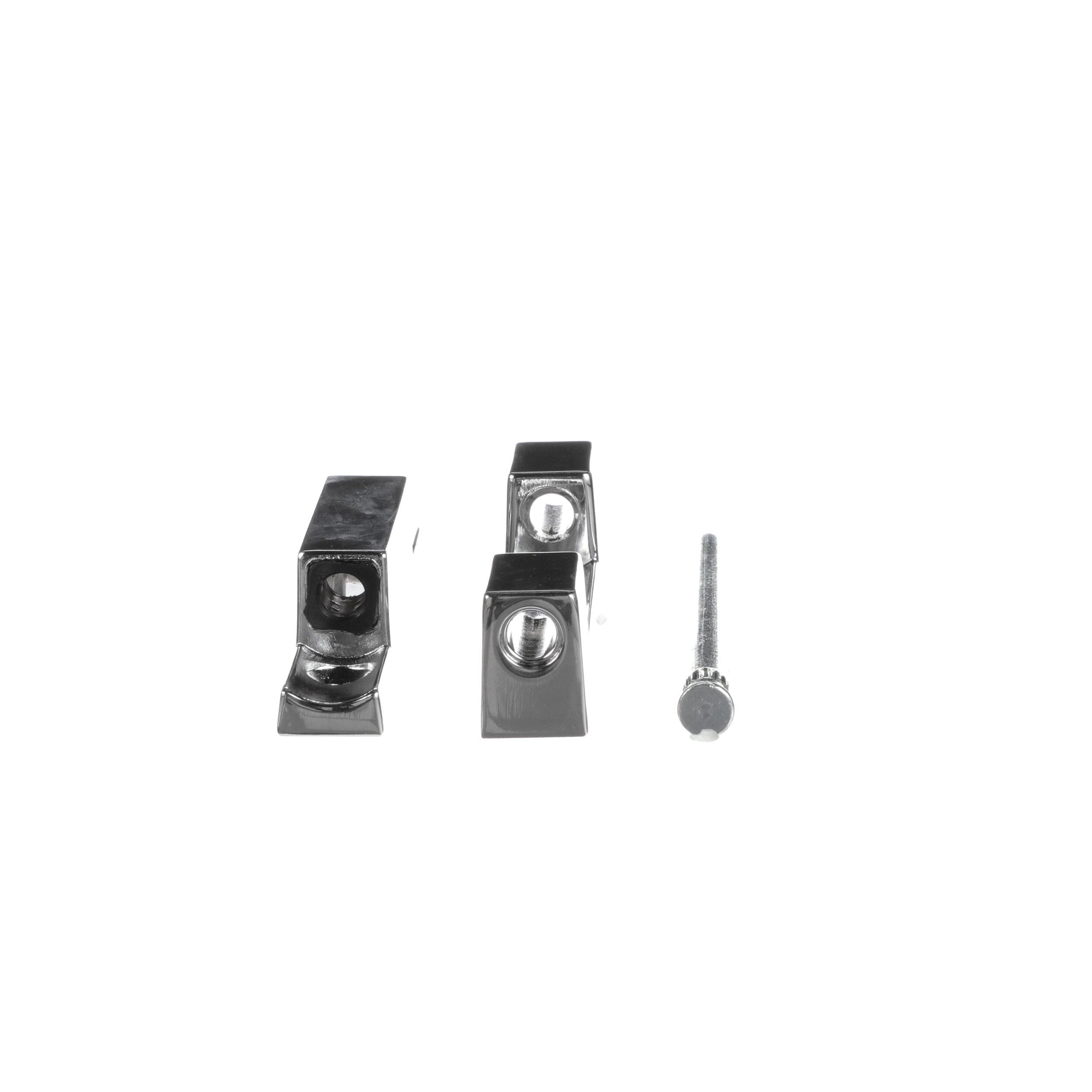

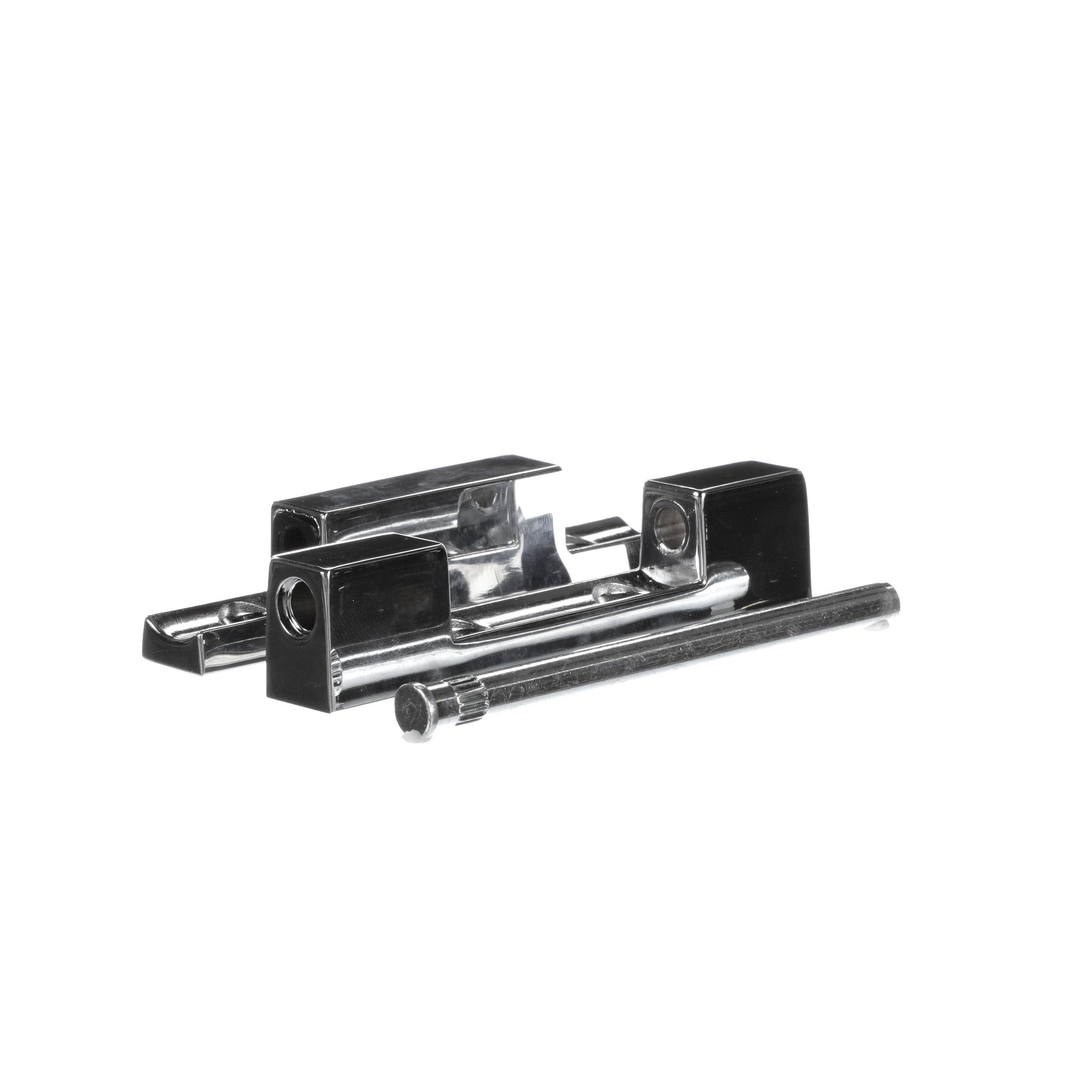

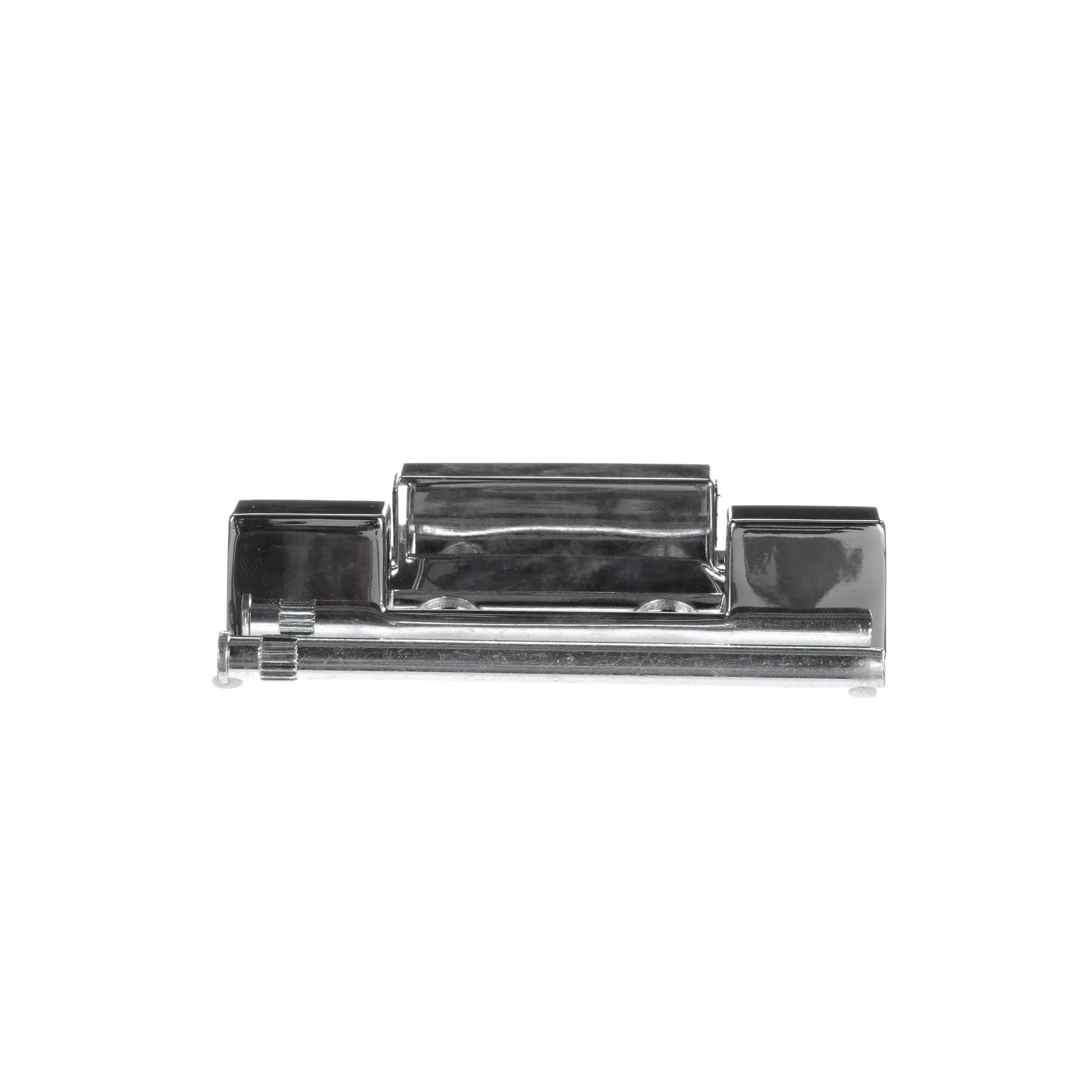

    7/8" Offset 3-3/4" L Chrome Plated Die Cast Slim-Line Standard Duty Edgemount Hinge

    Be the first to review this product
    • 7/8" Offset Chrome Plated Die Cast Slim-Line Standard Duty Edgemount Hinge
    • Ideal for under bar equipment, standard reach-in refrigerators and freezers
    • High pressure die cast Zamak construction
    • Polished chrome plated finish
    • 7/8" offset
    • 3-3/4" L x 7/8"W x 7/8" H overall
    • Non-rise function allows for quick and easy door adjustment to compensate for door sag
    • Celcon self-lubricating bushings provide smooth, quiet, self-lubricating action
    • Non-handed for right and left hand operation
    • Furnished with four countersunk mounting holes for #10 or M5 flat head screws (not provided)
    • •  Easy to install
    • •  Contemporary styling
    Model No: R20-1010
    Item No.: 1008396

    $0.00
    i h
    Products specifications
    FINISH / COLOR POLISHED CHROME
    MEASUREMENT TYPE IMPERIAL
    PRIMARY MATERIAL ZINC
    HINGE TYPE NON-RISE
