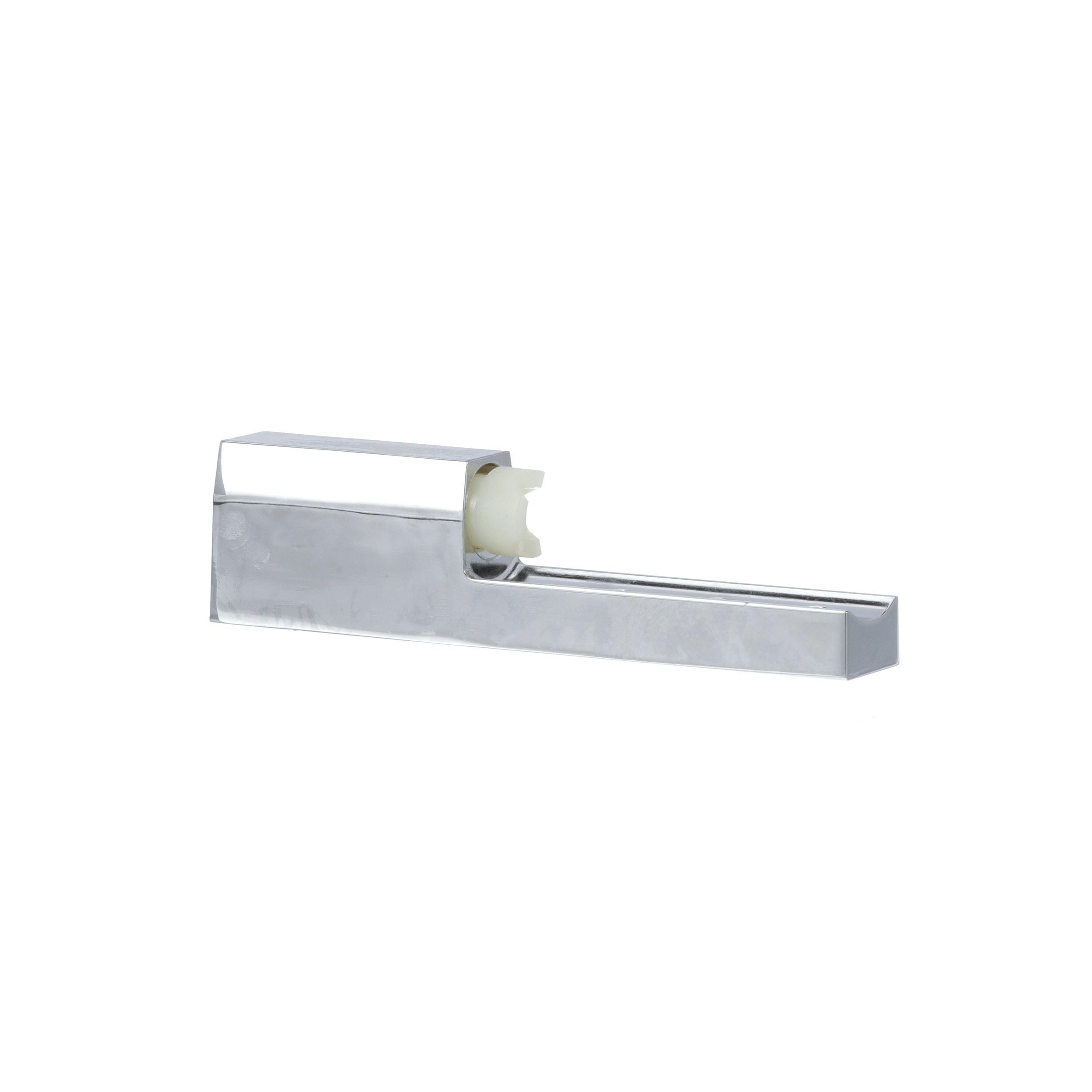

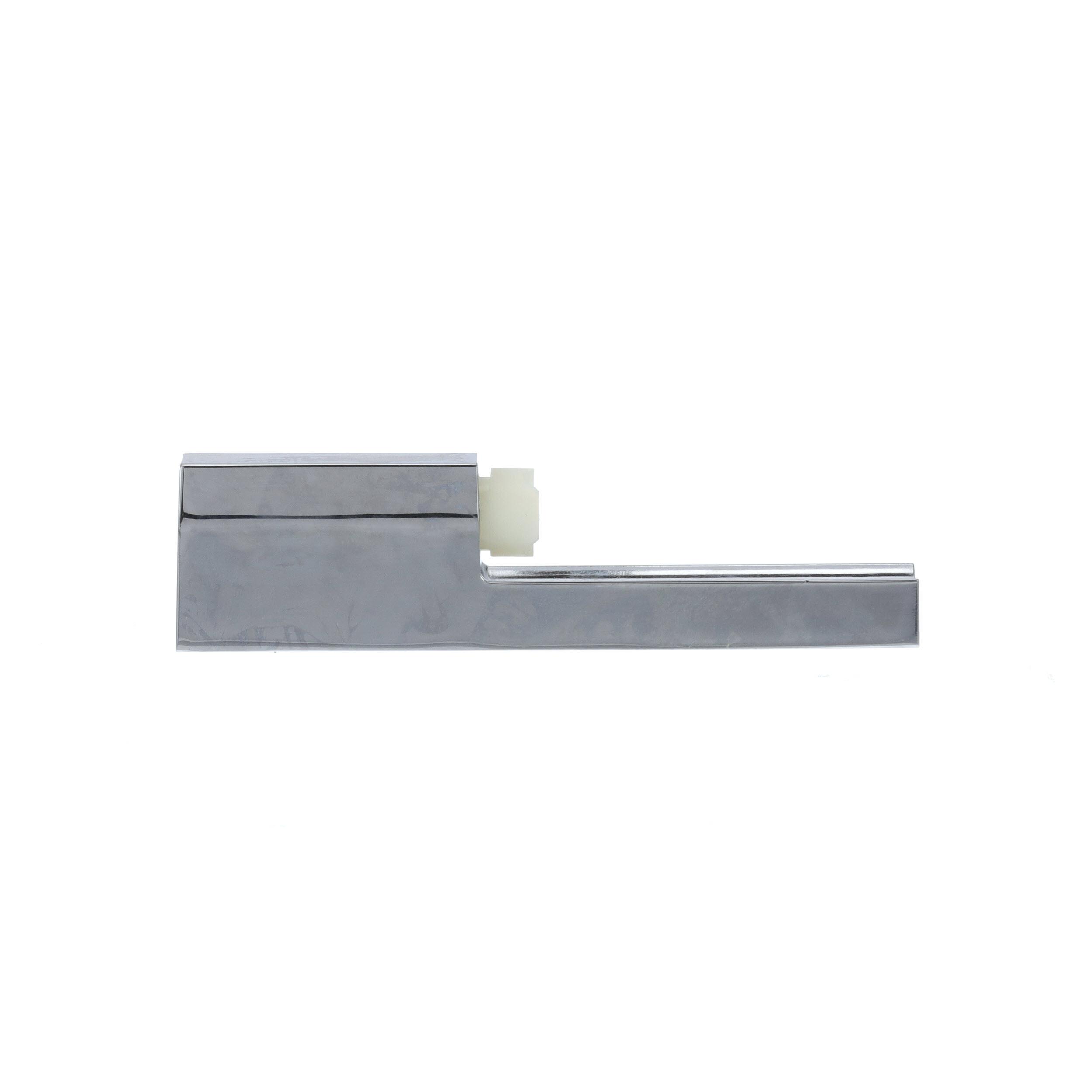

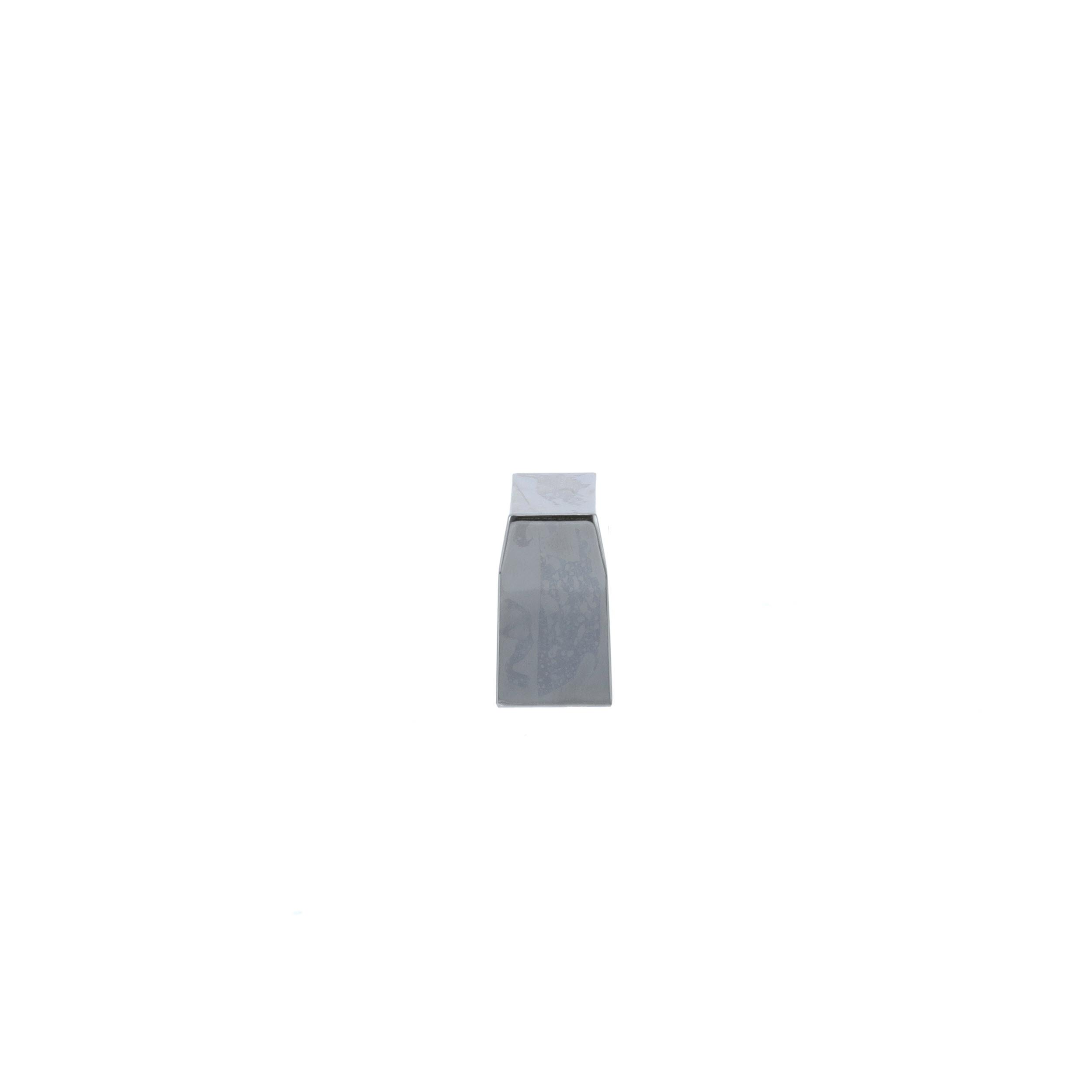

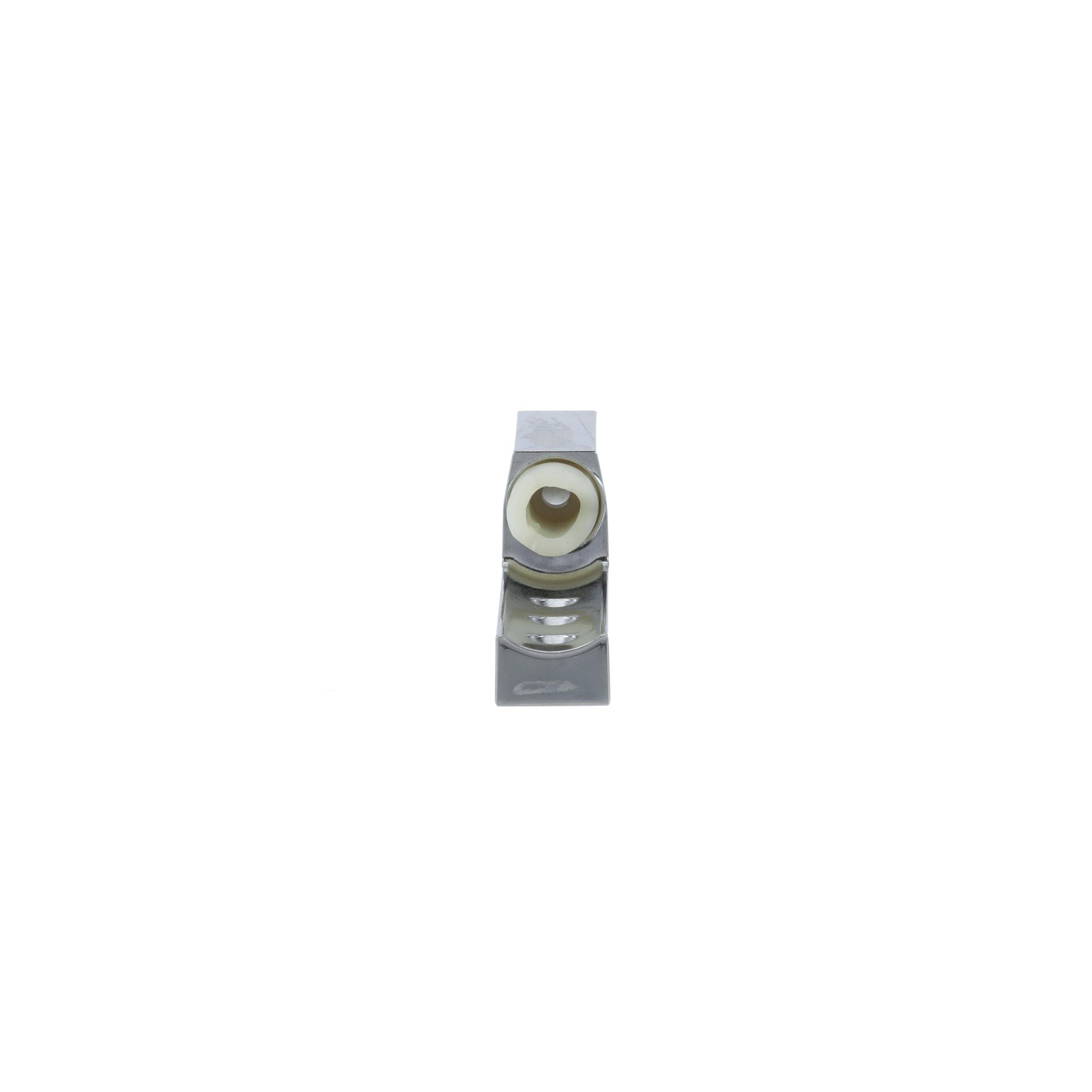

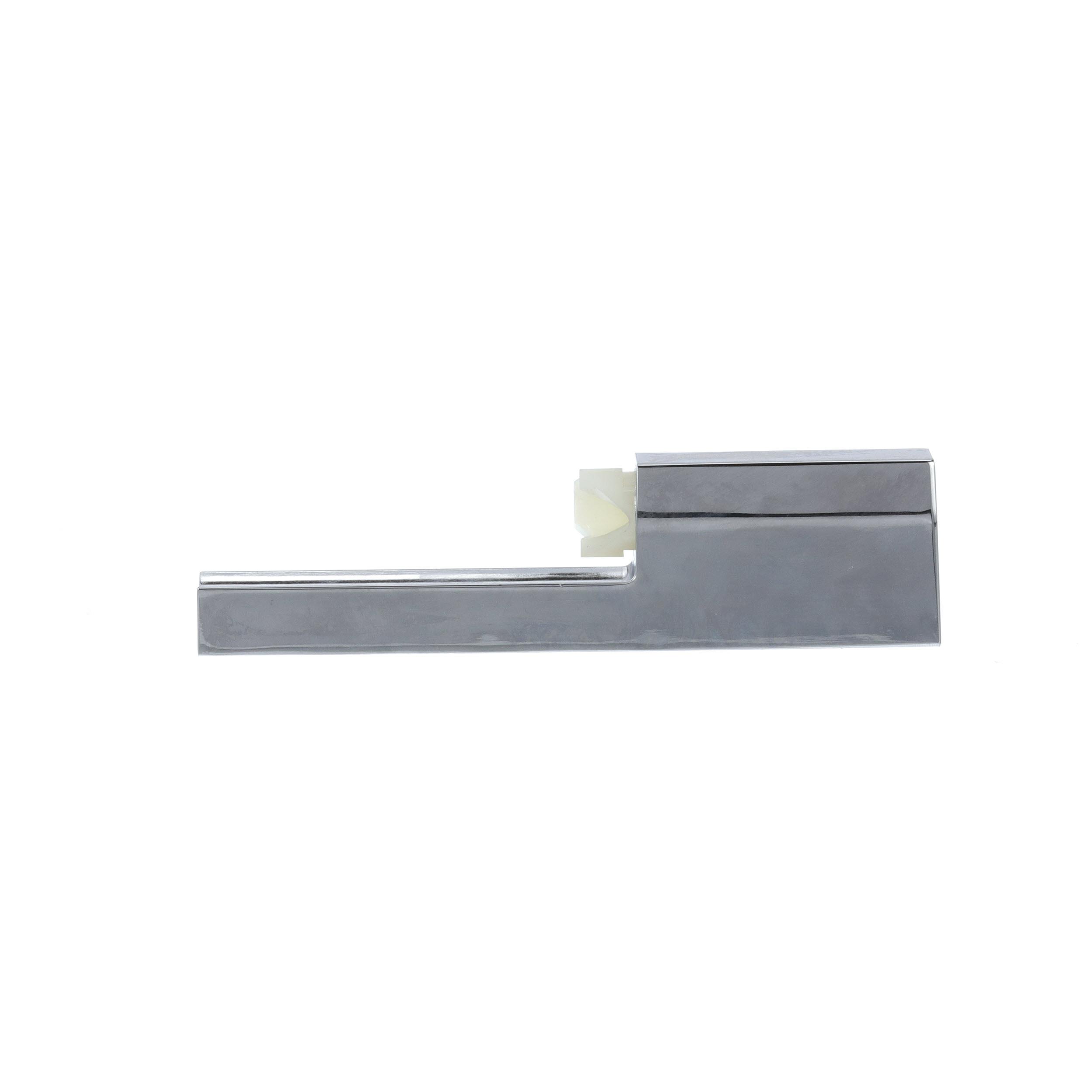

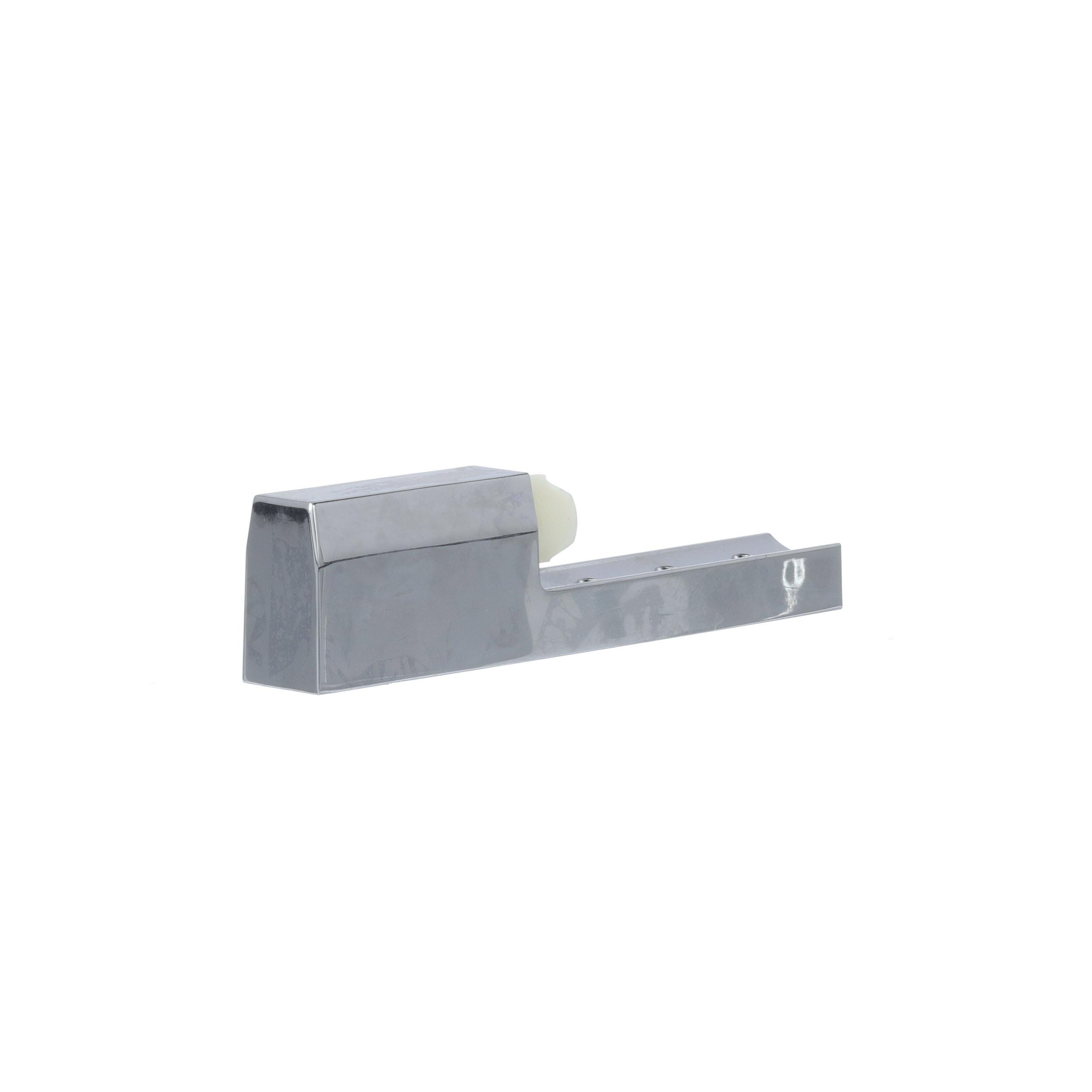

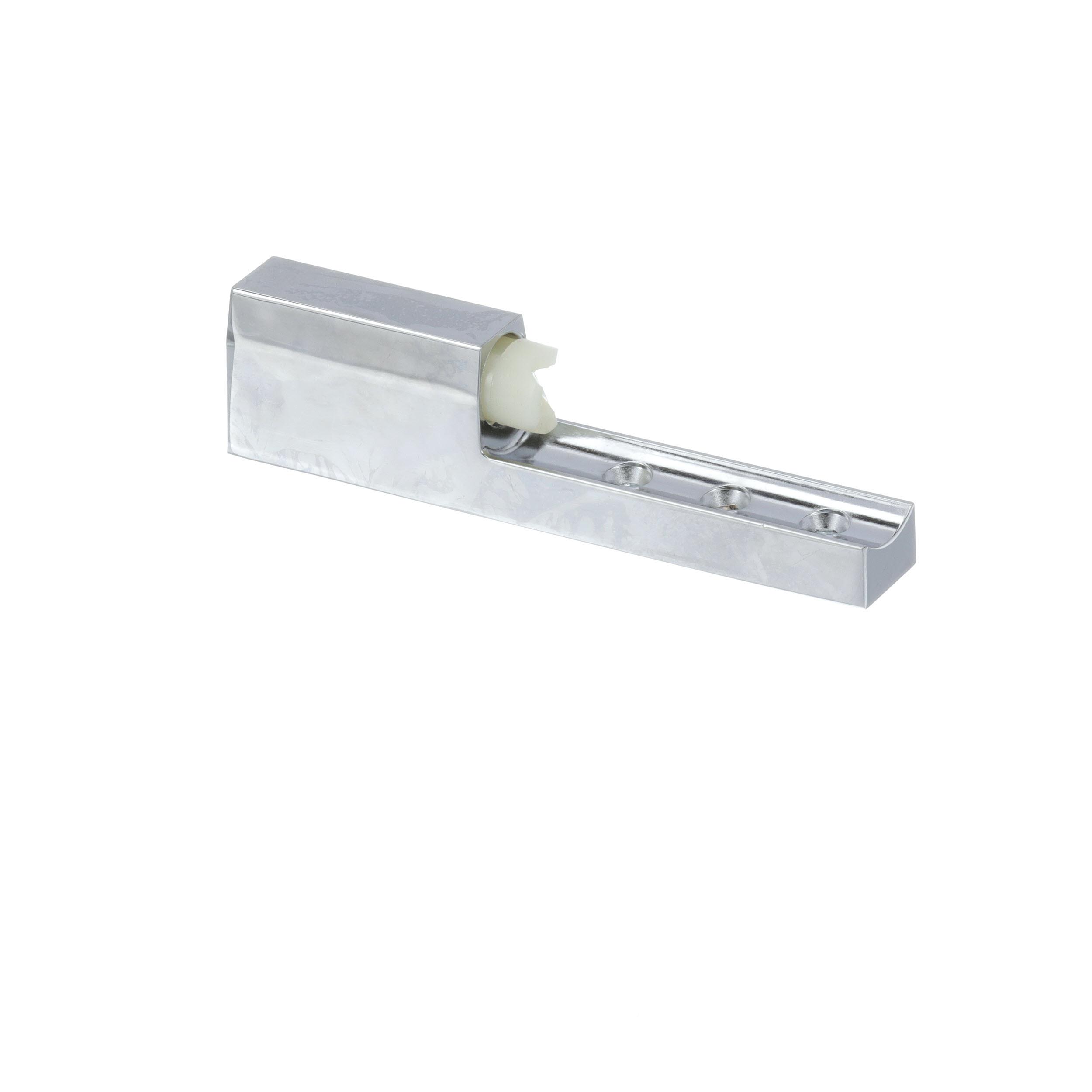

1-5/8" Offset Chrome Plated Housing With Cam And Plunger Switch For R50 Series Hinge

1-5/8" Offset Chrome Plated Housing With Cam And Plunger Switch For R50 Series Hinge
Ideal for reach-in refrigerators and doors equipped with magnetic gasketing
1-5/8" offset housing sub-assembly with plunger switch only for R50 Series hinges
High pressure die cast zamak construction
Polished chrome plated finish
5-3/4" L x 1-1/16" W x 1-3/4" H overall
Self-closing cam-rise action
Hold open position, cam allows door to remain open at 90°
Non-handed...for right and left hand operation
Contemporary styling
Mounting holes drilled and countersunk for #10 or M5 flat head screws

Model No: R50-X001-P

Item No.: 1008544
