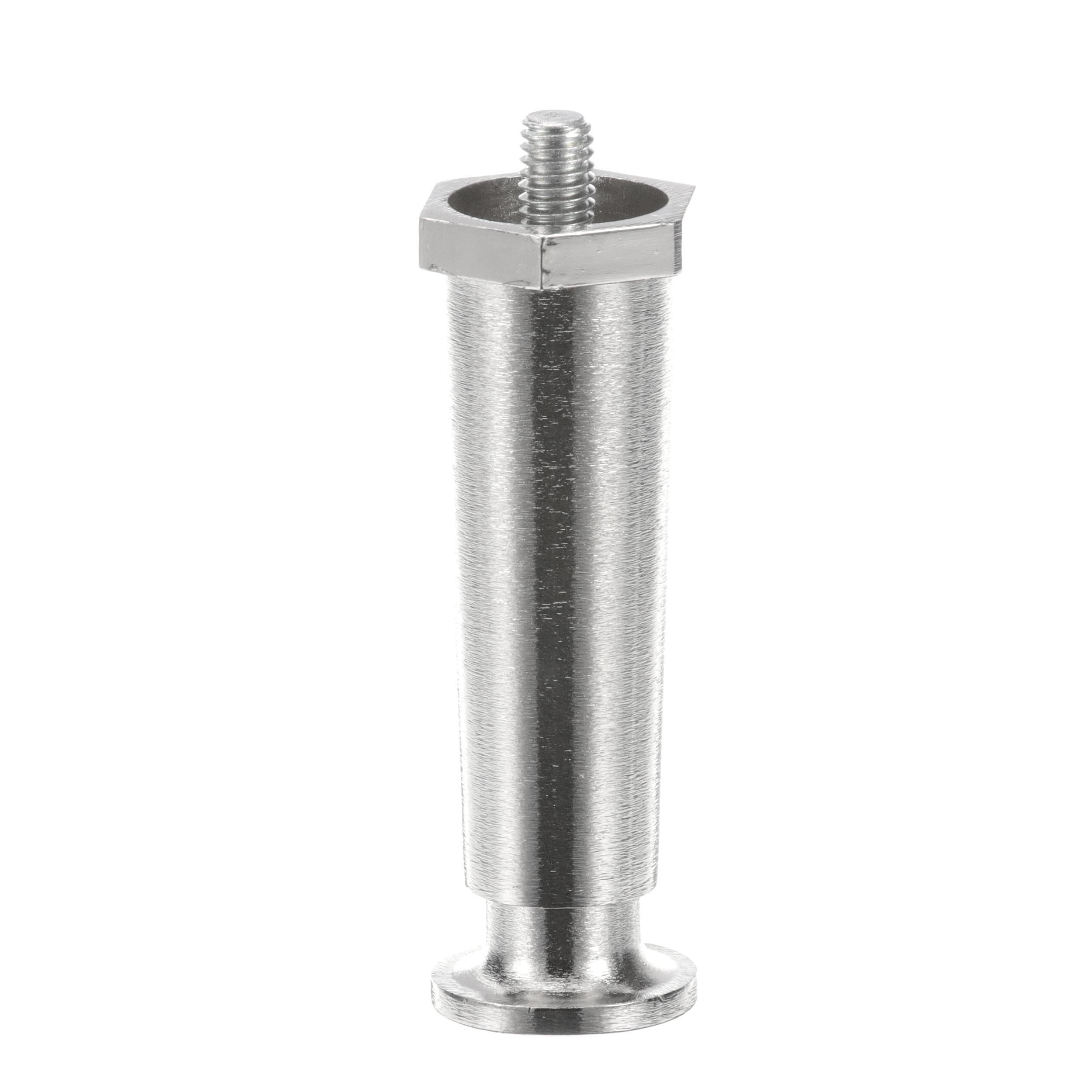

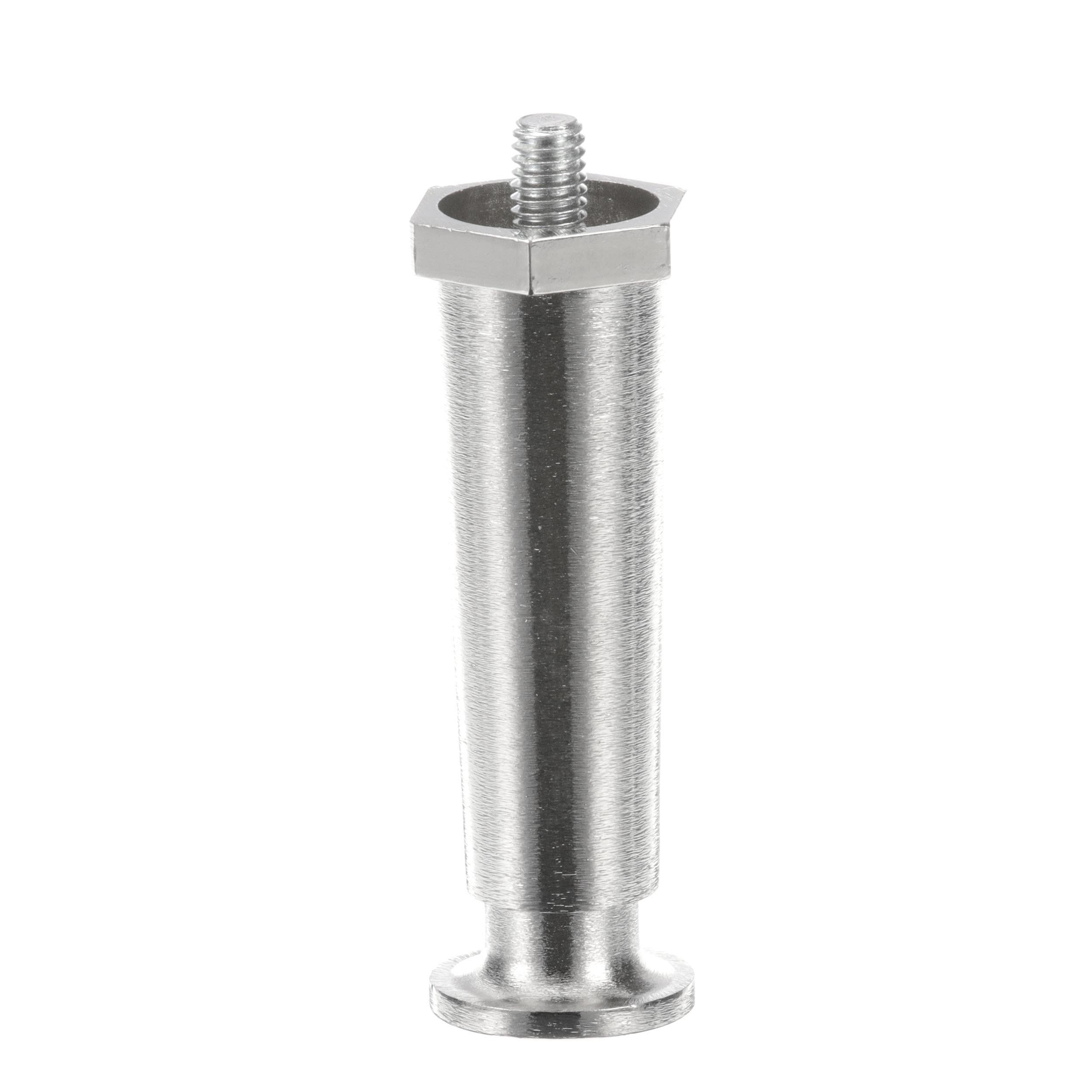

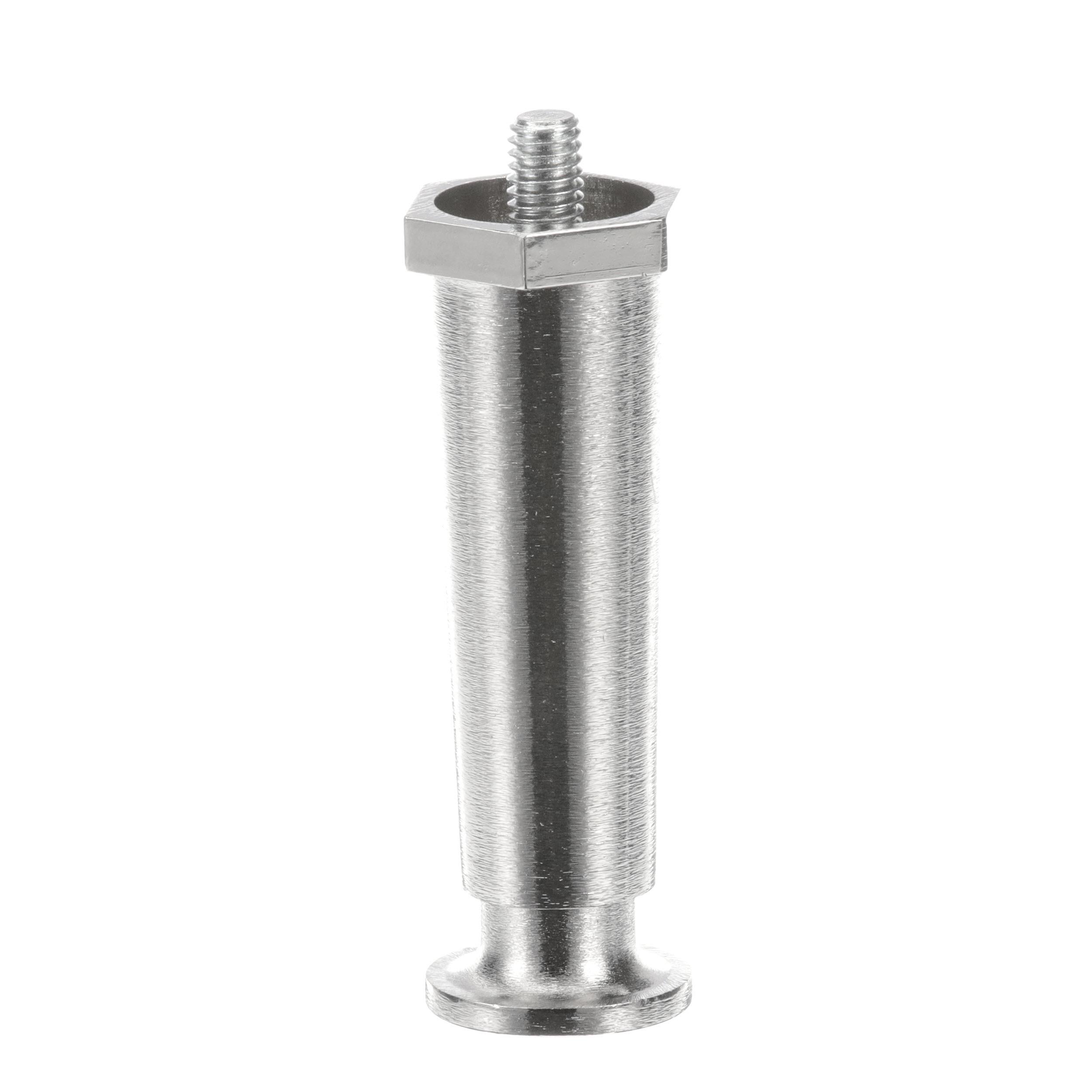

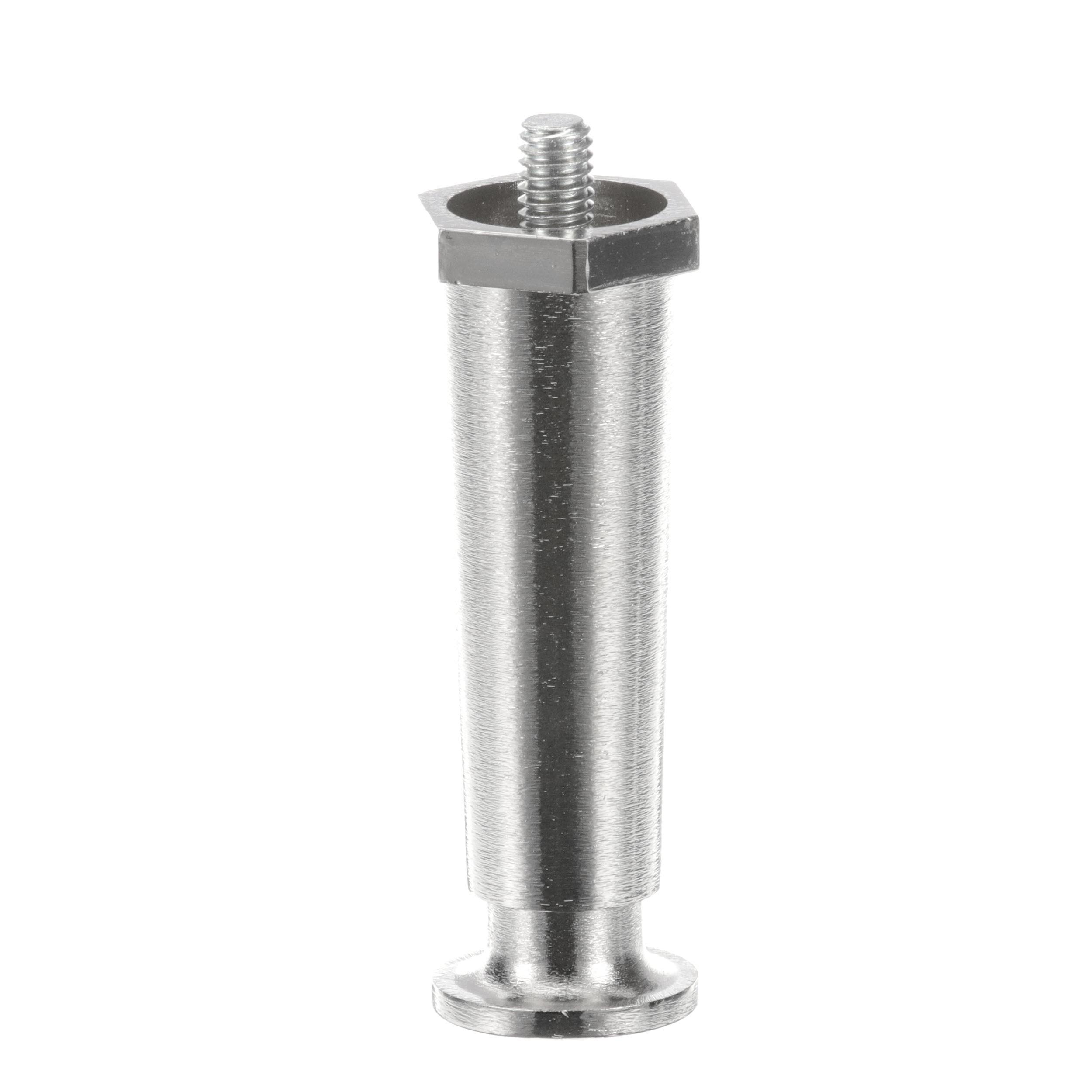

    4" H Nickel Plated Die Cast Appliance Leg With 1/4-20 x 3/8"L Protruding Stud And Adjustable Flanged Toe

    • 4" H Nickel Plated Die Cast Appliance Leg With 1/4-20 x 3/8"L Protruding Stud And Adjustable Flanged Toe
    • Designed for use on countertop appliances and beverage dispensing units
    • Satin nickel plated die cast construction
    • 1-3/4" hex at top of leg
    • 1/4-20 x 3/8" L protruding mounting stud
    • 4" OA height in closed position
    • Adjustable flanged toe provides up to 1" adjustment for leveling of appliances
    • 250 lbs static load rating
    Model No: A60-1653-SP1
    Item No.: 1001751

    Related Resources


    SPC-A60-1653-SP1.pdf
    $0.00
    i h
    Products specifications
    LOAD RATING 250 LBS
    FINISH / COLOR SATIN NICKEL
    LEG HEIGHT 4 INCHES
    LEG MOUNTING TYPE PROTRUDE STUD
    TOE TYPE FLANGED TOE
    LEG THREAD / PLATE / STEM SIZE 000.250-20
    MEASUREMENT TYPE IMPERIAL
    PRIMARY MATERIAL ZINC
    SECONDARY MATERIAL STEEL
    ADJUSTMENT RANGE 001.000
