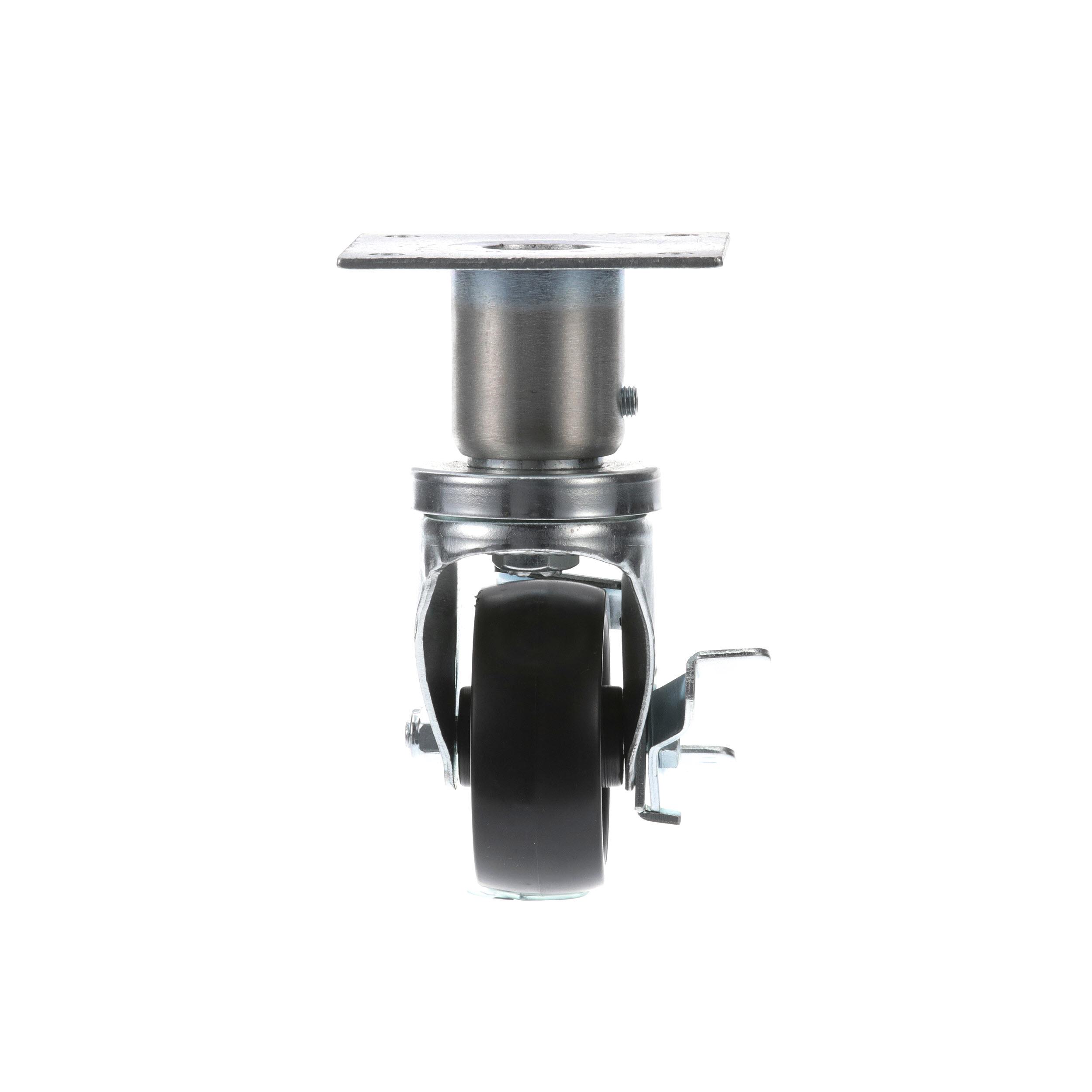

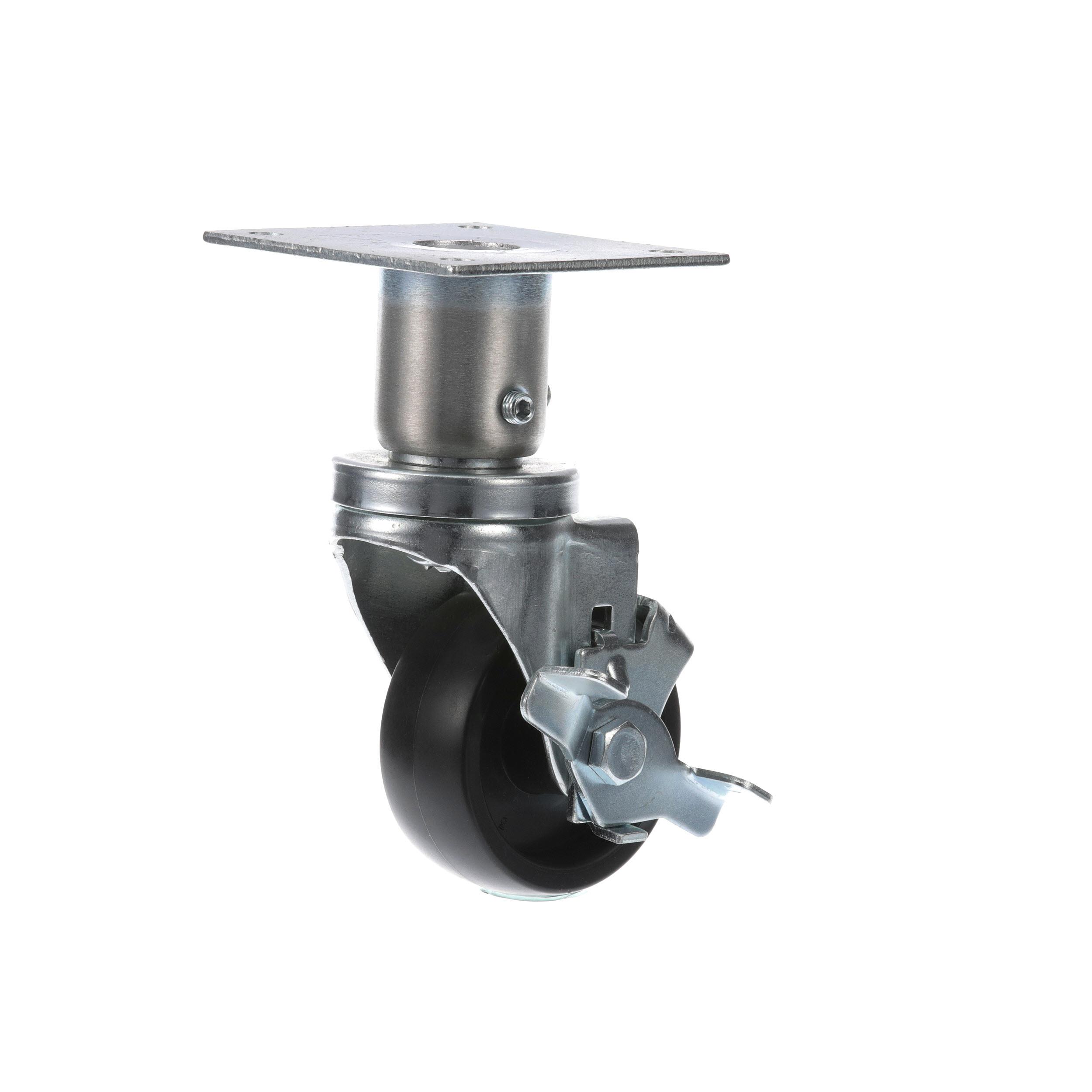

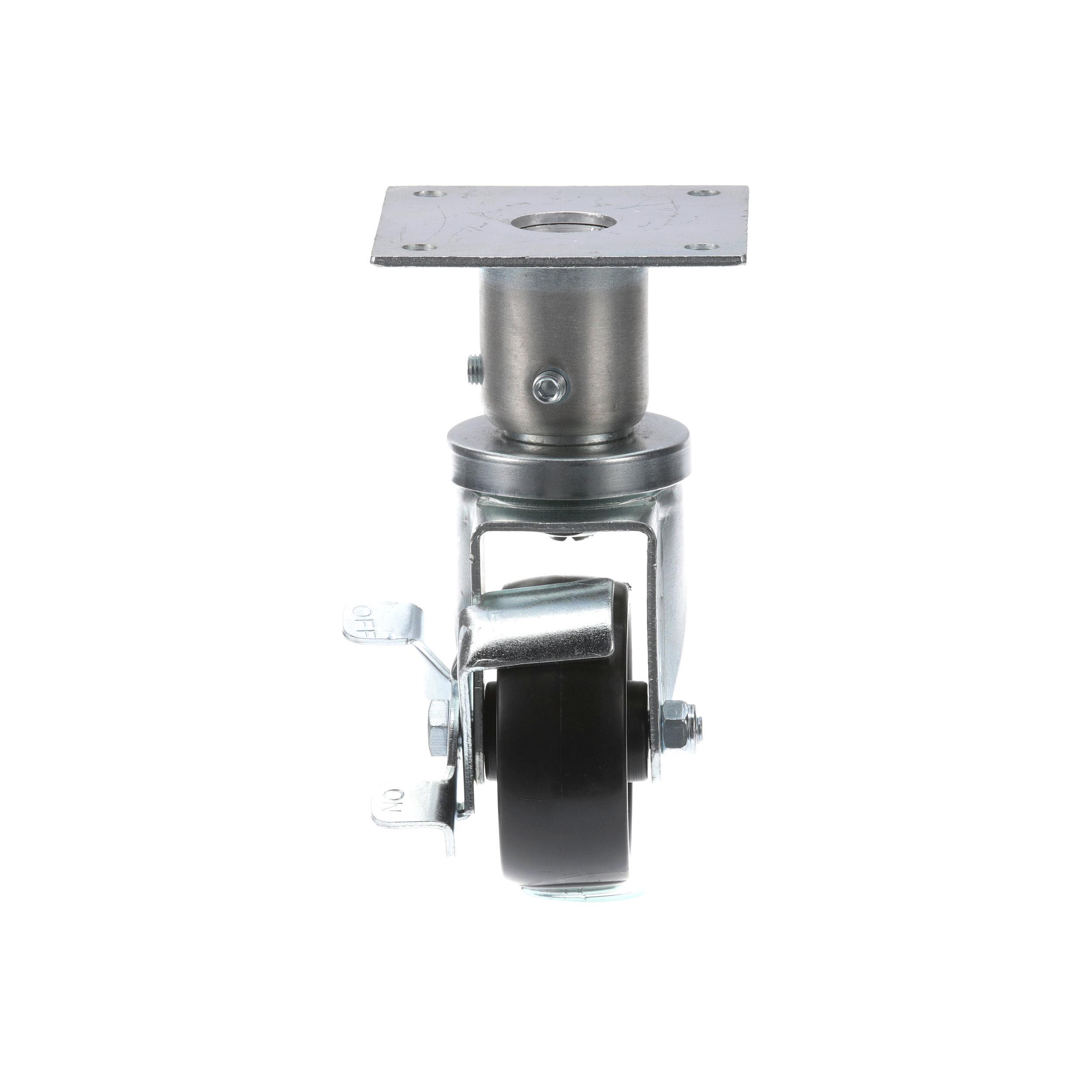

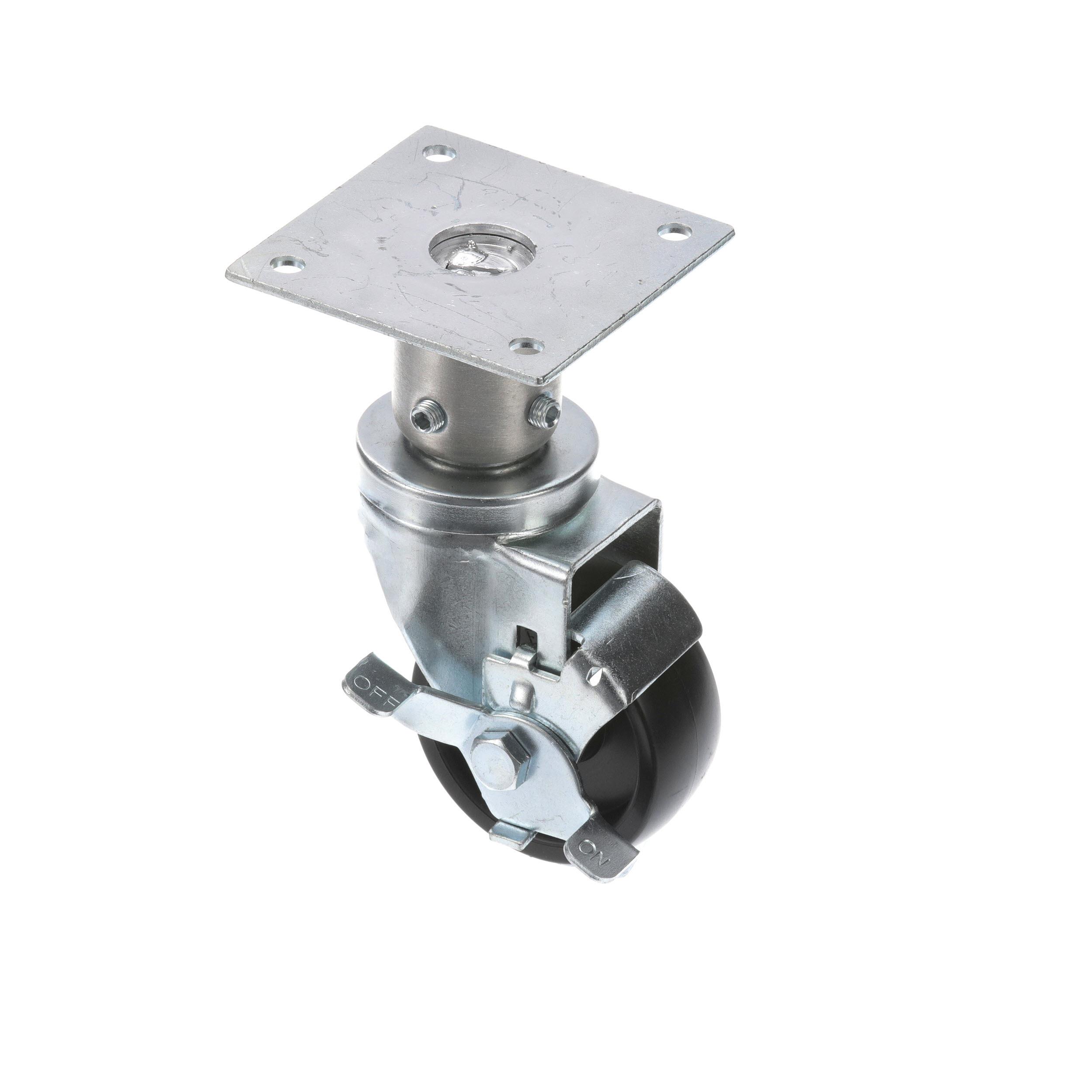

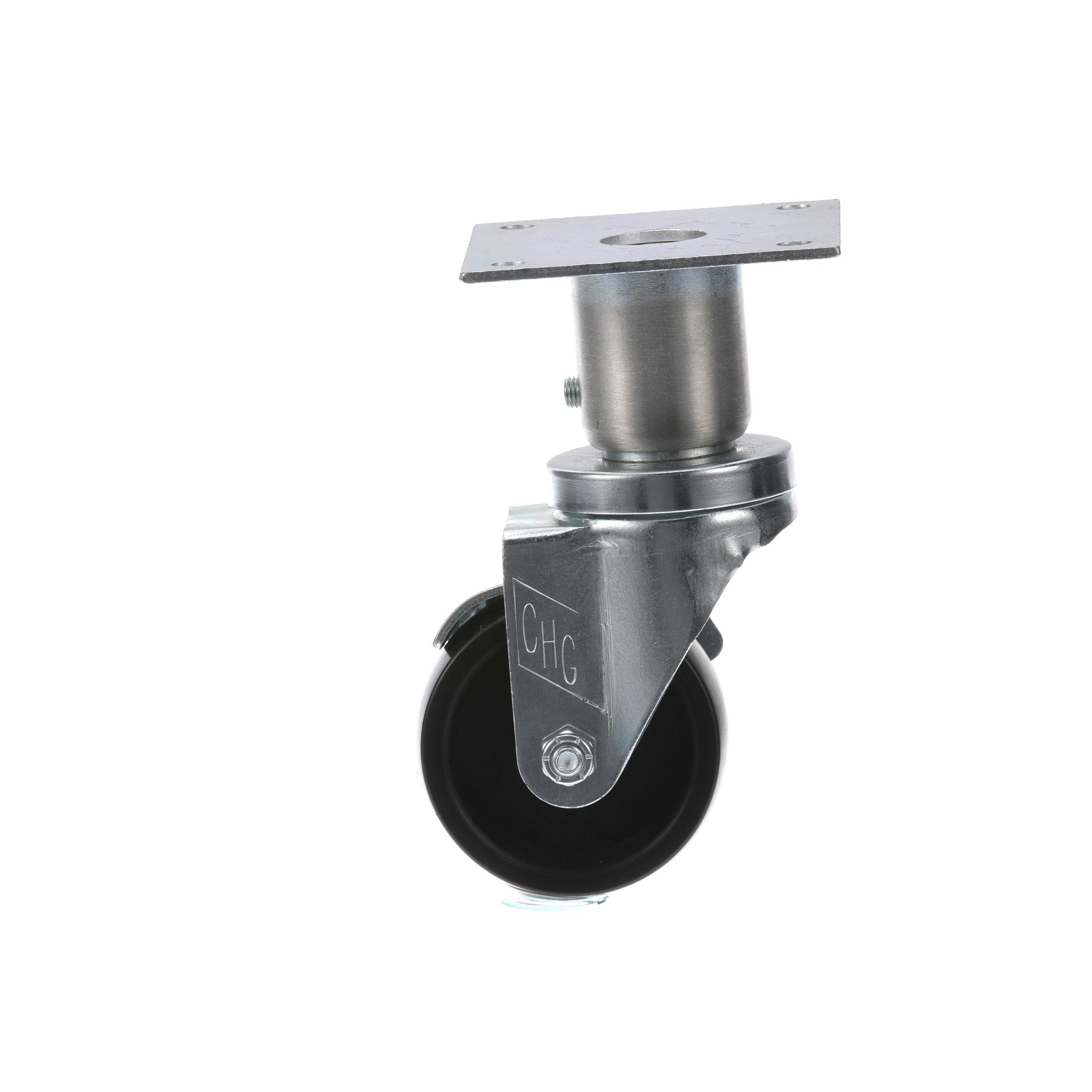

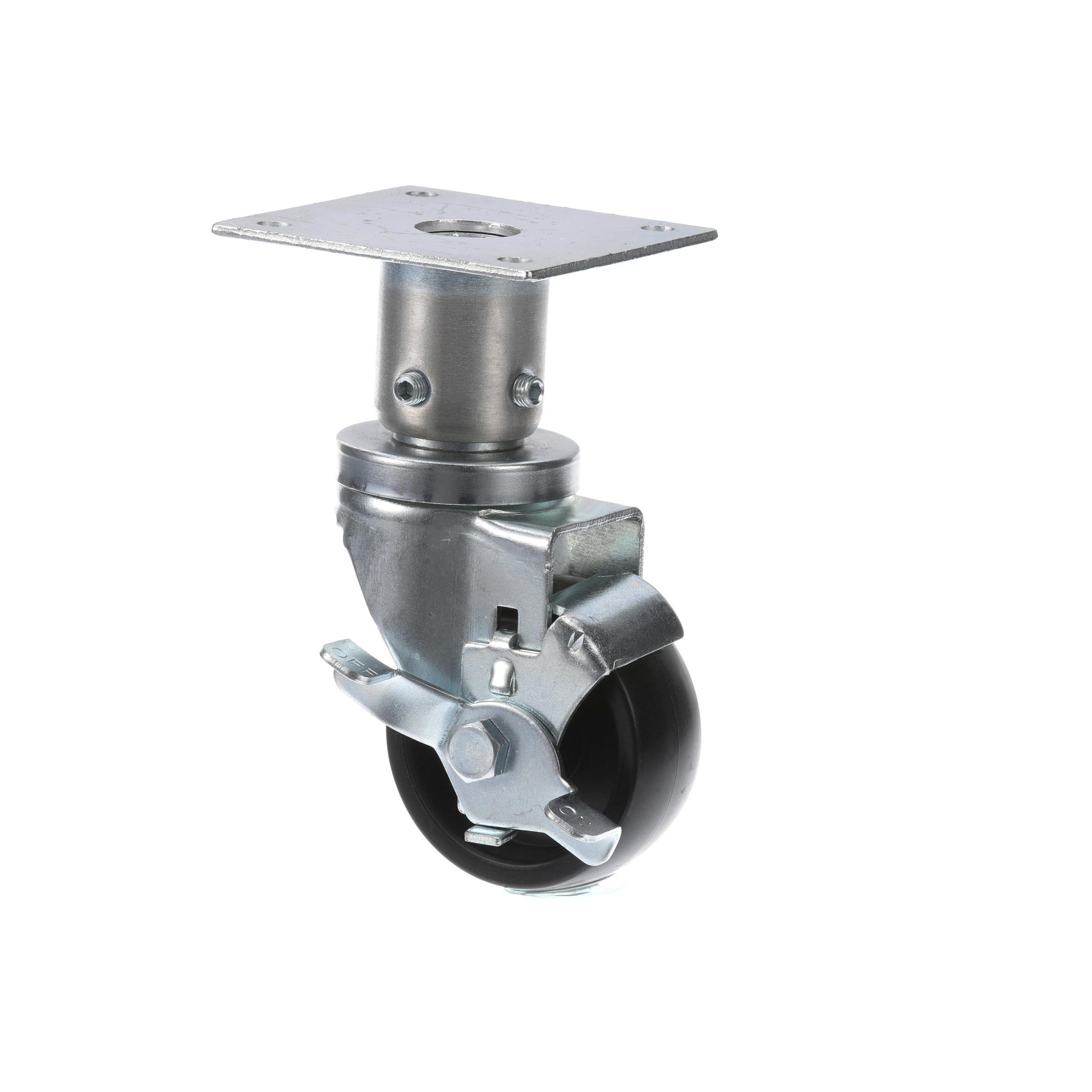

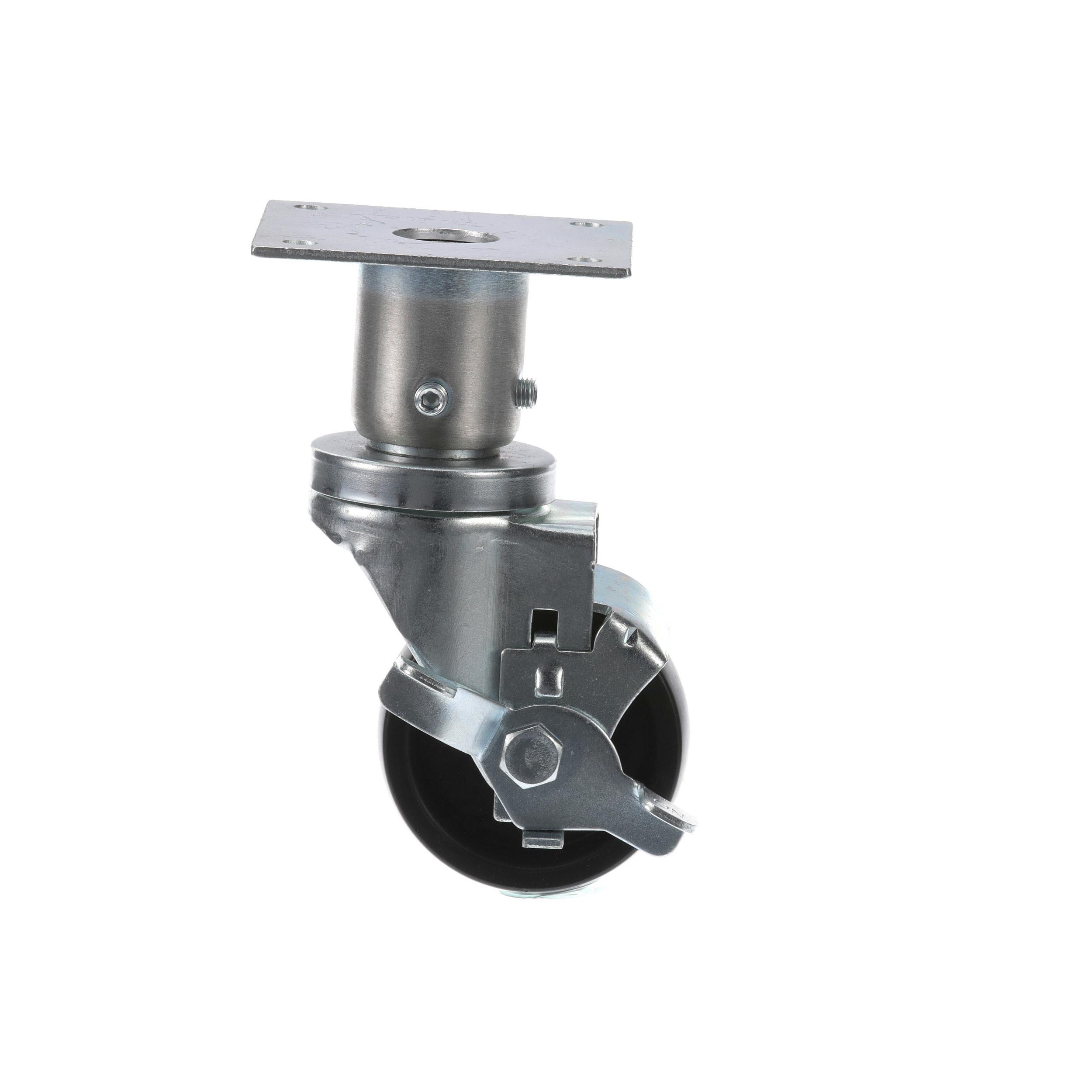

    Medium Duty 3-1/2" x 3-1/2" Plate 1-5/8" OD Adjustable Caster Leg With 3" Black Polyolefin Wheel With Brake

    • Medium Duty 3-1/2" x 3-1/2" Plate 1-5/8" OD Adjustable Caster Leg With 3" Black Polyolefin Wheel With Brake
    • Designed specifically for fryers and other "hot content" equipment that rests on pitched floors and must be moved for cleaning or service
    • Caster is designed with a special retaining feature that keeps the leg attached to the caster during adjustment and movement to avoid dangerous content spillage
    • 1-5/8" satin stainless steel construction
    • 1-1/4" (32mm) tread width
    • 3" (76mm) OD black solid rubber wheel
    • 3-5/16" (85mm) swivel radius
    • Load capacity 200 lbs. (90kg) per wheel
    • Furnished with side brake
    • 6" (152mm) minimum overall load height
    • 1/2" (12mm) height adjustment
    • Furnished with two locking set screws to secure height adjustment

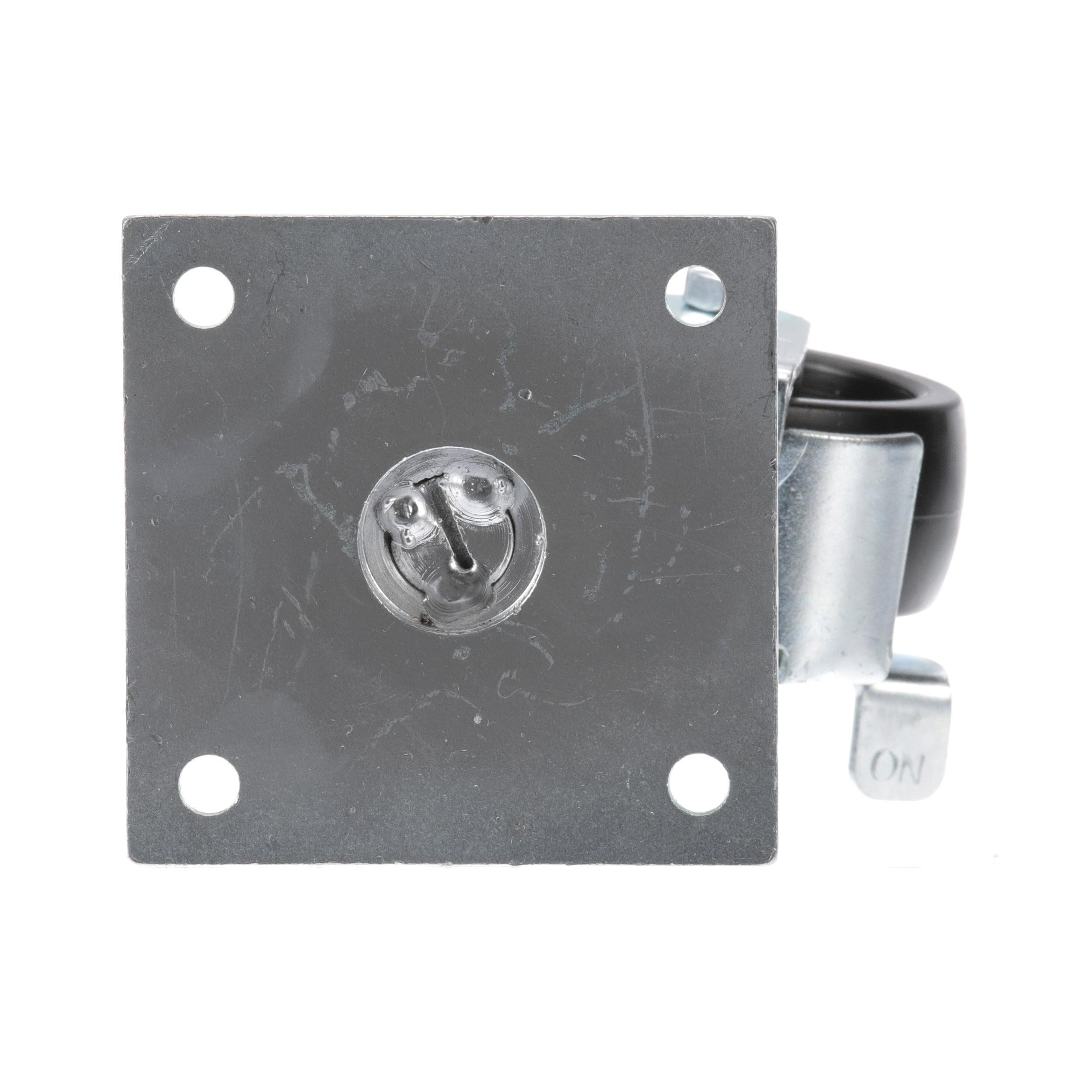

    • 3-1/2" x 3-1/2" (89mm x 89mm) square, 11-gauge, painted steel mounting plate with round mounting holes space on 2-5/8" x 2-5/8" centers
    • Mounting holes accept 1/4" diameter bolts/screws
    • Operating temperature range of -20°F to 180°F (-29°C to 82°C)
    Model No: C47-0316-C
    Item No.: 1002494

    Related Resources


    SPC-C47-03x6-C.pdf
    $0.00
    i h
    Products specifications
    LOAD RATING 200 LBS
    CASTER DUTY MEDIUM
    FINISH / COLOR SATIN
    MOUNTING TYPE WELDED MOUNTING PLATE
    THREAD / PLATE / STEM SIZE 003.500 X 003.500
    WHEEL DIAMETER 3 INCHES
    WHEEL MATERIAL BLACK POLYOLEFIN
    BRAKE TYPE SIDE
    BEARING TYPE NONE
    LEG HEIGHT 6 INCHES
    LEG MOUNTING TYPE WELDED MOUNTING PLATE
    LEG THREAD / PLATE / STEM SIZE 003.500 X 003.500
    DIAMETER 1.625 INCHES
    MEASUREMENT TYPE IMPERIAL
    PRIMARY MATERIAL STAINLESS STEEL
    SECONDARY MATERIAL STEEL
