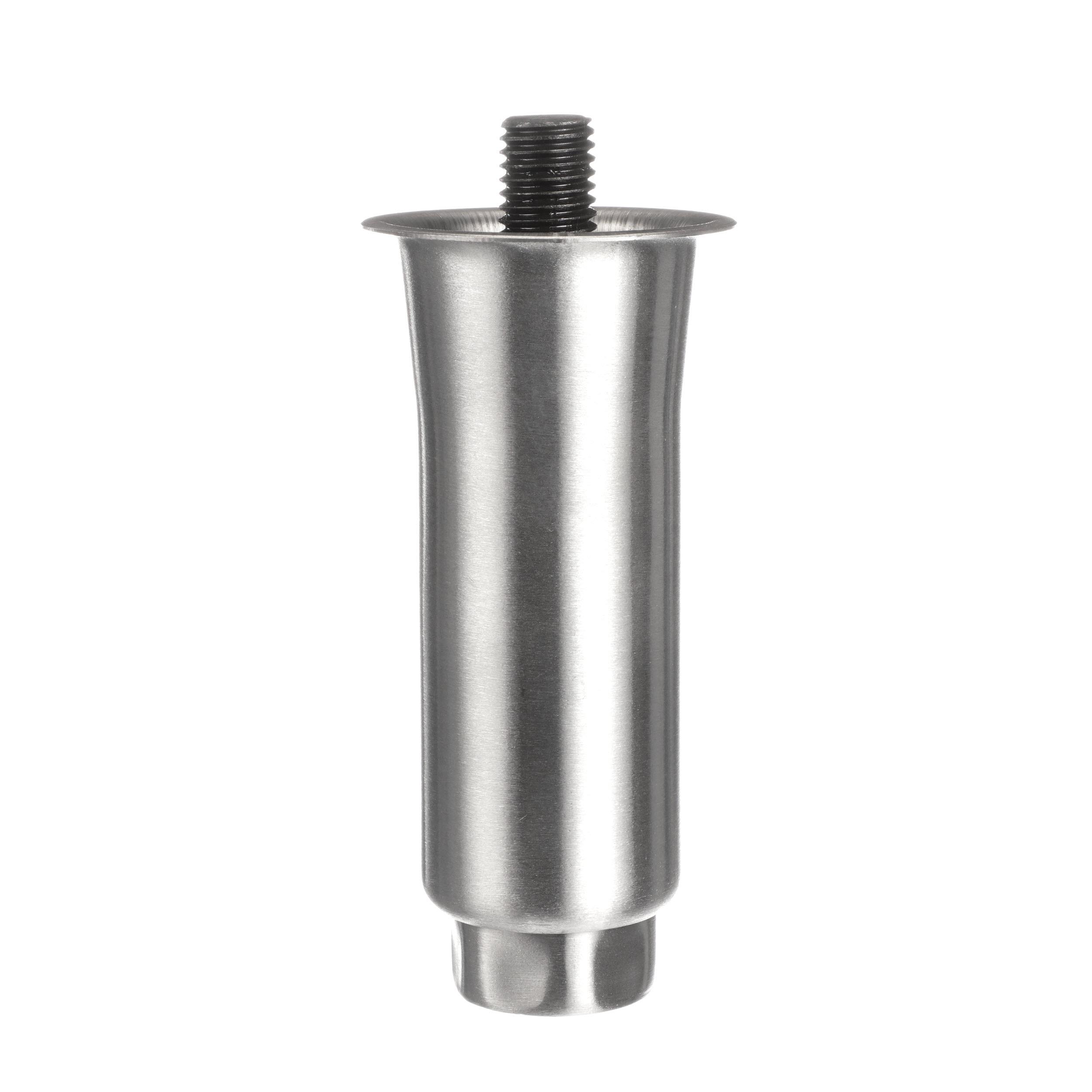

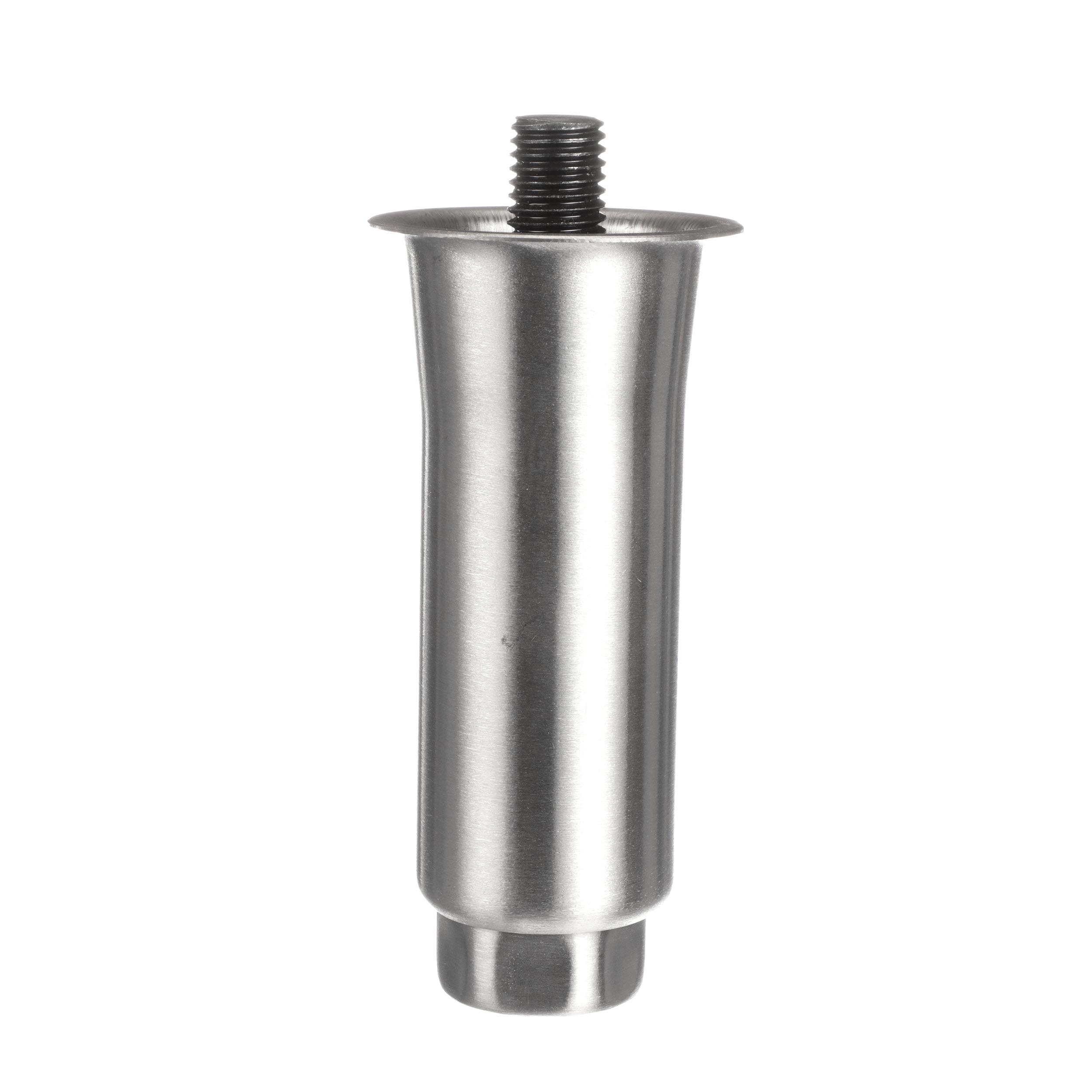

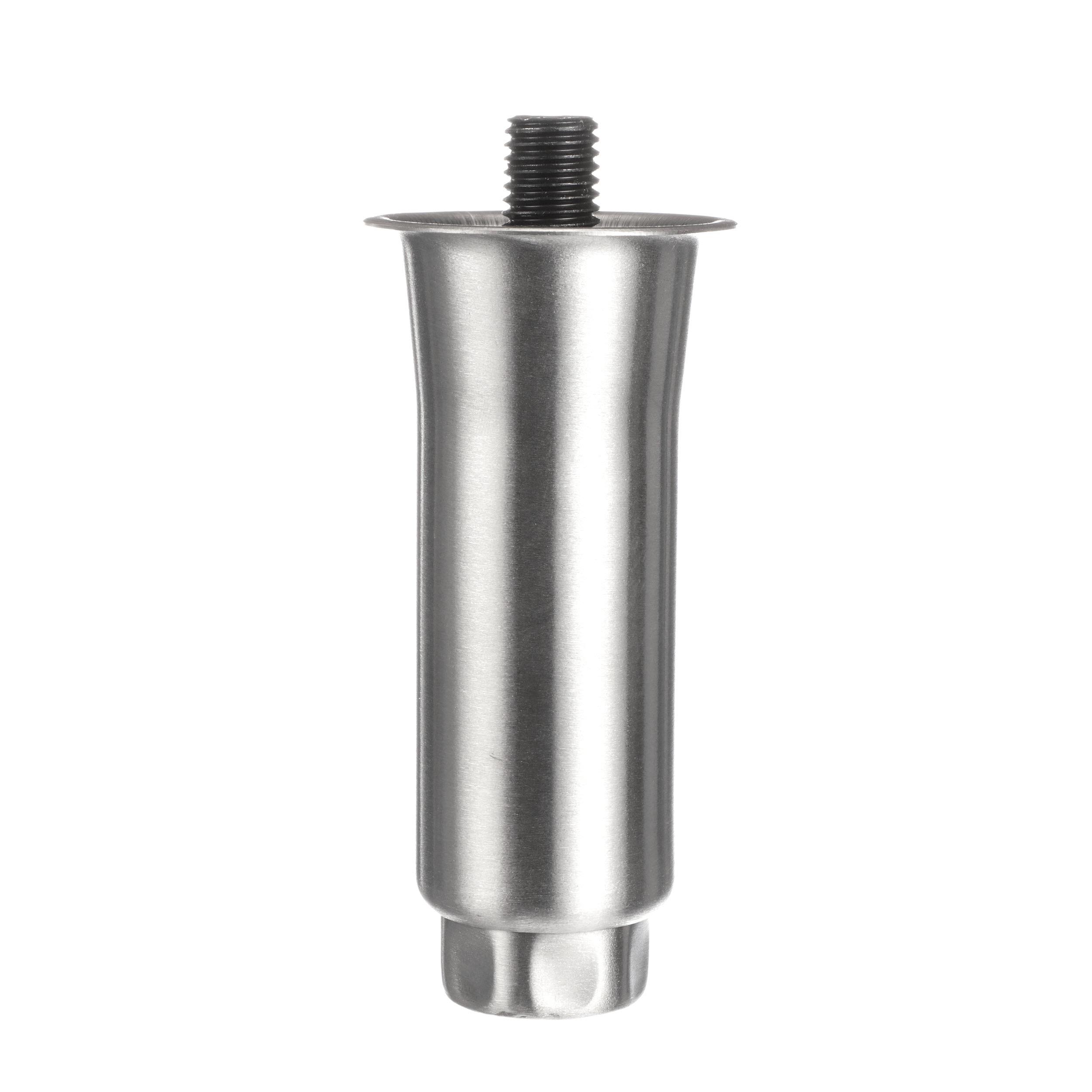

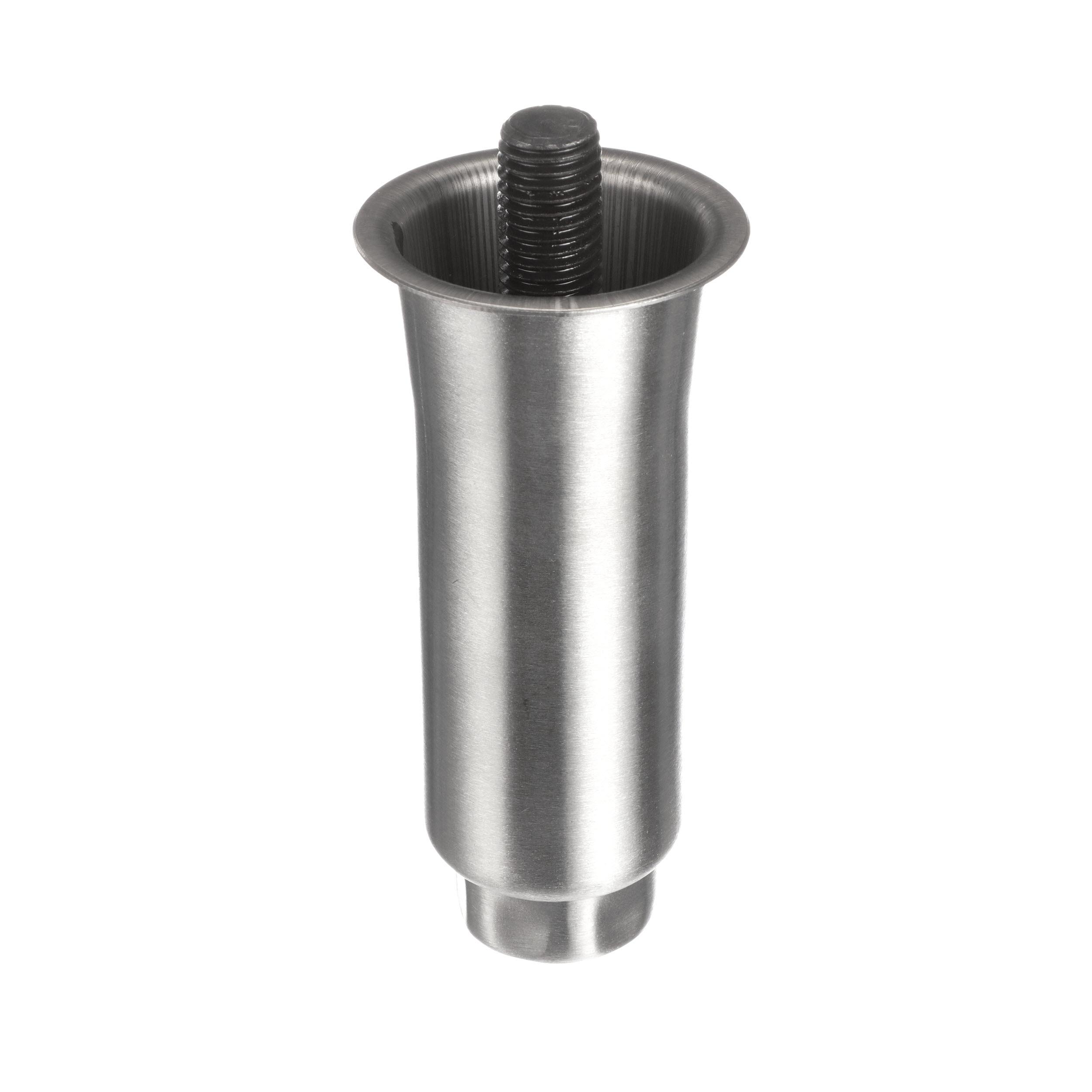

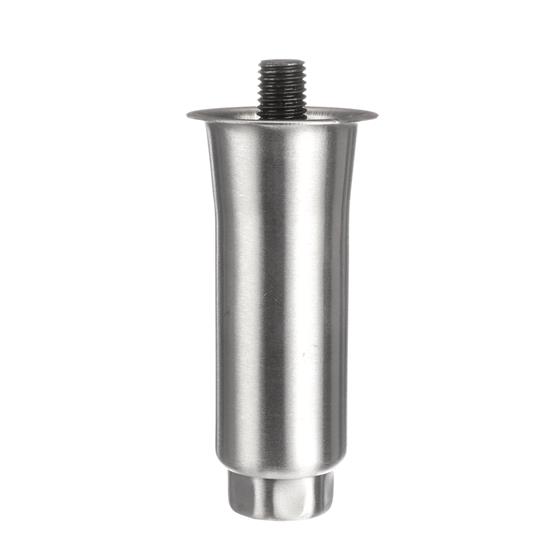

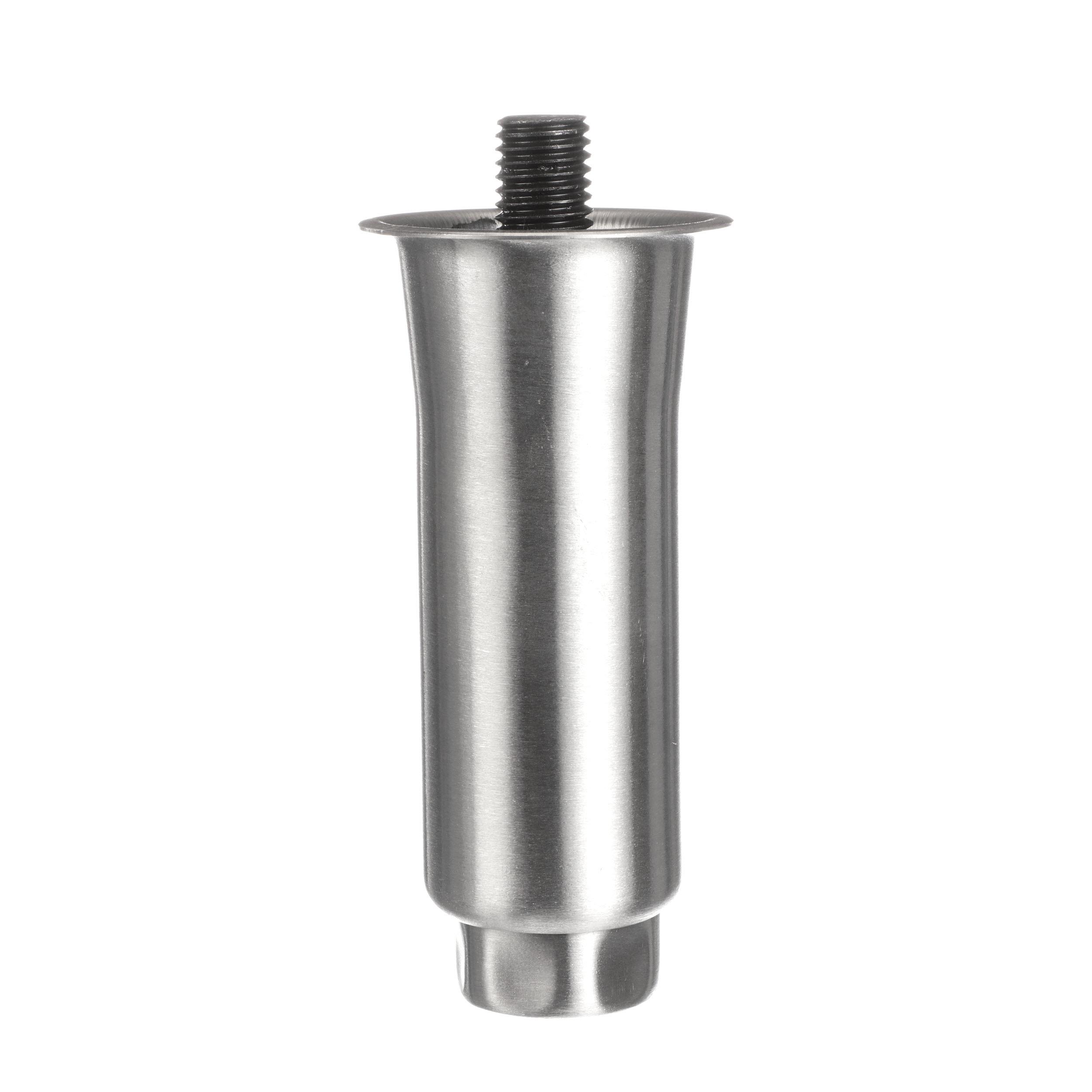

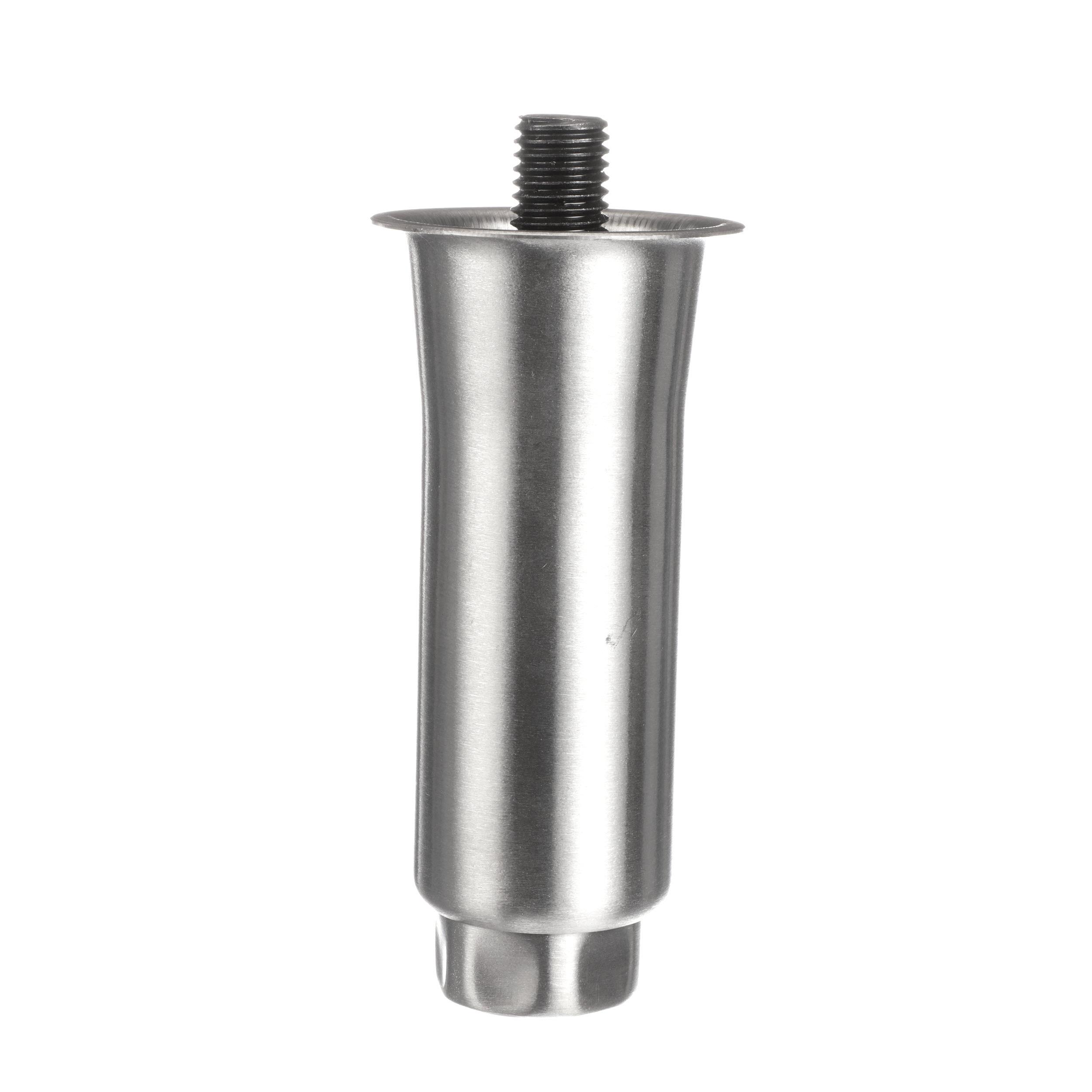

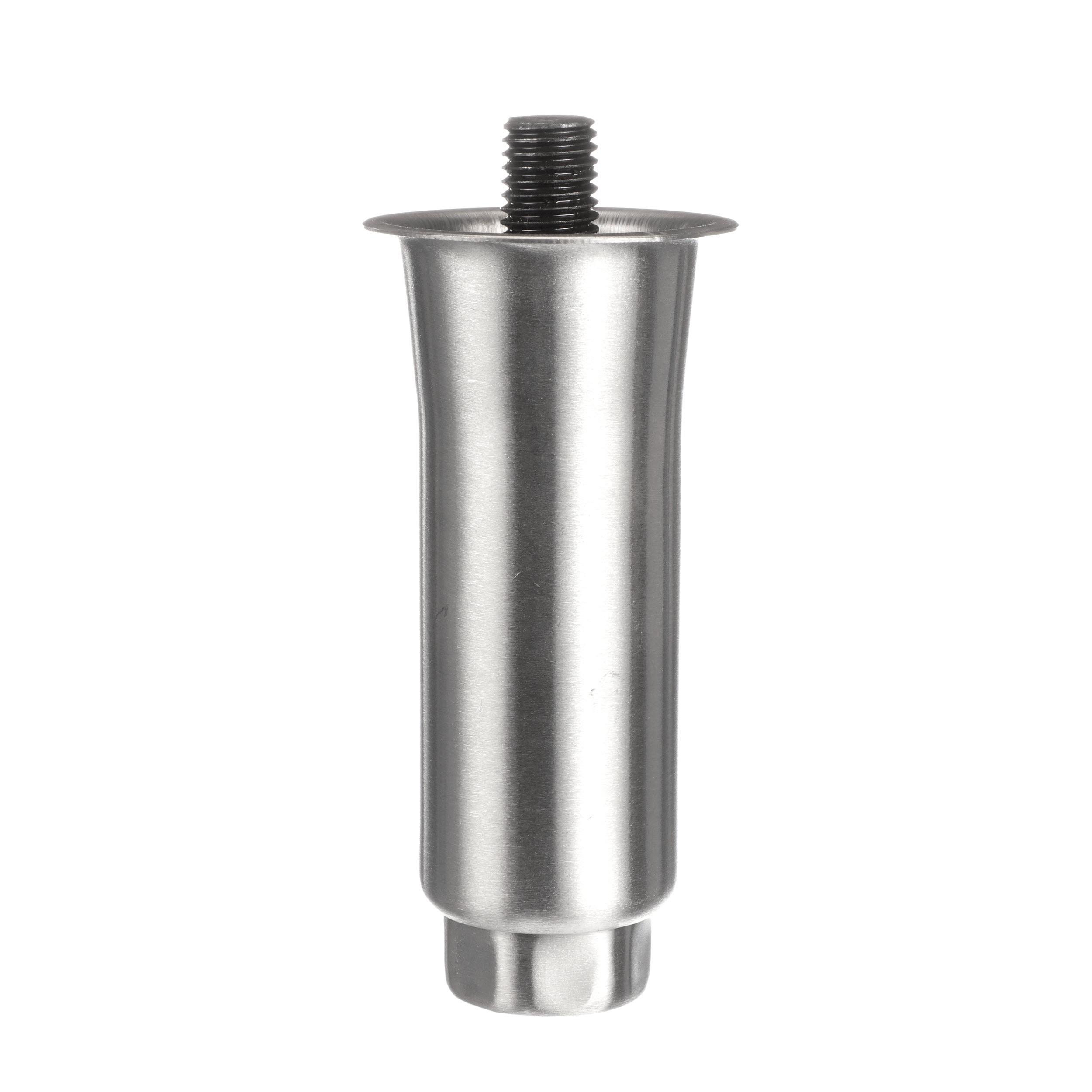

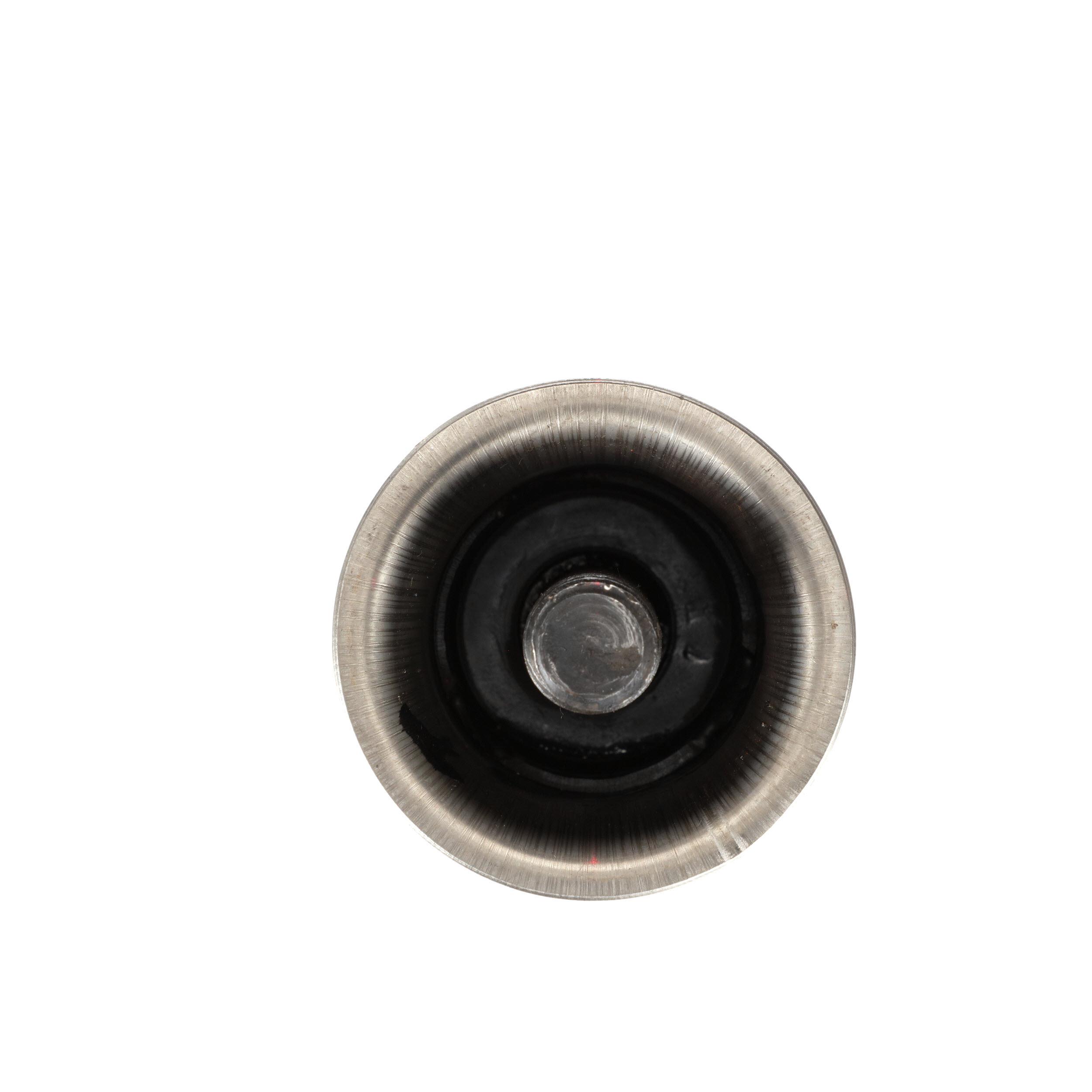

    2" OD x 6" H Stainless Steel Flared Top Equipment Leg With 3/4-10 x 3/4" L Protruding Stud And Adjustable Hex Toe

    • 2" OD x 6" H Stainless Steel Flared Top Equipment Leg With 3/4-10 x 3/4" L Protruding Stud And Adjustable Hex Toe
    • Heavy duty stainless steel construction
    • #4 satin finish
    • 6" OA height in closed position
    • Body had stylish flared shape from 2"OD to 2-3/8"OD
    • Furnished with 3/4-10 x 3/4" L protruding mounting stud
    • Adjustable hex toe provides up to 1-3/4" adjustment for leveling of equipment
    • Wrench flats on hex toe permit easy field adjustment during installation
    • 2,000 lbs static load rating
    Model No: A79-5048-C
    Item No.: 1001808

    Related Resources


    SPC-A79-5048-C.pdf
    $0.00
    i h
    Products specifications
    LOAD RATING 2000 LBS
    FINISH / COLOR SATIN
    LEG HEIGHT 6 INCHES
    LEG MOUNTING TYPE PROTRUDE STUD
    TOE TYPE HEX TOE
    LEG THREAD / PLATE / STEM SIZE 000.750-10
    DIAMETER 2 INCHES
    MEASUREMENT TYPE IMPERIAL
    PRIMARY MATERIAL STAINLESS STEEL
    SECONDARY MATERIAL STEEL
    ADJUSTMENT RANGE 001.750
