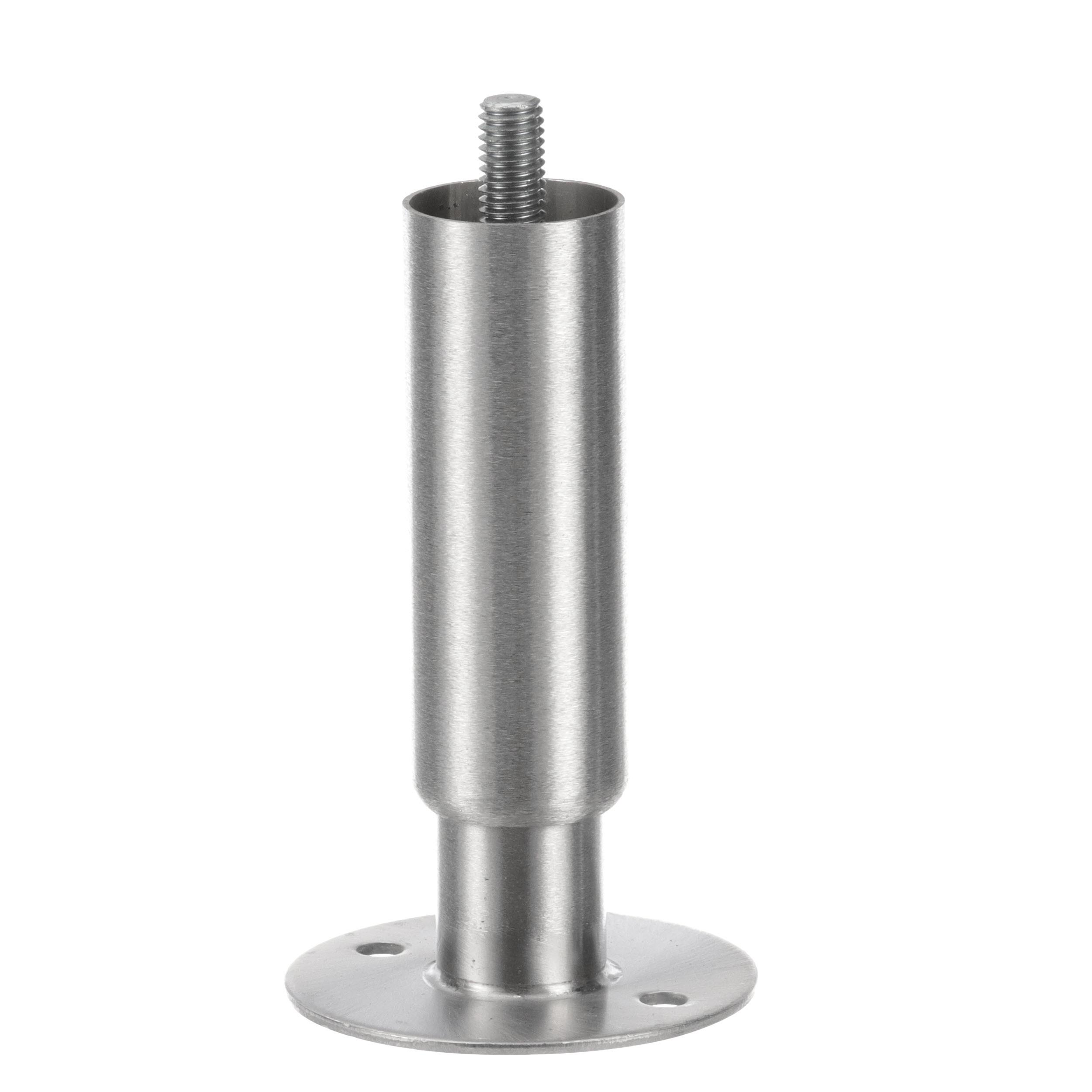

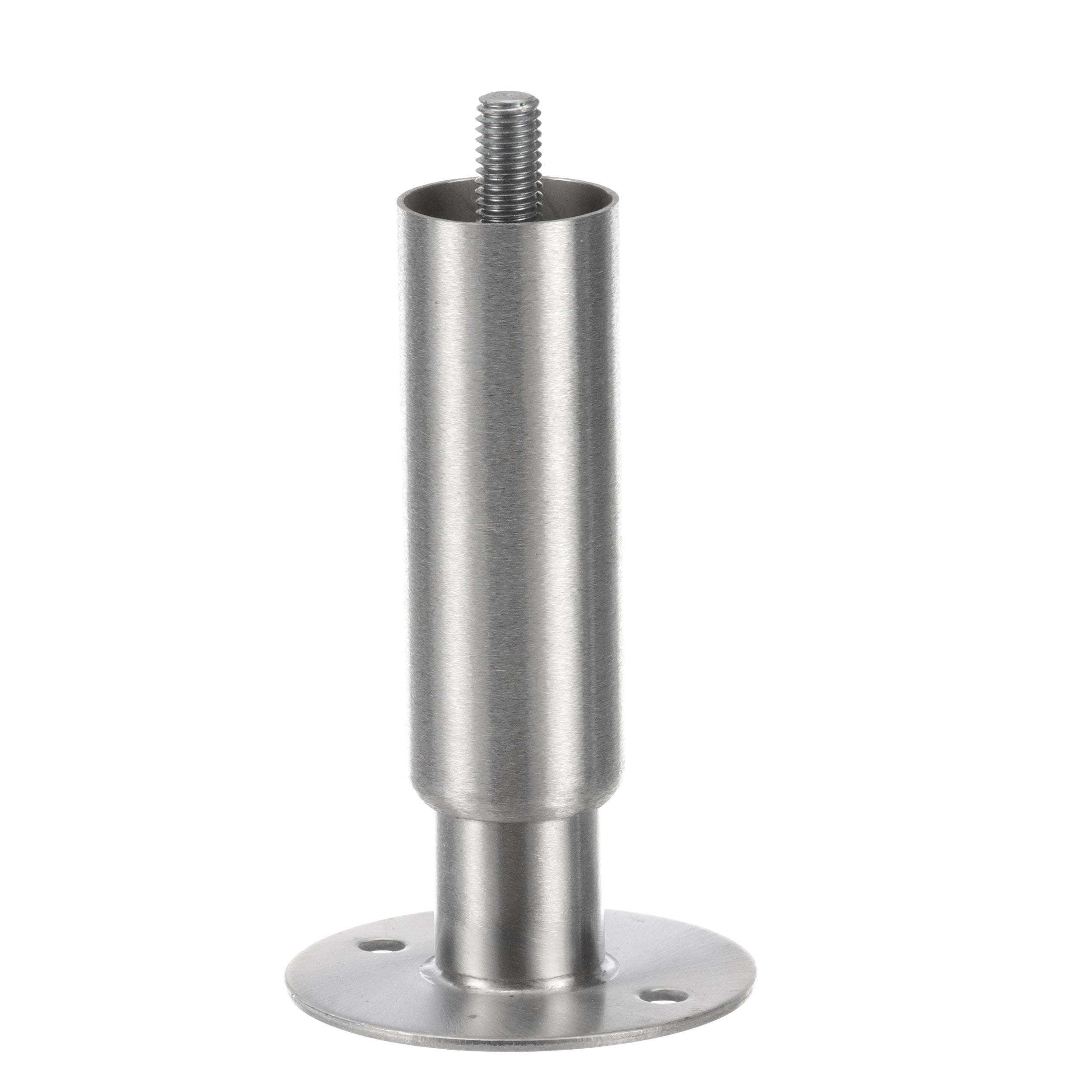

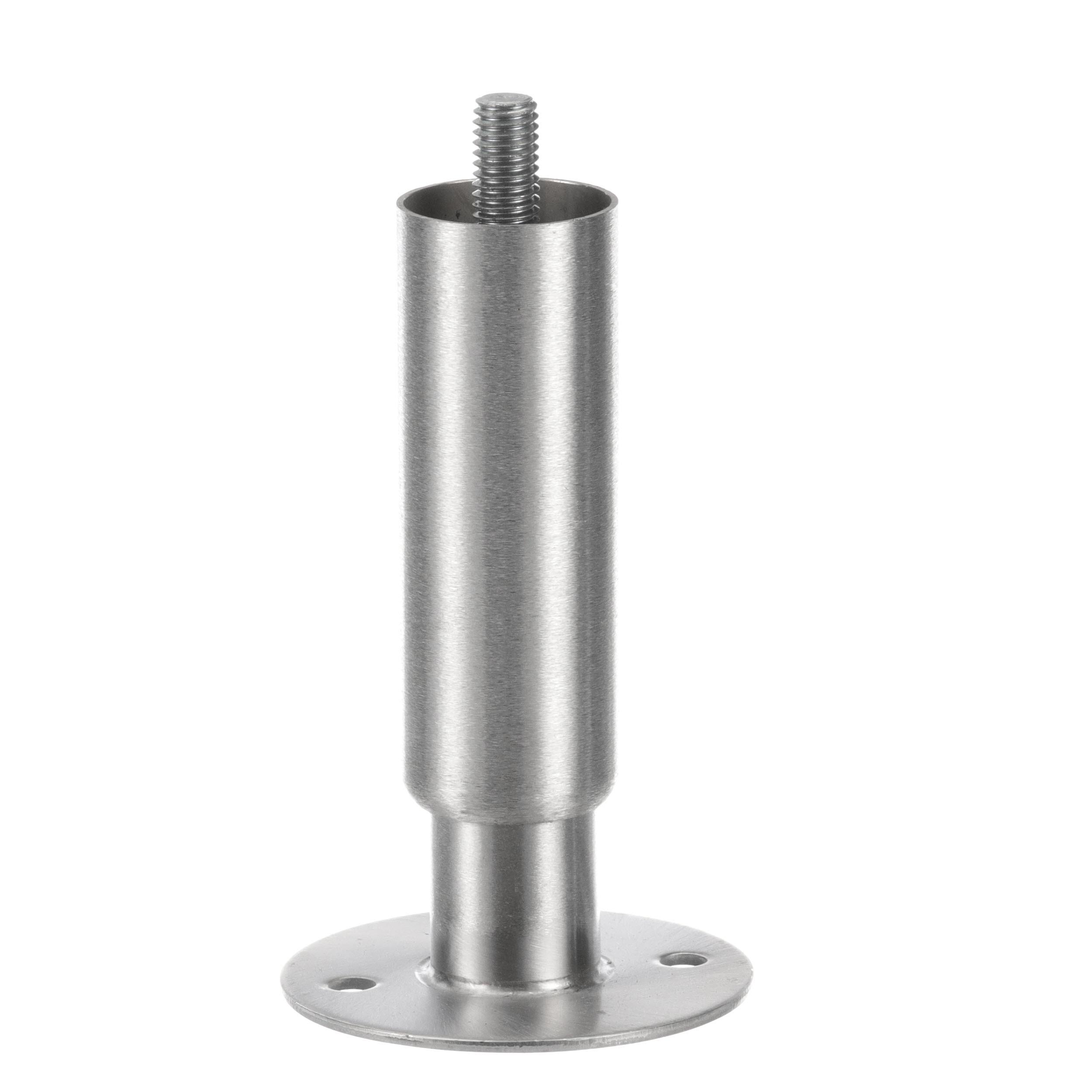

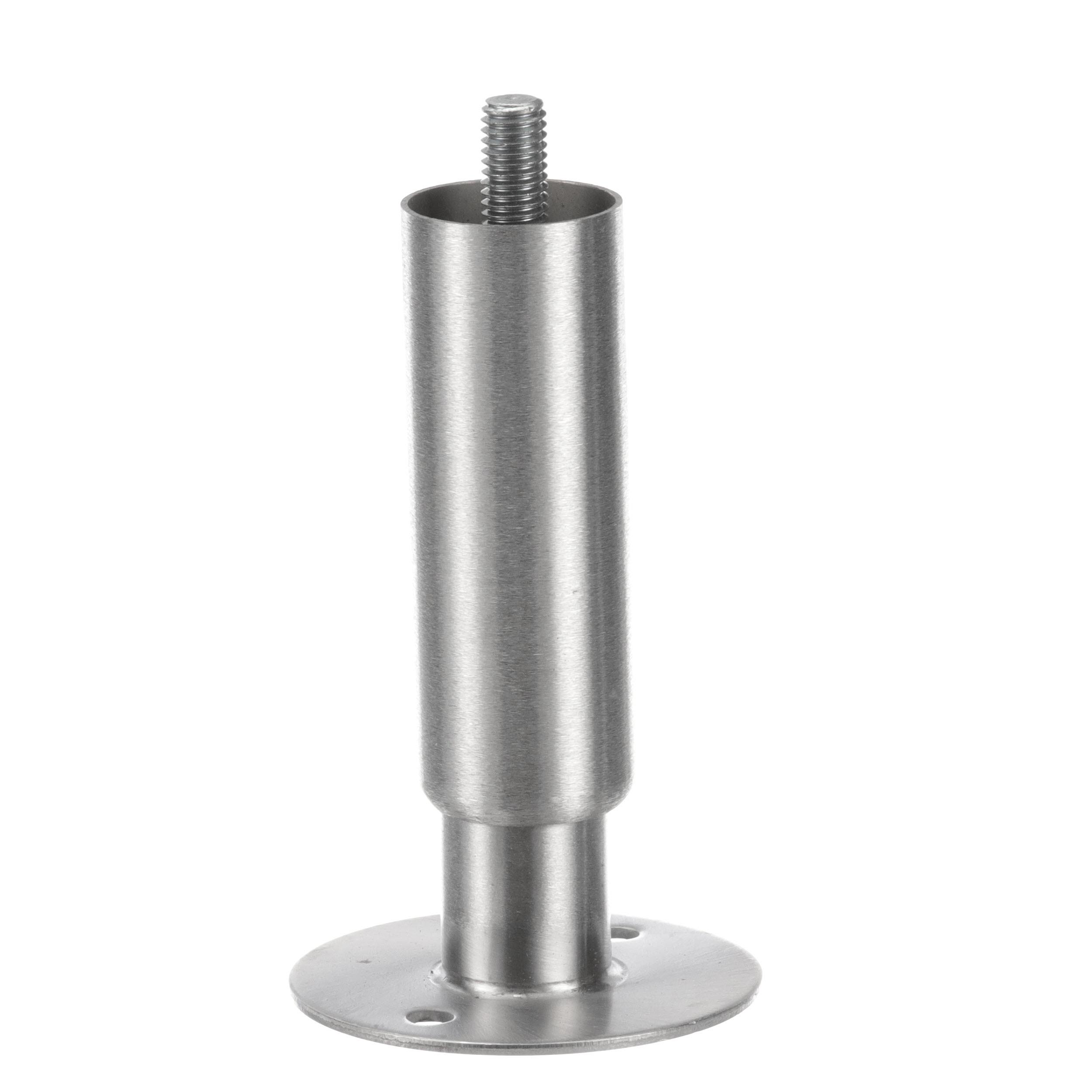

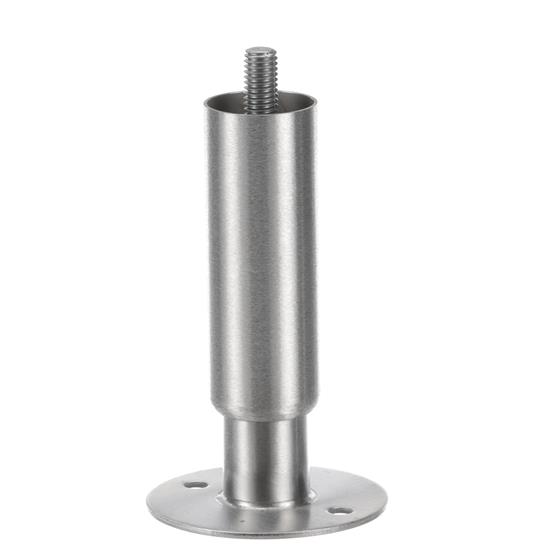

    1-5/8"OD x 6"H Stainless Steel Security Equipment Leg With 1/2-13 x 3/4"L Protruding Stud And Adjustable Flanged Toe With Holes

    • 1-5/8"OD x 6"H Stainless Steel Security Equipment Leg With 1/2-13 x 3/4"L Protruding Stud And Adjustable Flanged Toe With Holes
    • Specifically designed for marine, prison and institutional applications where equipment must be securely fastened to the floor to prevent sudden movement or shifting
    • Meets SMACNA guidelines for seismic restraint when used with locking pin (not supplied) to secure leg to rebar anchor that is cemented in floor
    • 1-5/8" OD 16-gauge stainless steel construction
    • #4 Satin finish
    • 6" OA height in closed position
    • 1/2-13 x 3/4" L protruding mounting stud
    • Adjustable flanged toe provides up to 1-1/2" adjustment for leveling of equipment
    • 3-1/2" OD 12-gauge stainless steel flanged toe with two 11/32" mounting holes spaced 2-1/2" OC permits secure fastening to the floor
    • 2,000 lbs static load rating
    Model No: A50-9939-C
    Item No.: 1001656

    Related Resources


    SPC-A50-9939-C.pdf
    $0.00
    i h
    Products specifications
    LOAD RATING 2000 LBS
    FINISH / COLOR SATIN
    GAUGE 16 GAUGE
    LEG HEIGHT 6 INCHES
    LEG MOUNTING TYPE PROTRUDE STUD
    TOE TYPE FLANGED TOE WITH HOLES
    LEG THREAD / PLATE / STEM SIZE 000.500-13
    DIAMETER 1.625 INCHES
    MEASUREMENT TYPE IMPERIAL
    PRIMARY MATERIAL STAINLESS STEEL
    SECONDARY MATERIAL STEEL
    TUBING SHAPE ROUND
    ADJUSTMENT RANGE 001.500
