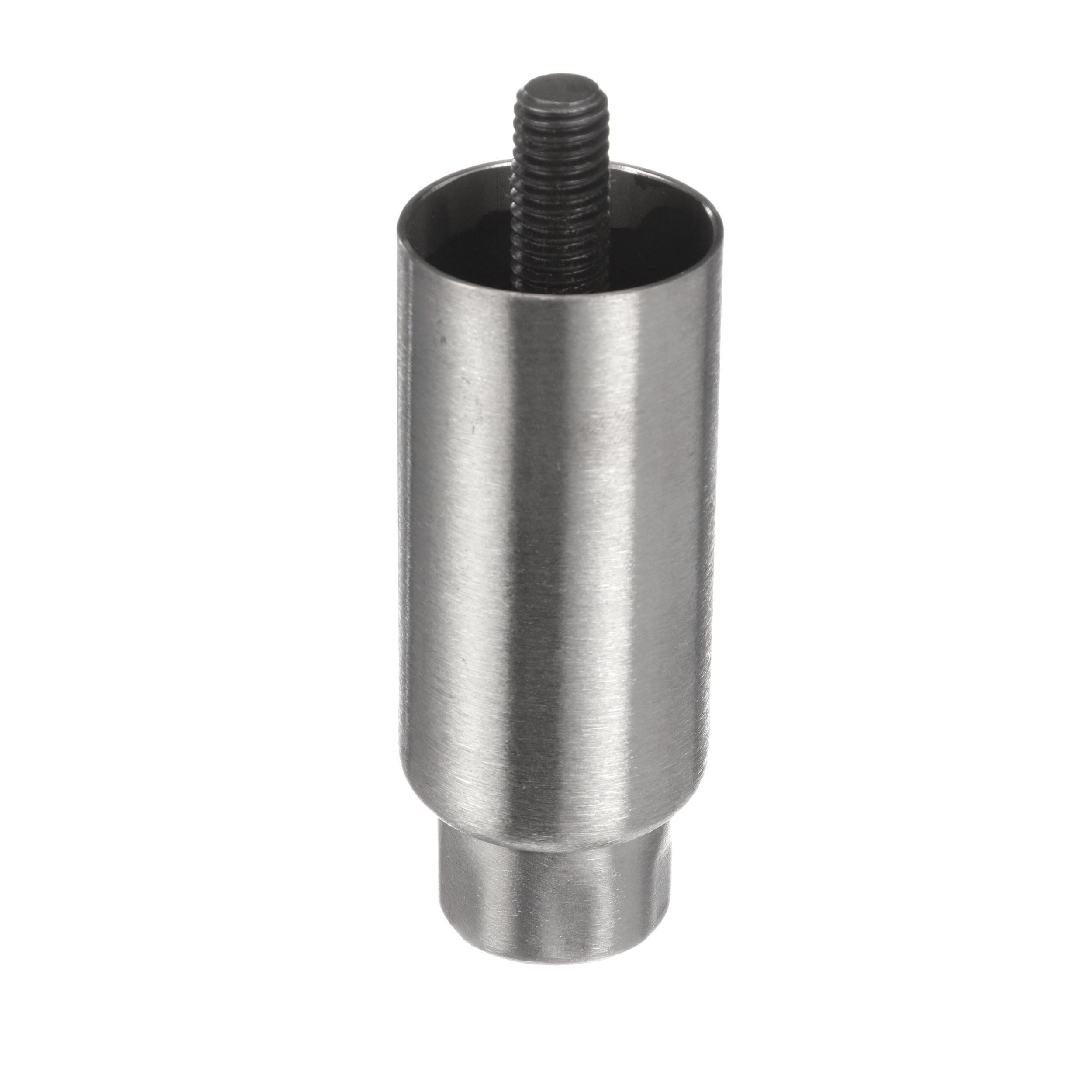

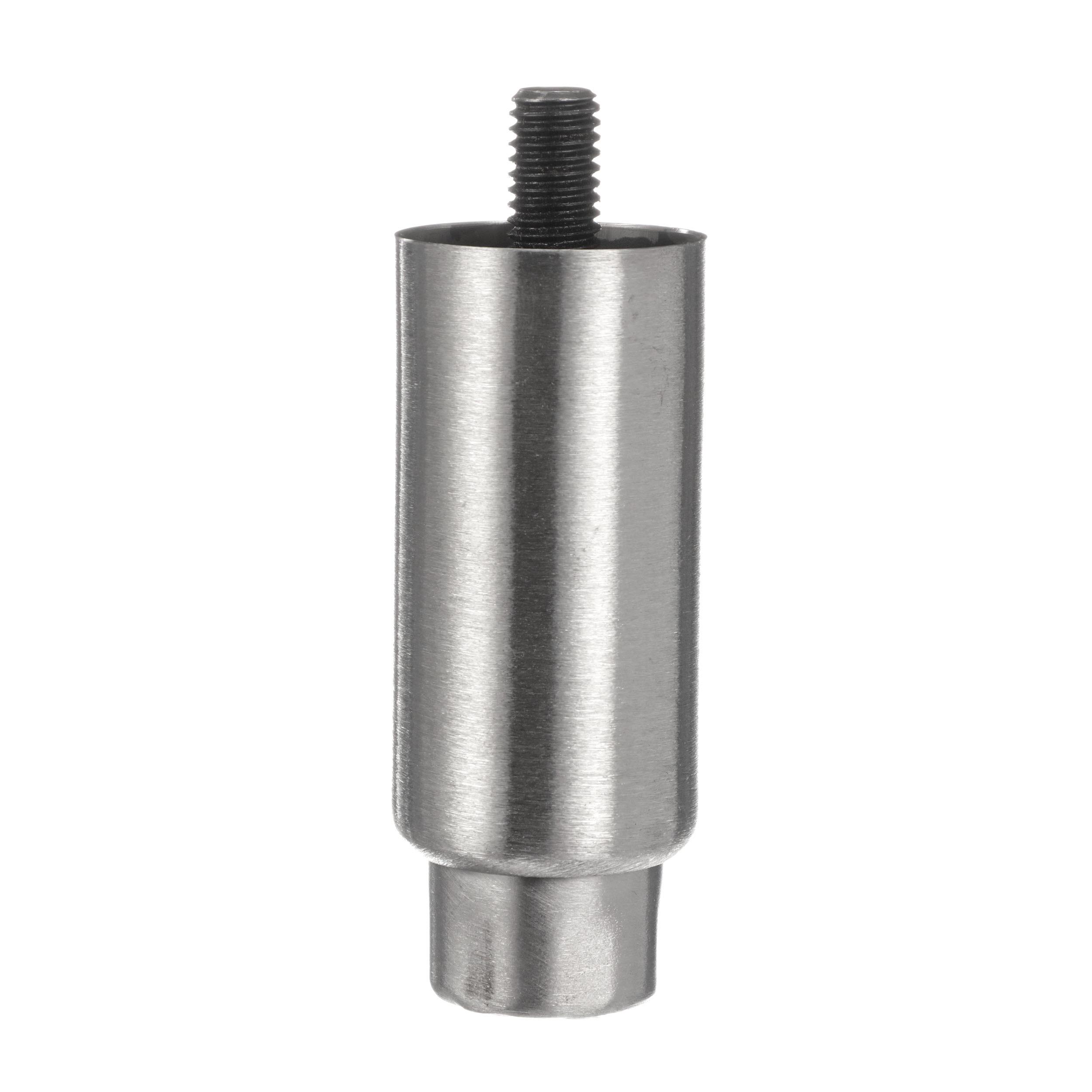

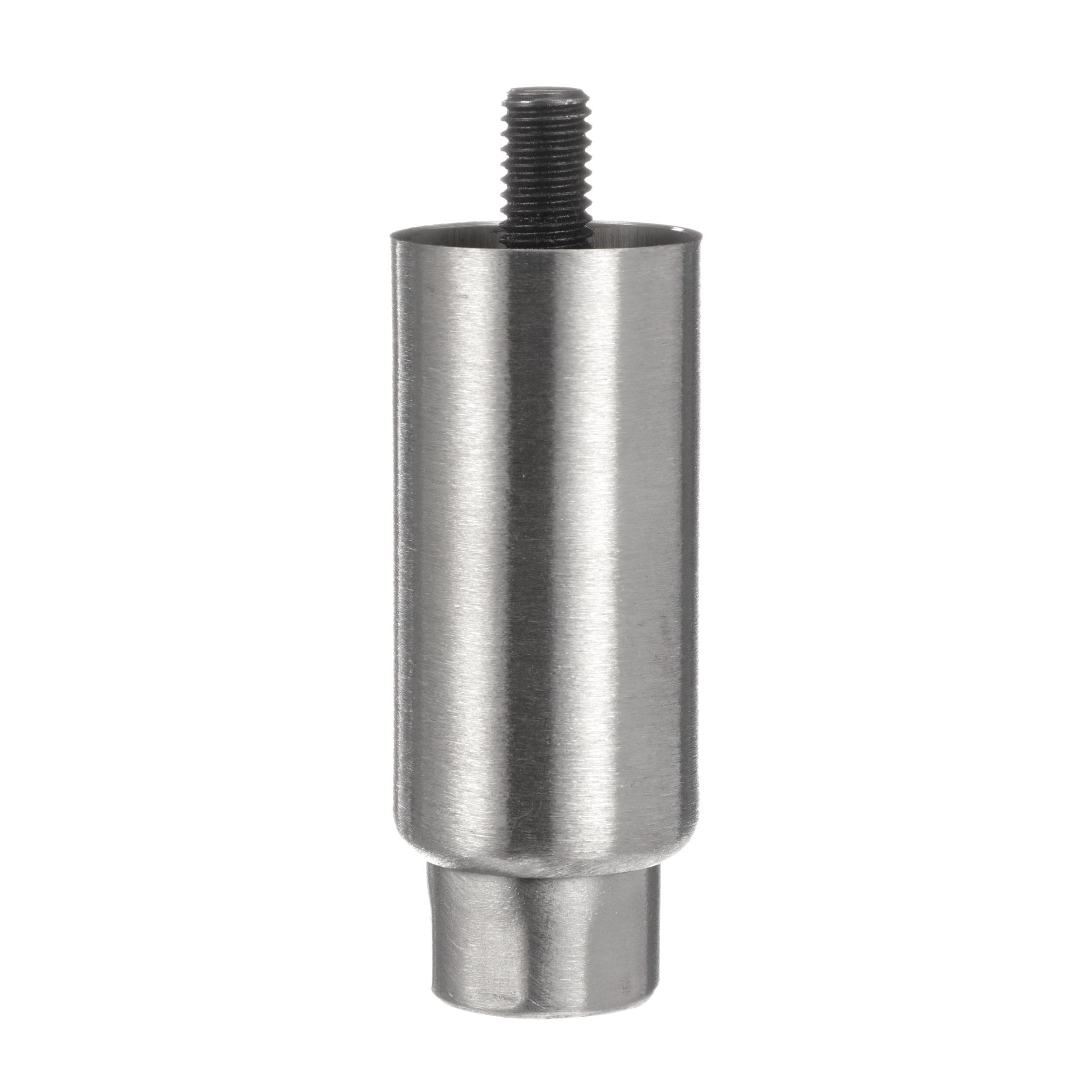

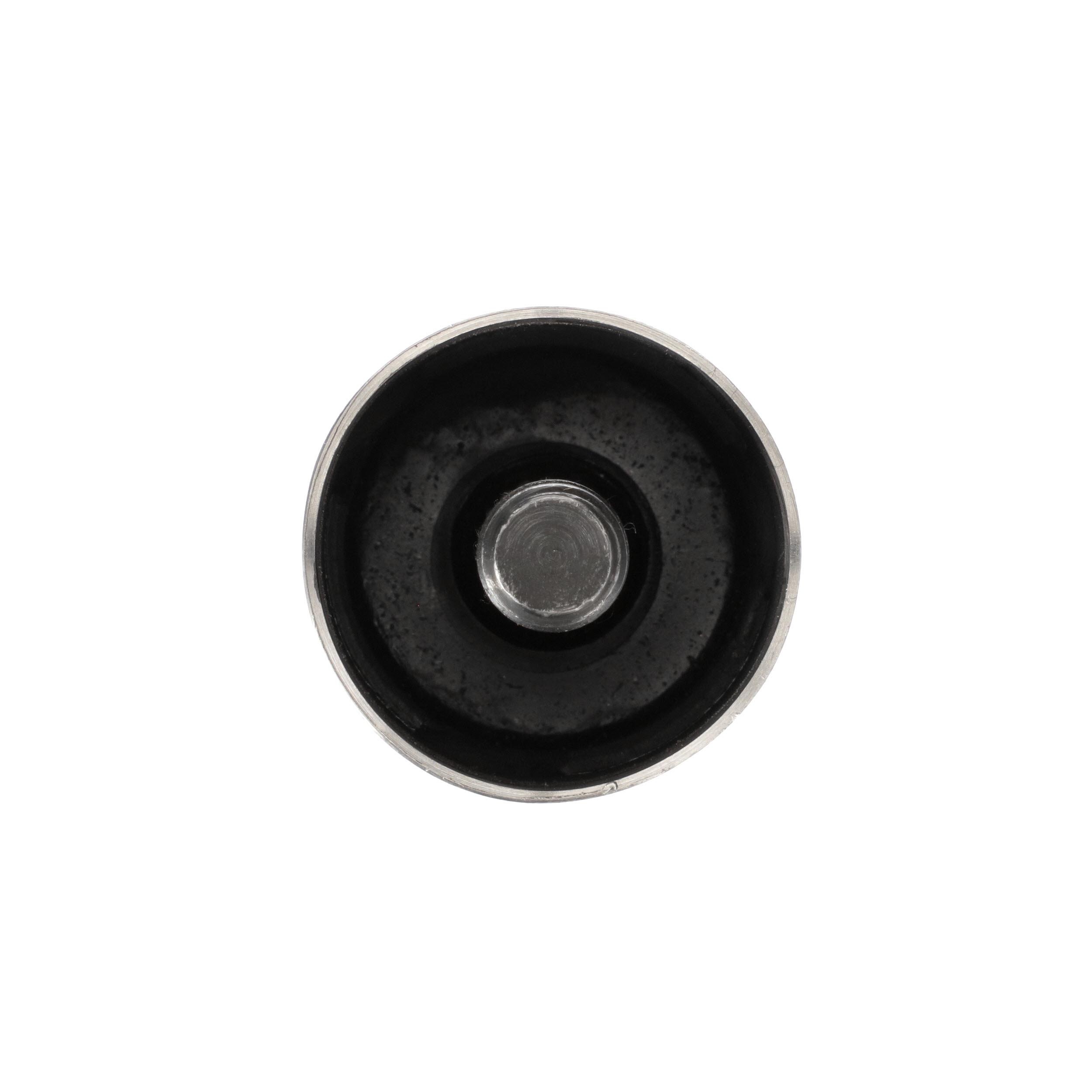

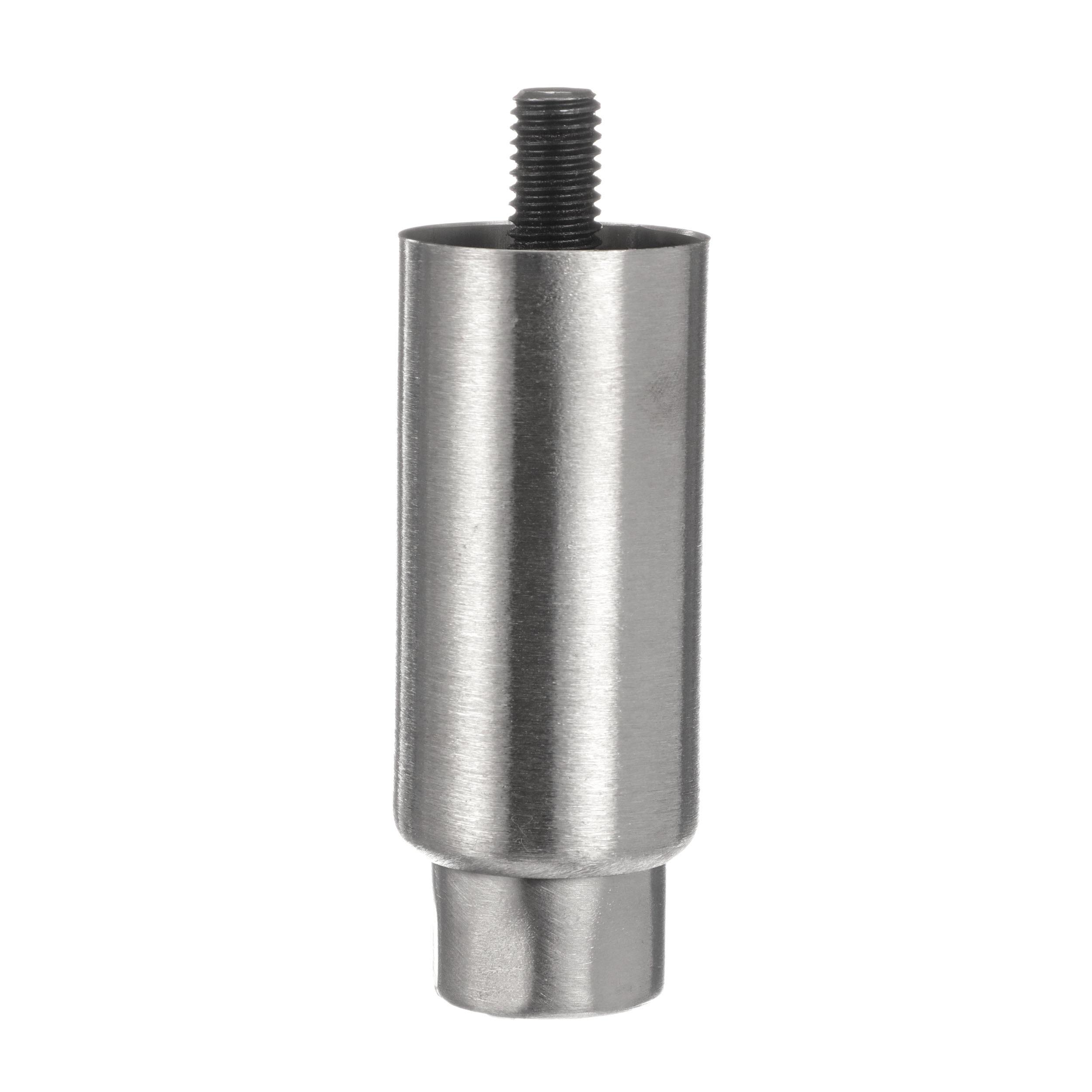

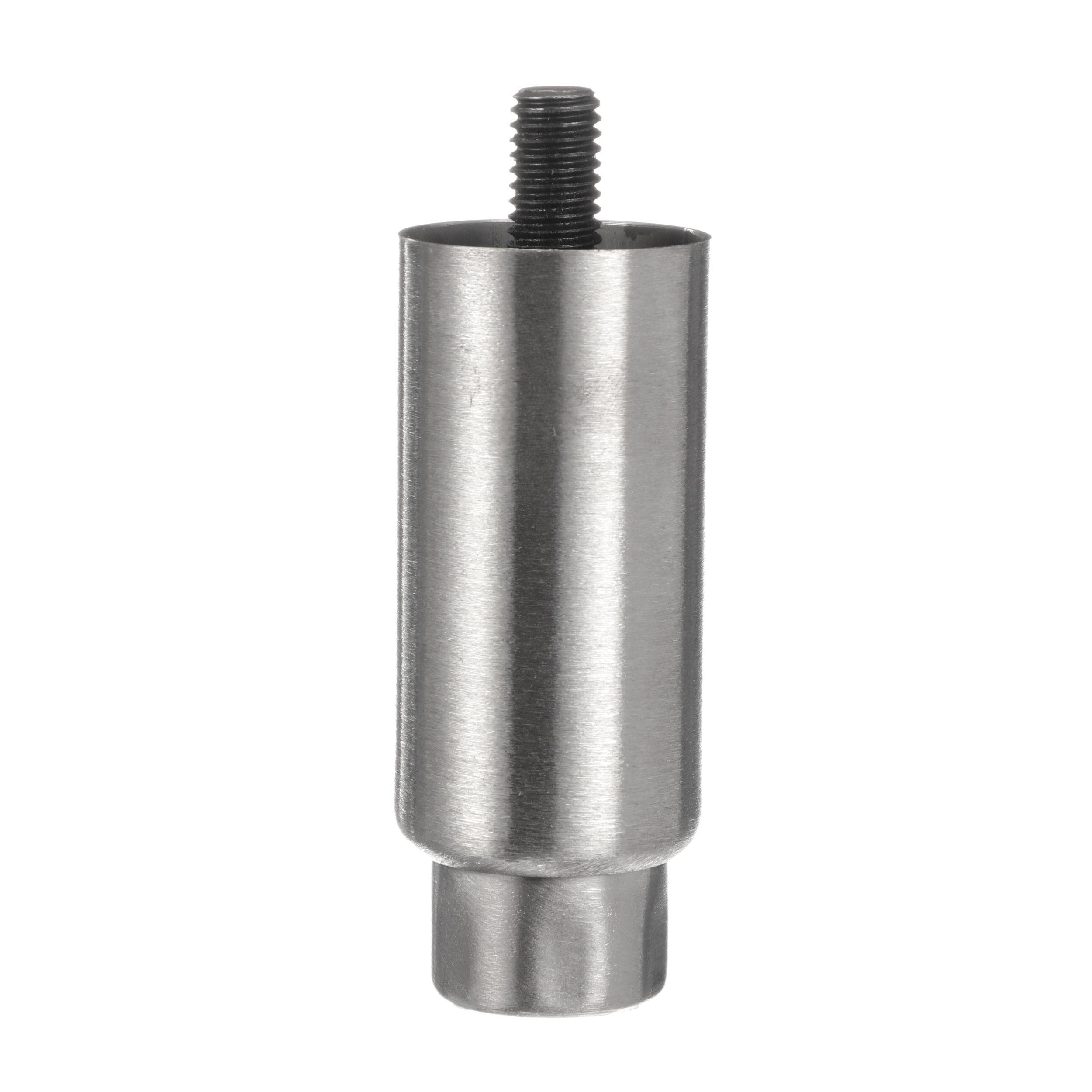

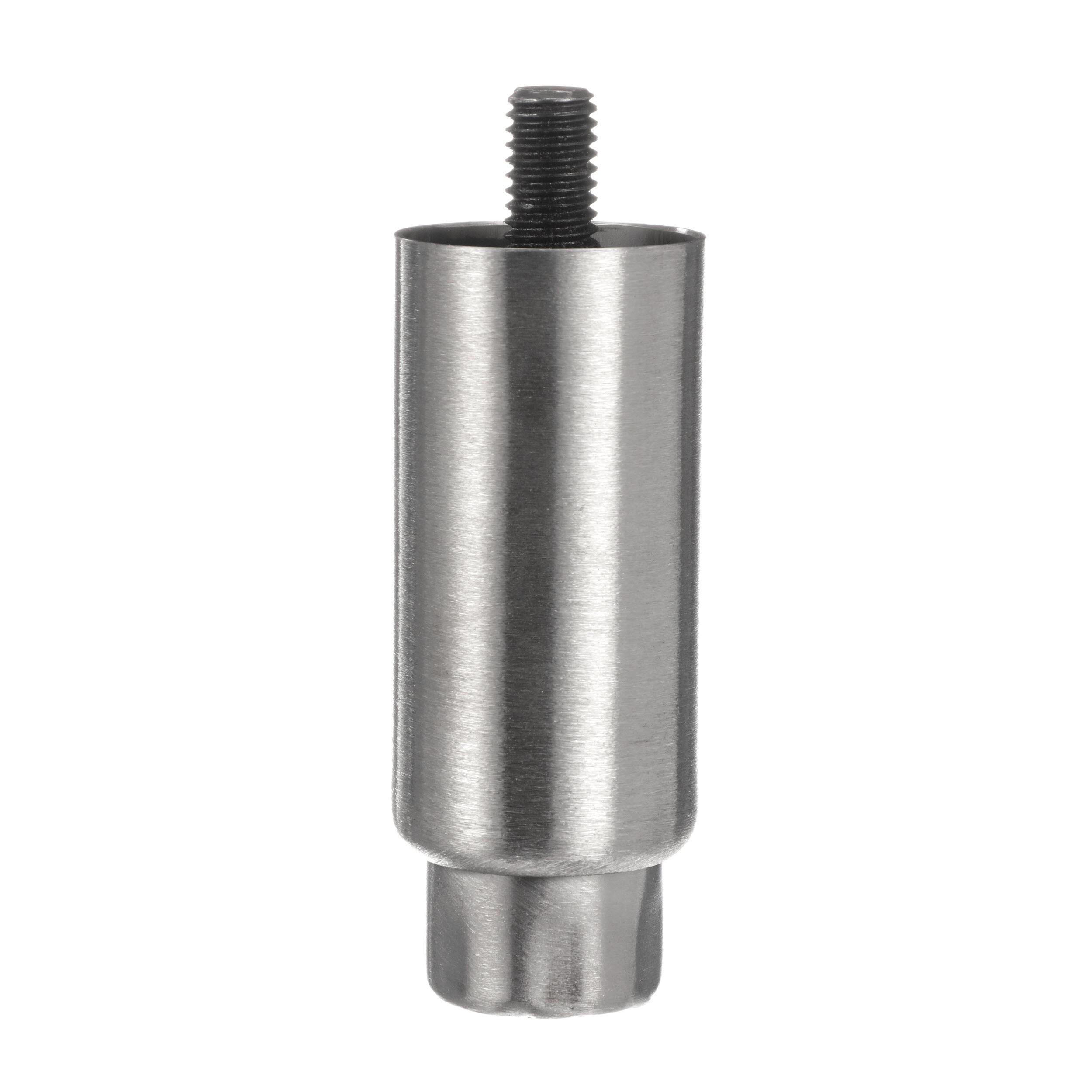

    1-5/8"OD x 4"H Stainless Steel Equipment Leg With 1/2-13 x 3/4"L Protruding Stud And Adjustable Hex Toe

    Be the first to review this product
    • 1-5/8"OD x 4"H Stainless Steel Equipment Leg With 1/2-13 x 3/4"L Protruding Stud And Adjustable Hex Toe
    • 1-5/8"OD 16-gauge stainless steel construction
    • #4 Satin finish
    • 4" OA height in closed position
    • 1/2-13 x 3/4" protruding mounting stud
    • Adjustable hex toe provides up to 1-1/2" adjustment for leveling of equipment
    • 2,000 lbs static load rating
    Model No: A50-5032-C
    Item No.: 1001644

    Related Resources


    SPC-A50-5032-C.pdf
    $0.00
    i h
    Products specifications
    LOAD RATING 2000 LBS
    FINISH / COLOR SATIN
    GAUGE 16 GAUGE
    LEG HEIGHT 4 INCHES
    LEG MOUNTING TYPE PROTRUDE STUD
    TOE TYPE HEX TOE
    LEG THREAD / PLATE / STEM SIZE 000.500-13
    DIAMETER 1.625 INCHES
    MEASUREMENT TYPE IMPERIAL
    PRIMARY MATERIAL STAINLESS STEEL 201
    SECONDARY MATERIAL STEEL
    TUBING SHAPE ROUND
    ADJUSTMENT RANGE 001.500
