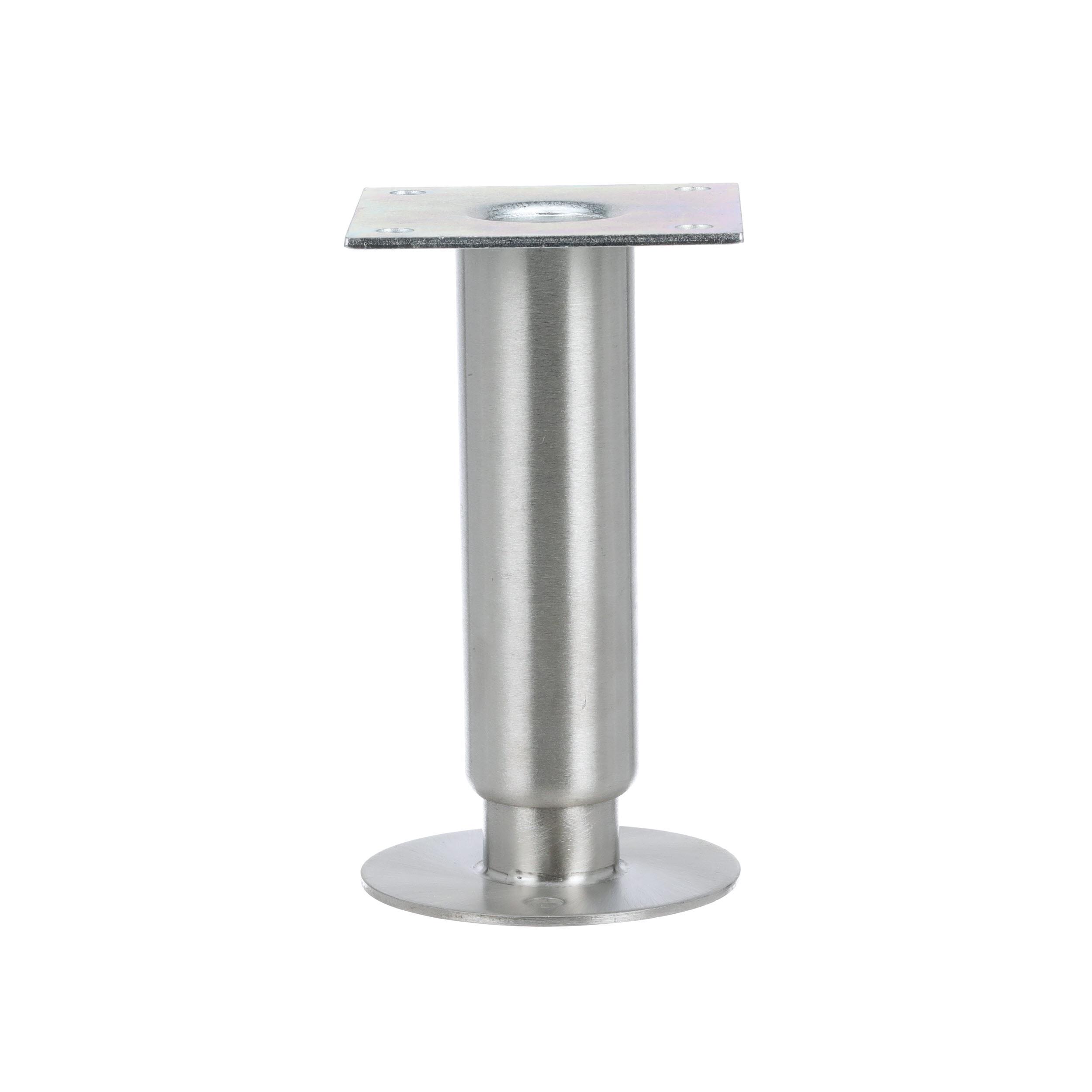

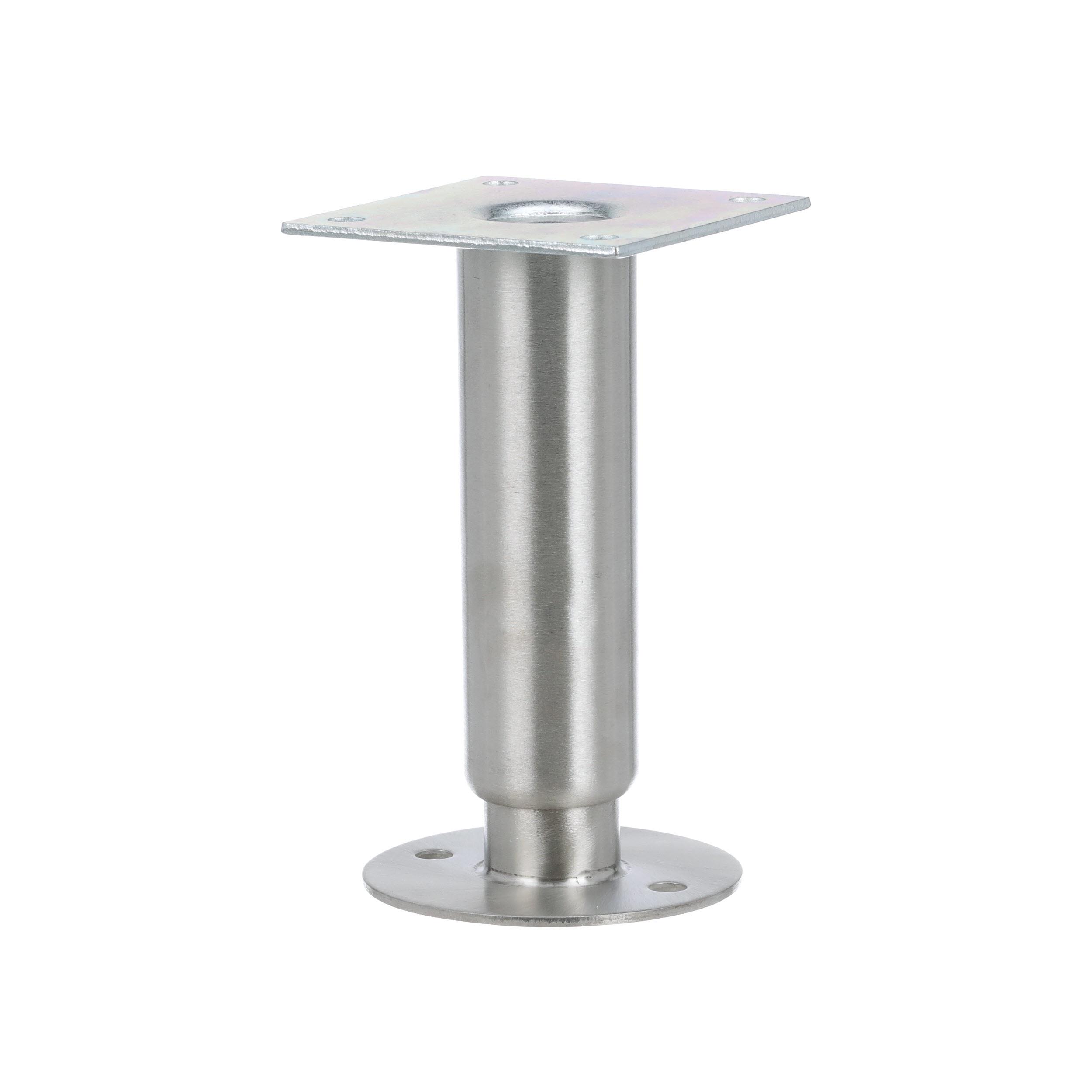

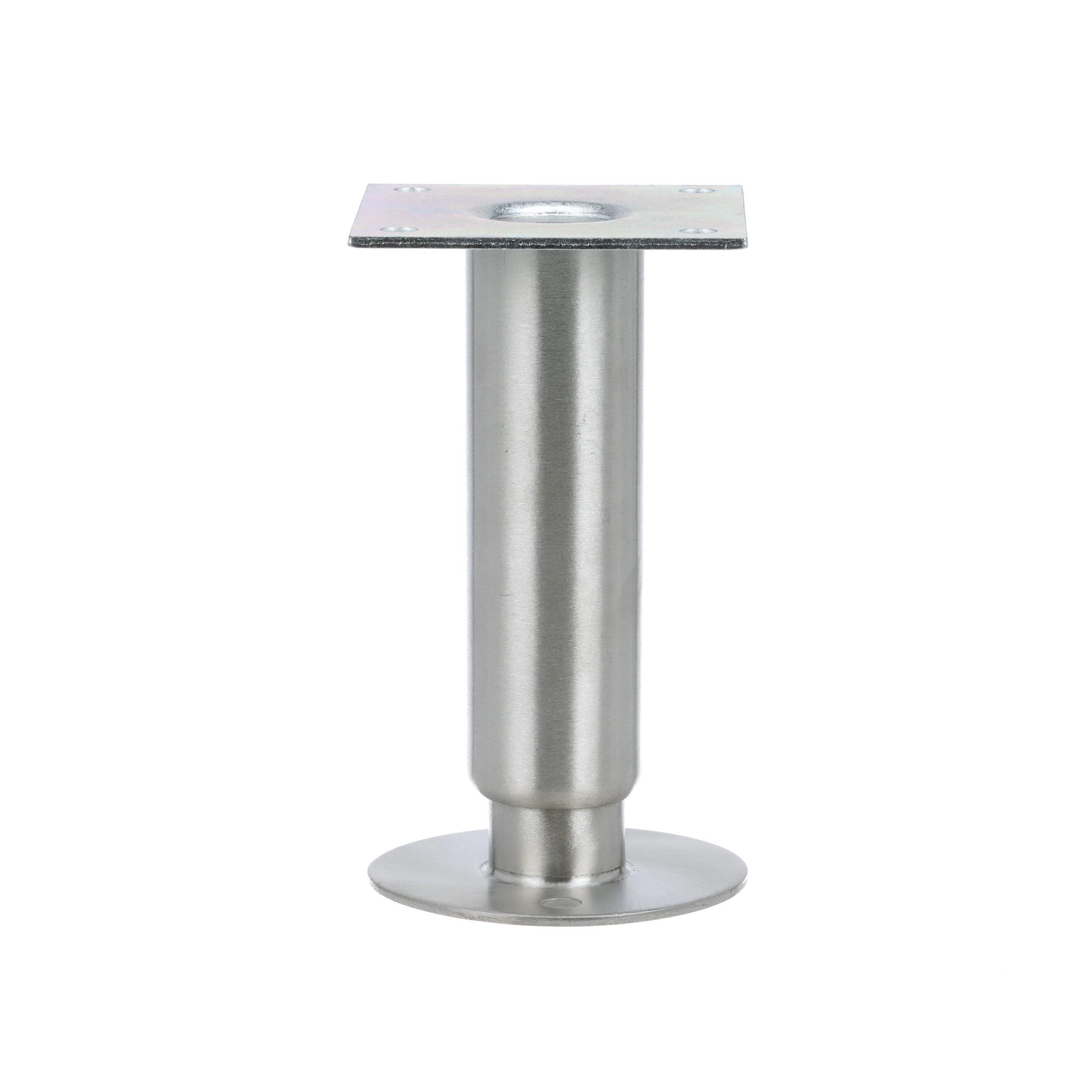

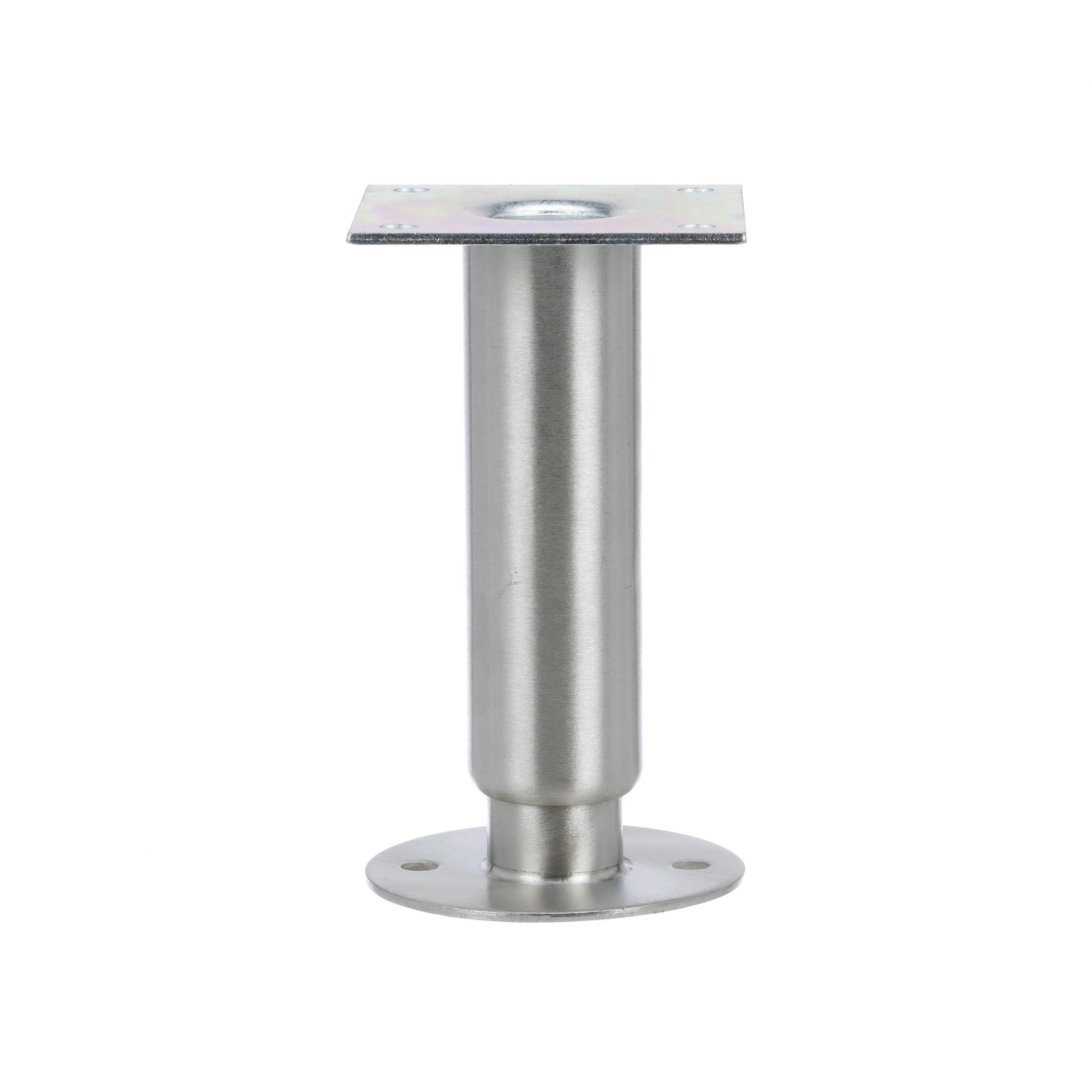

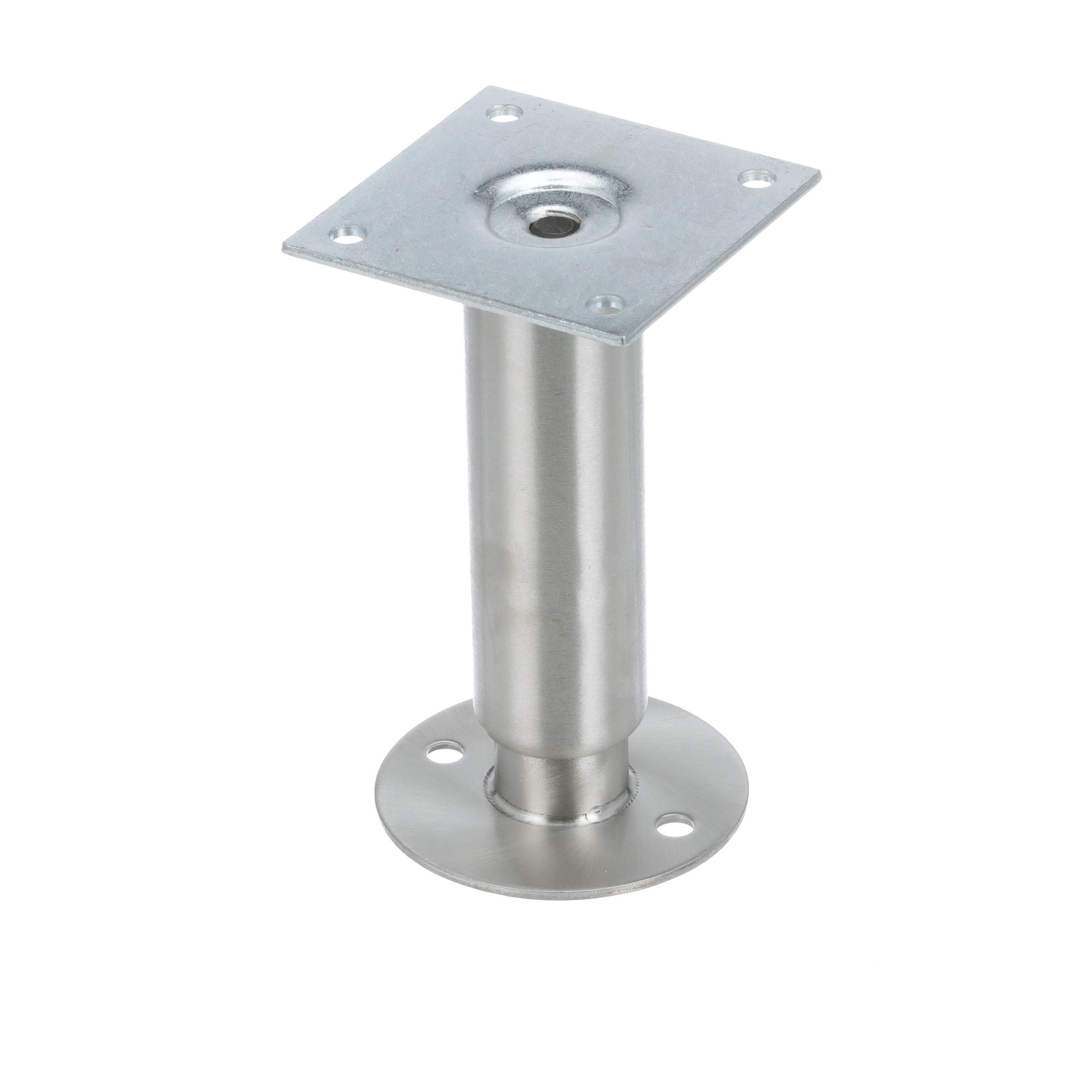

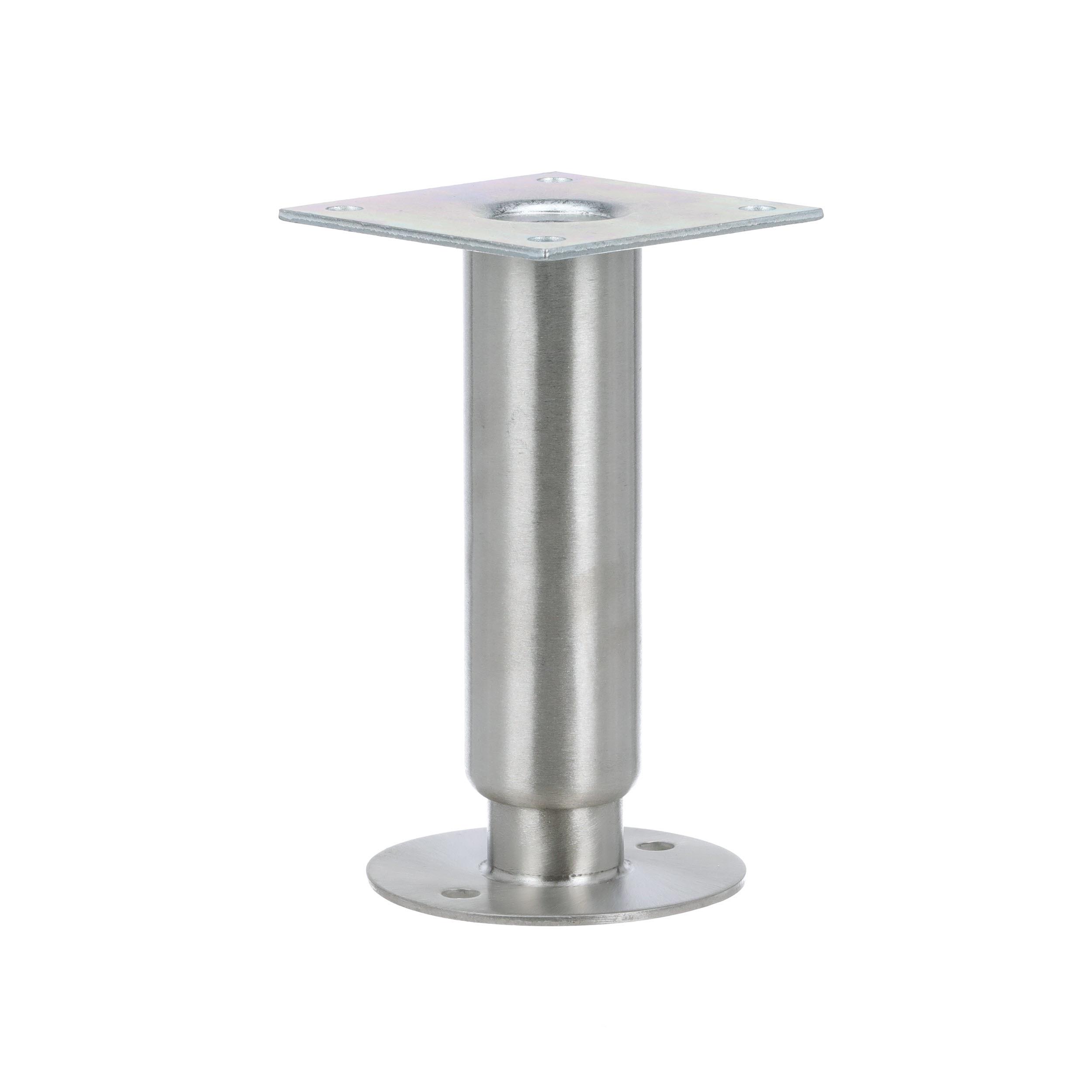

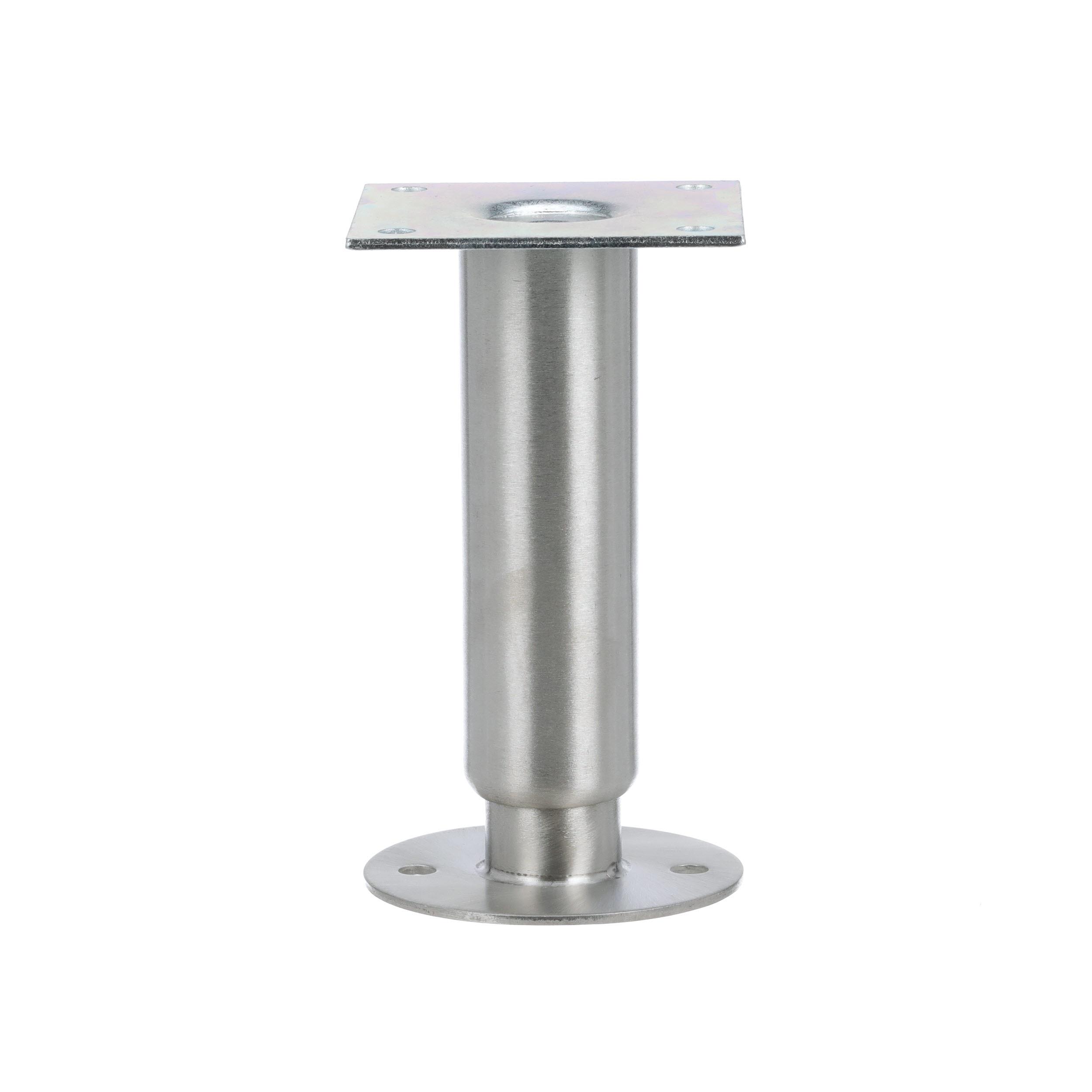

1-5/8"OD x 6"H Stainless Steel Equipment Leg With Removable Mounting Plate And Adjustable Flanged Toe With Holes

1-5/8"OD x 6"H
16-gauge stainless steel construction
#4 Satin finish
6" OA height in closed position

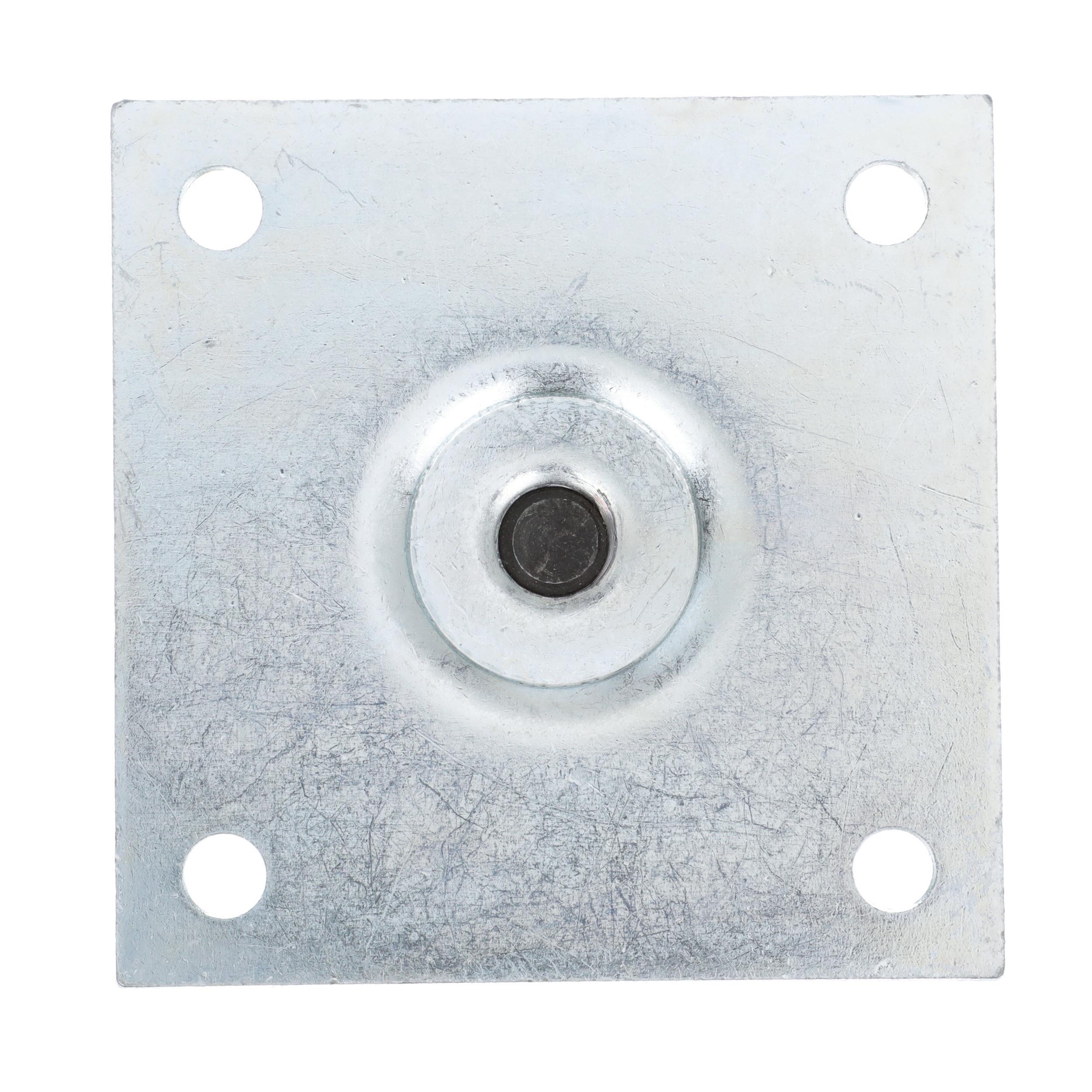

3-1/2" square 11-gauge removable mounting plate with four 5/16" diameter mounting holes on 2-5/8" centers
Adjustable flanged toe provides up to 1-1/2" adjustment for leveling of equipment
3-1/2" OD 12-gauge stainless steel flanged toe with two 11/32" mounting holes spaced 2-1/2" OC permits secure fastening to the floor
2,000 lbs static load rating
Brand: Component Hardware®

Model No: A48-4048-C

Item No.: 1001604

$0.00

Qty:

i h

Products specifications
