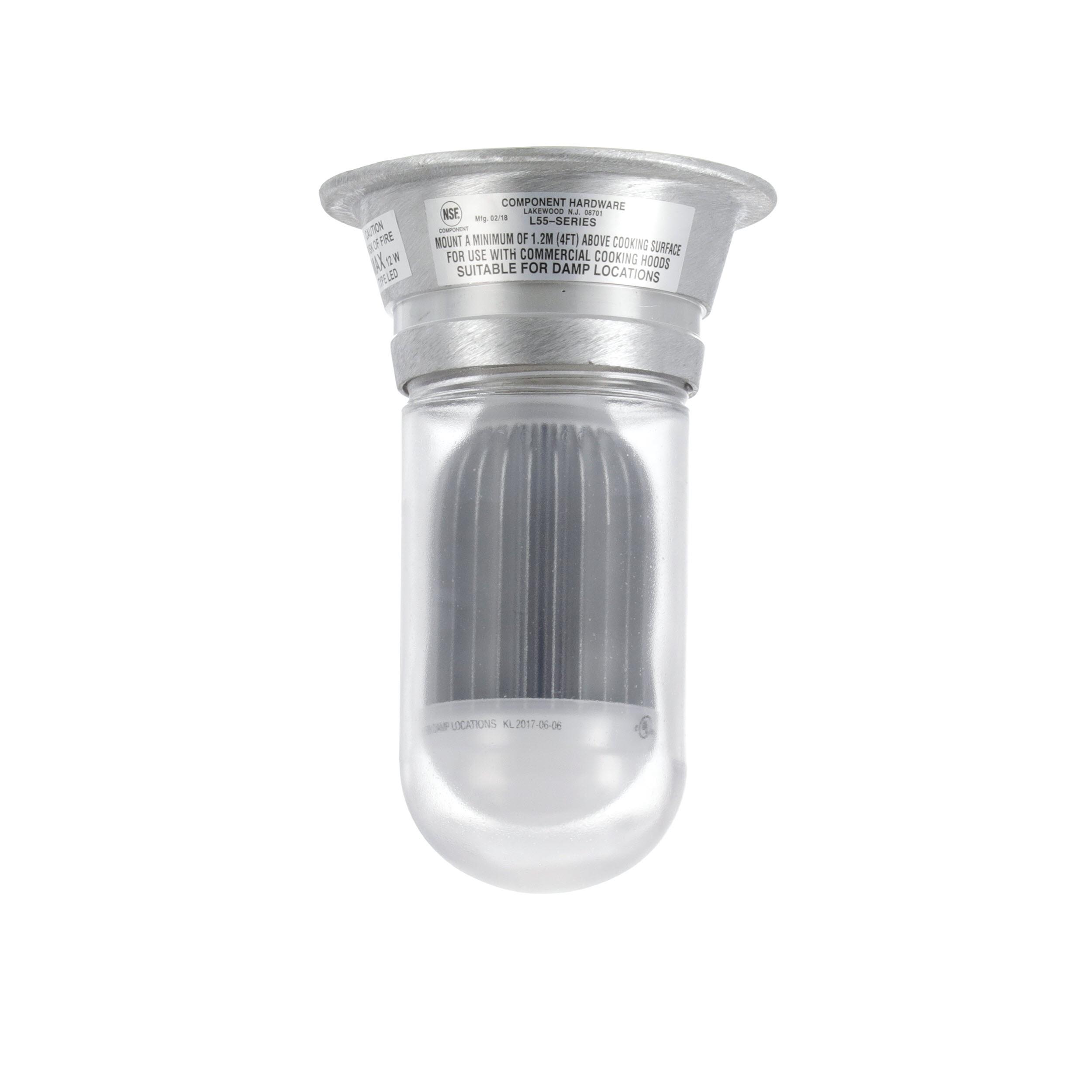

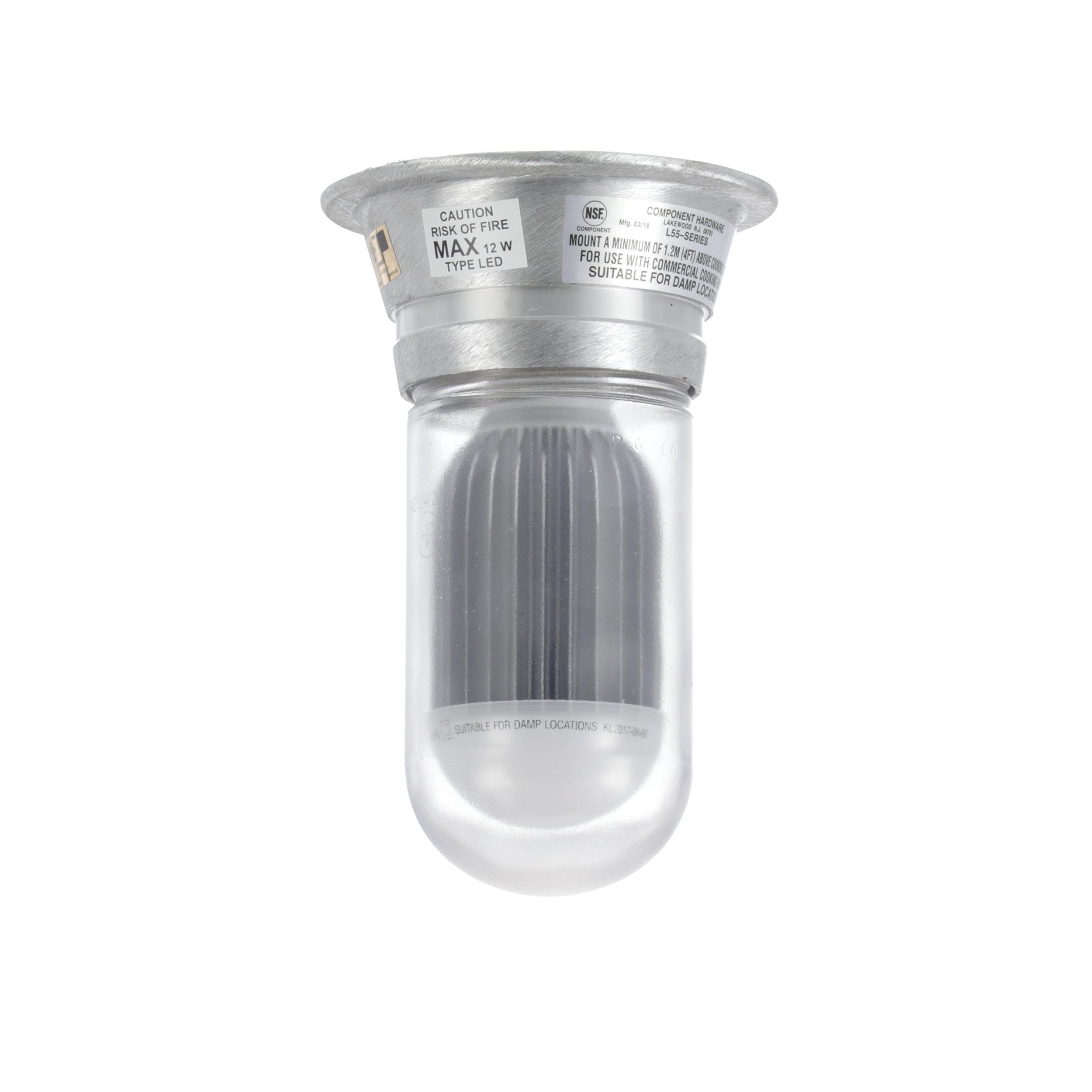

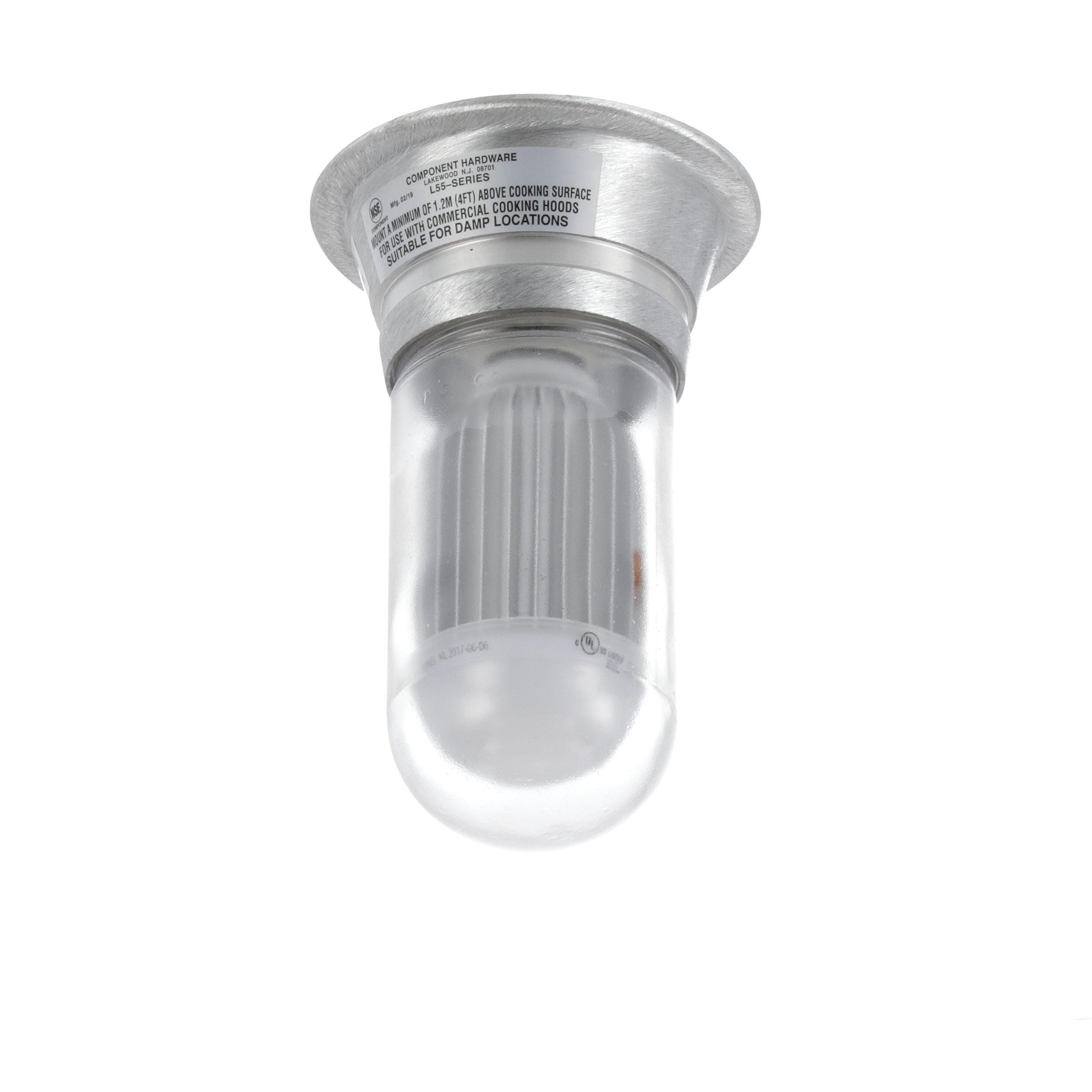

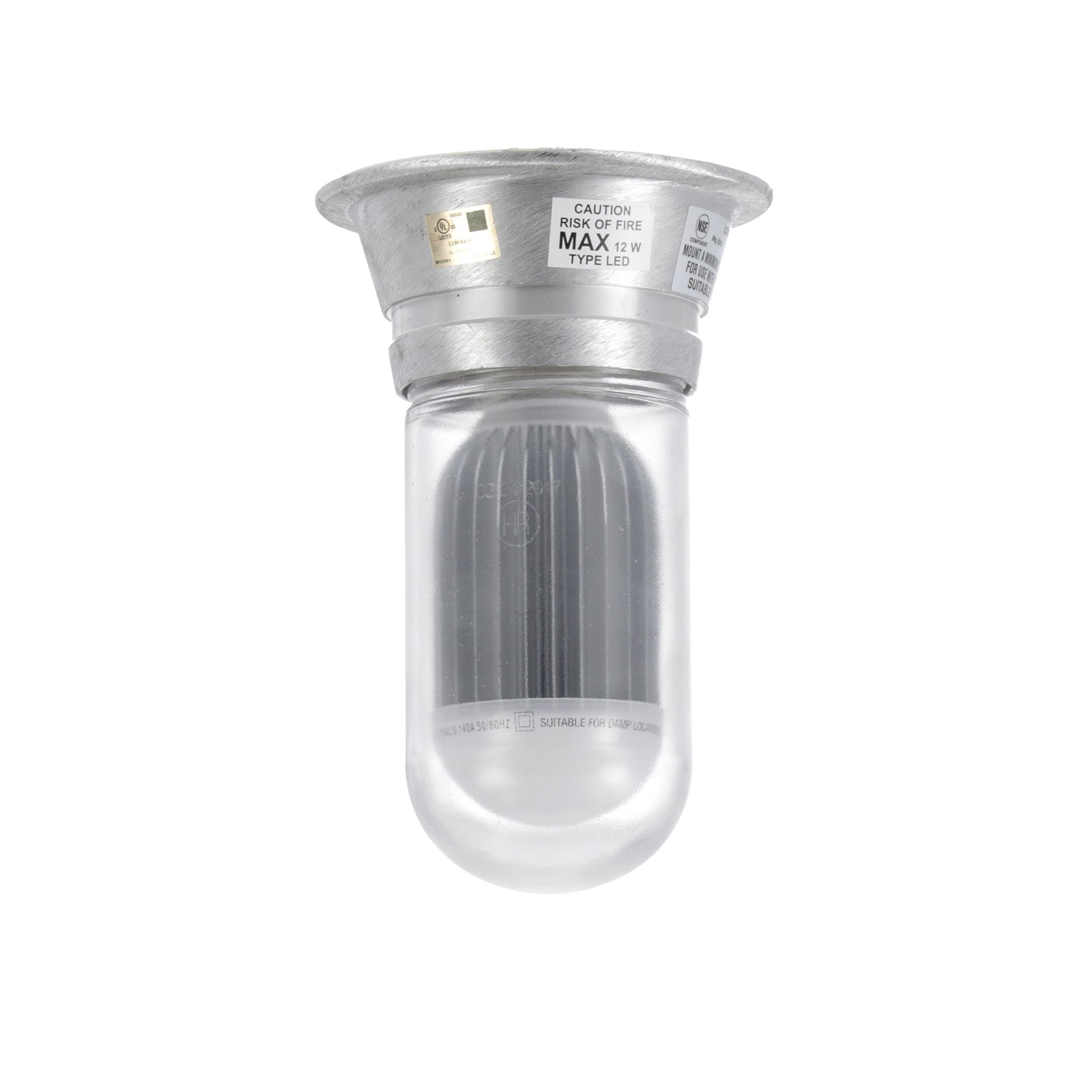

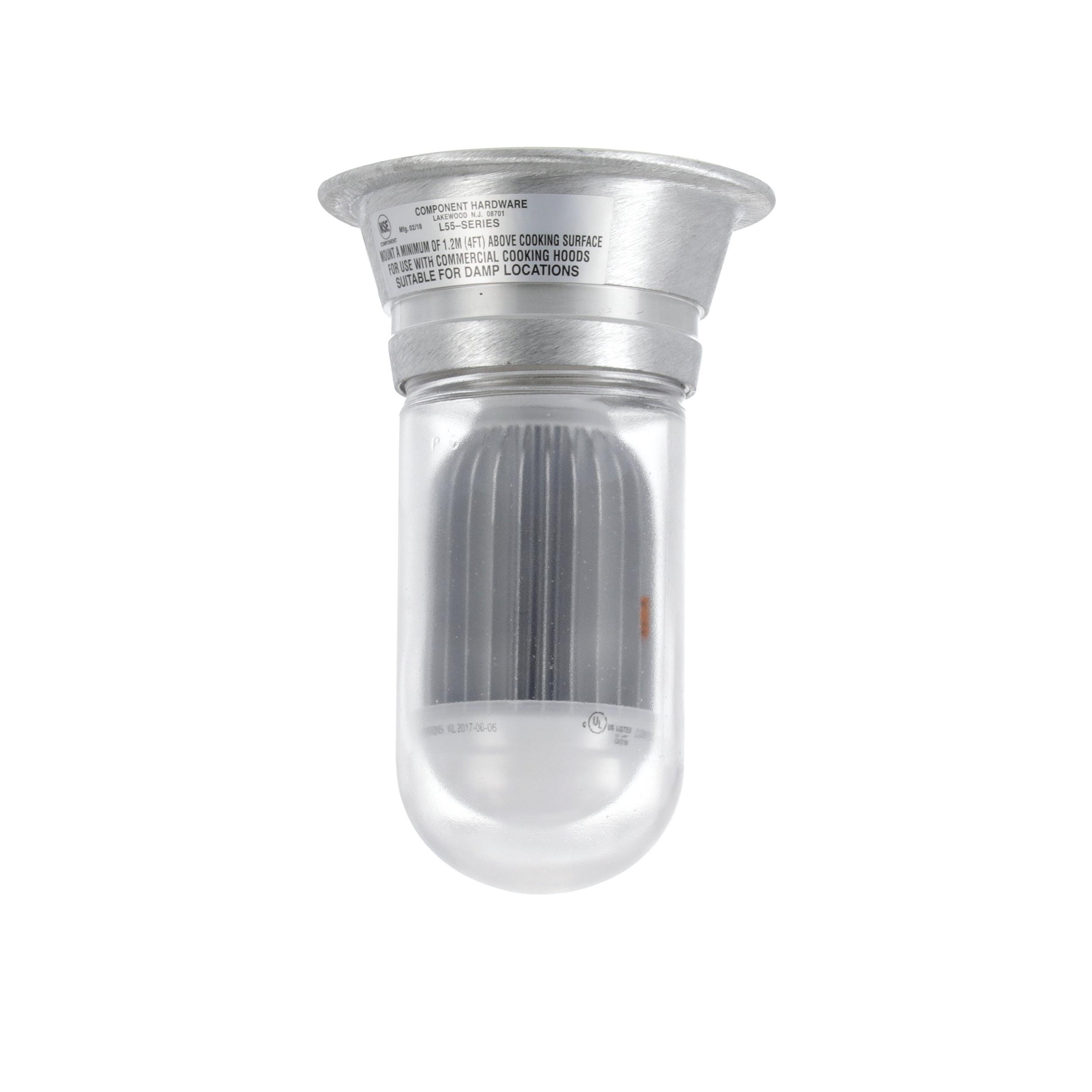

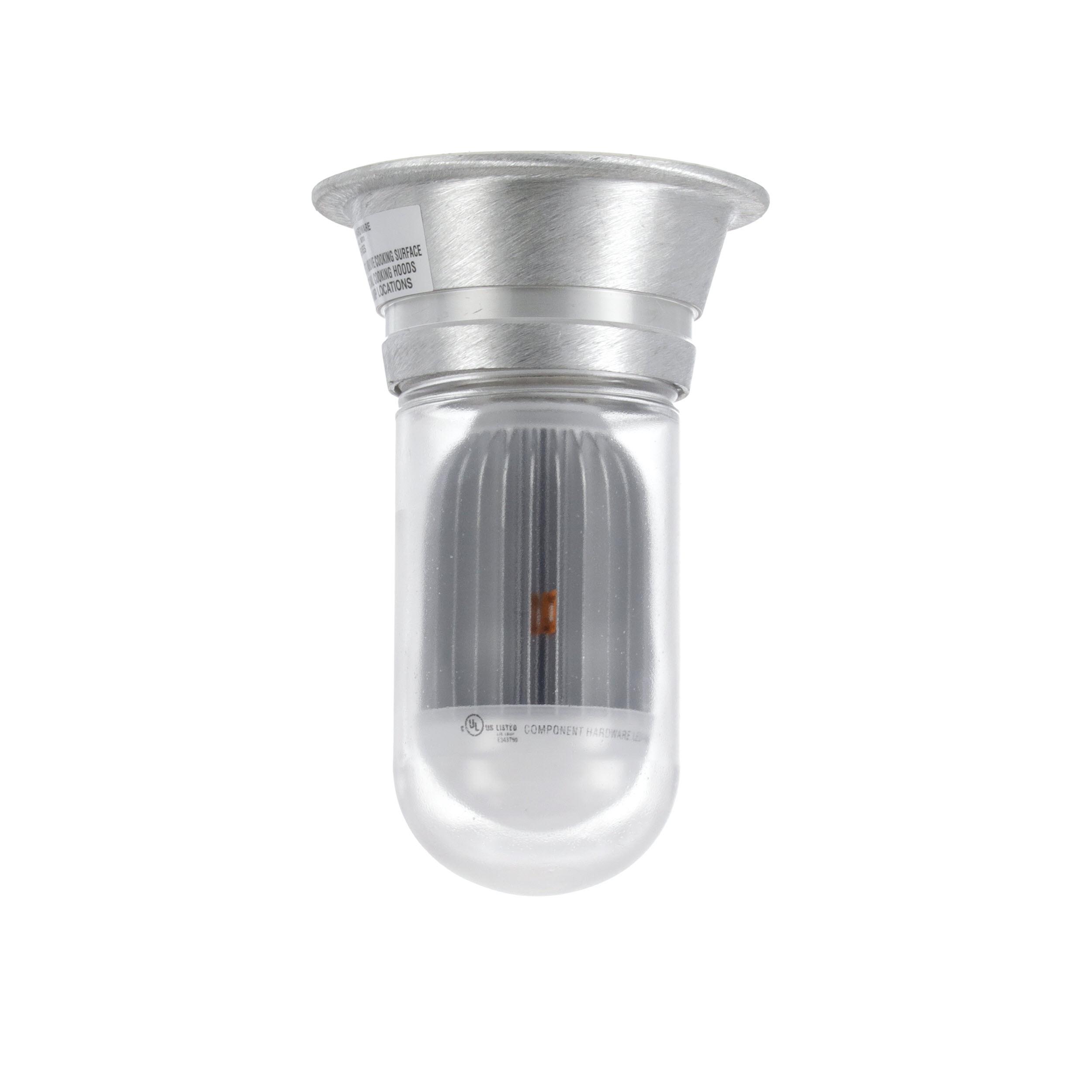

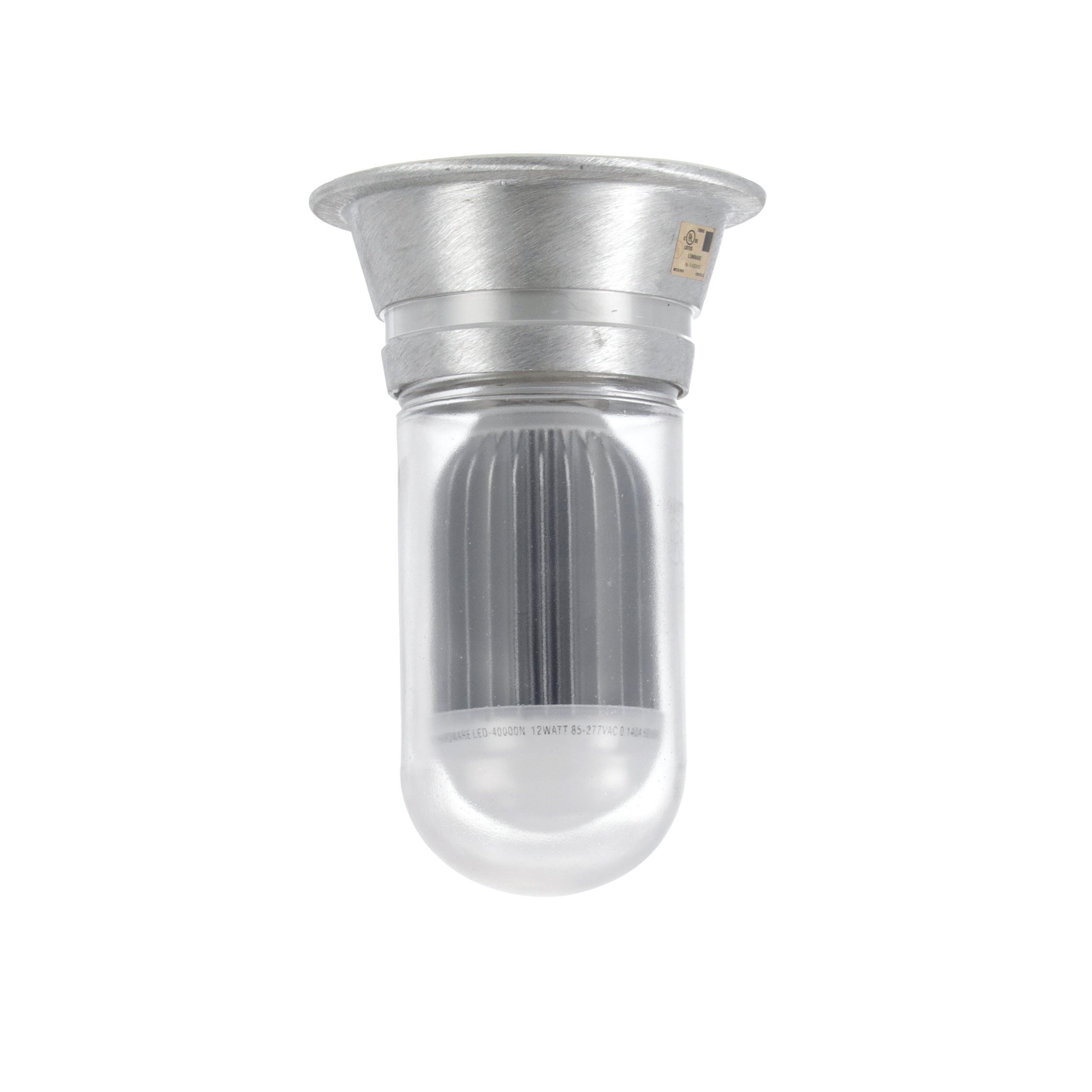

12W Surface Mount Warm White LED Hood Light With Clear Coated Tempered Glass Globe

12W Surface Mount Warm White LED Hood Light With Clear Coated Tempered Glass Globe
Furnished with 12W Warm White LED bulb rated to 176°F (80°C)
Bulb has internal thermal protection switch and unbreakable polycarbonate lens
120-degree beam angle floods workspace with light
930 Lumens light output
Globe furnished with TUFF-SKIN clear plastic coating
Thermal and shock resistant tempered clear glass globe is ideal for commercial kitchens
E-Z Mount Keyhole feature for quick installation
Permanently affixed silicone gaskets speed up installation
Designed for convenient installation into prewired hoods
Greaseproof, waterproof & heatproof
U.L. listed for use in commercial cooking hoods
Meets all requirements for NFPA #96 and N.E.C. 410
Fixture body is die cast aluminum with brushed finish to match stainless steel hood interiors
Porcelain socket body with copper shell
16 awg, 6” (152mm) long wire leads; 18 awg green ground wire
Rated up to 120 VAC, 60 Hz
Overall size - 5-3/8” (136mm) and 8-11/32” (212mm) long
Junction box not furnished. Fixture is designed to accept any standard
3-1/2”(89mm) or 4”(102mm) junction box

Model No: L55-LEDW-1004

Item No.: 1007546
